B&R 8LSA25R0060D000‑0 Synchronous Servo Motor

Technical Specifications

Model:8LSA25R0060D000‑0

Brand:B&R

Product Type:8LS series compact three‑phase synchronous servo motor

Applicable System:Matching with ACOPOSmulti servo drive system,applied for packaging machinery,automated handling,small‑and‑medium multi‑axis compact motion‑control equipment。

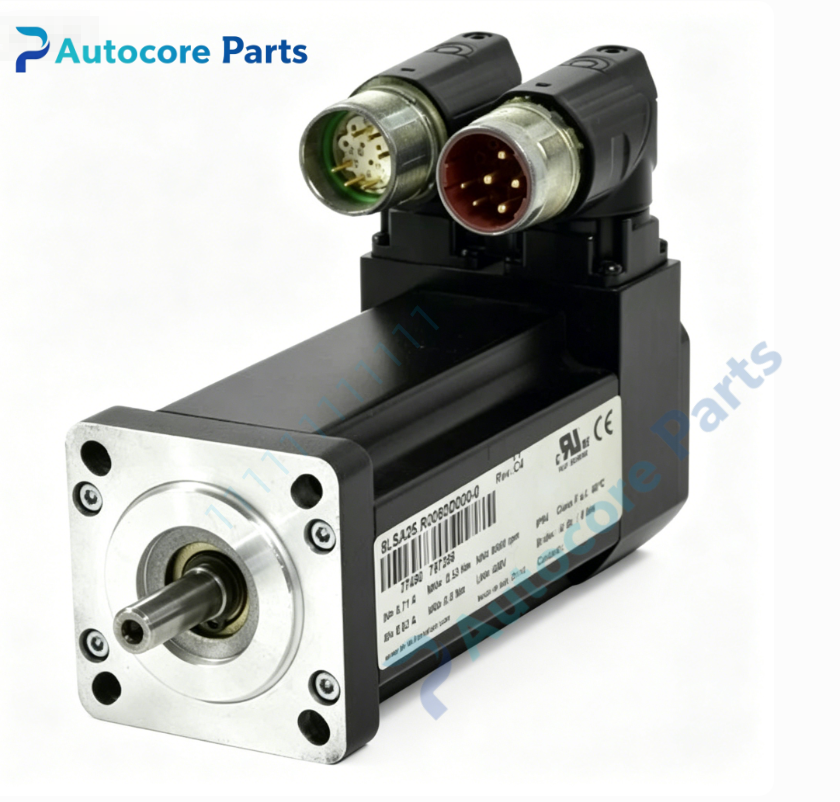

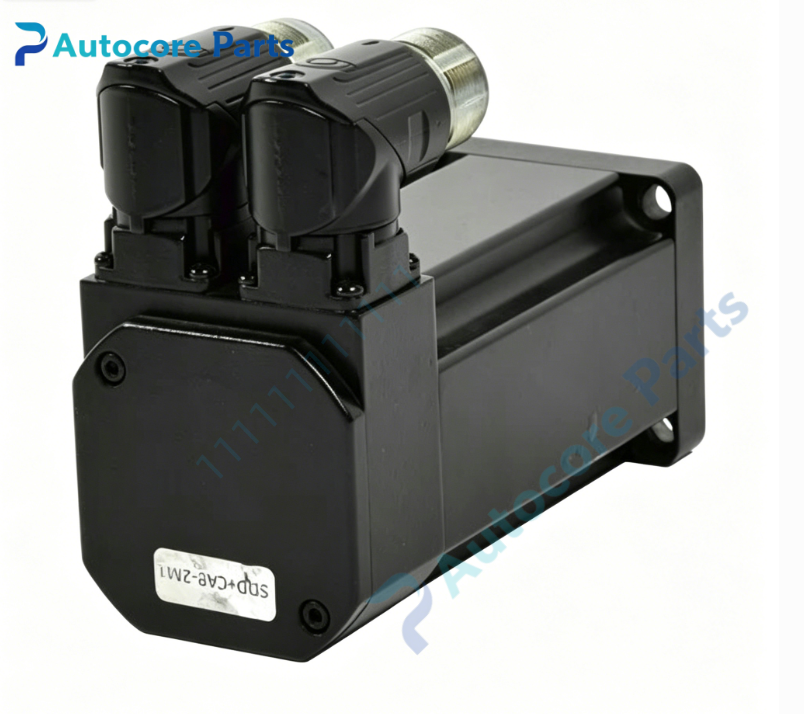

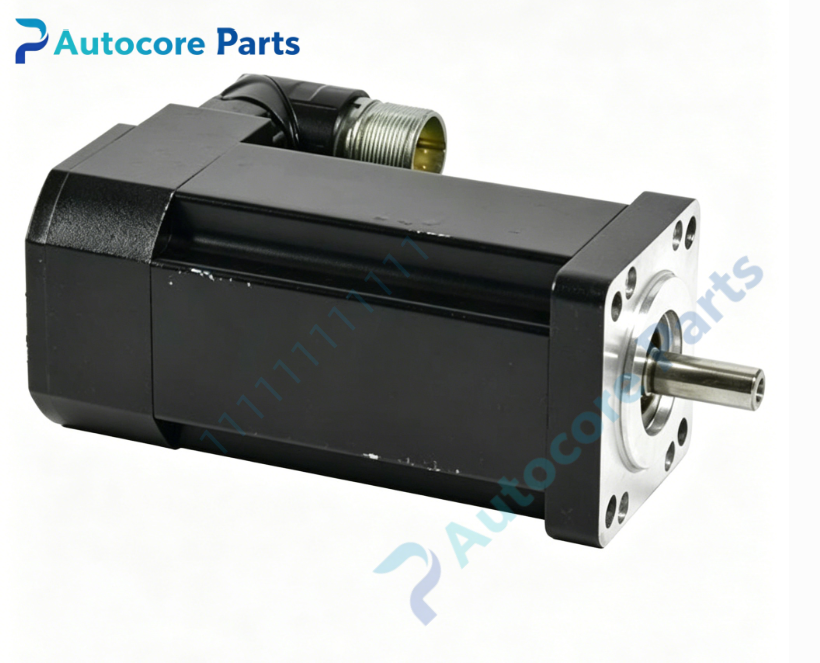

Mechanical Structure:Flange size 58 mm,smooth shaft without keyway,no holding brake;angled swivel rotatable connector;natural self‑cooling;IP65 protection for shaft and connector side。

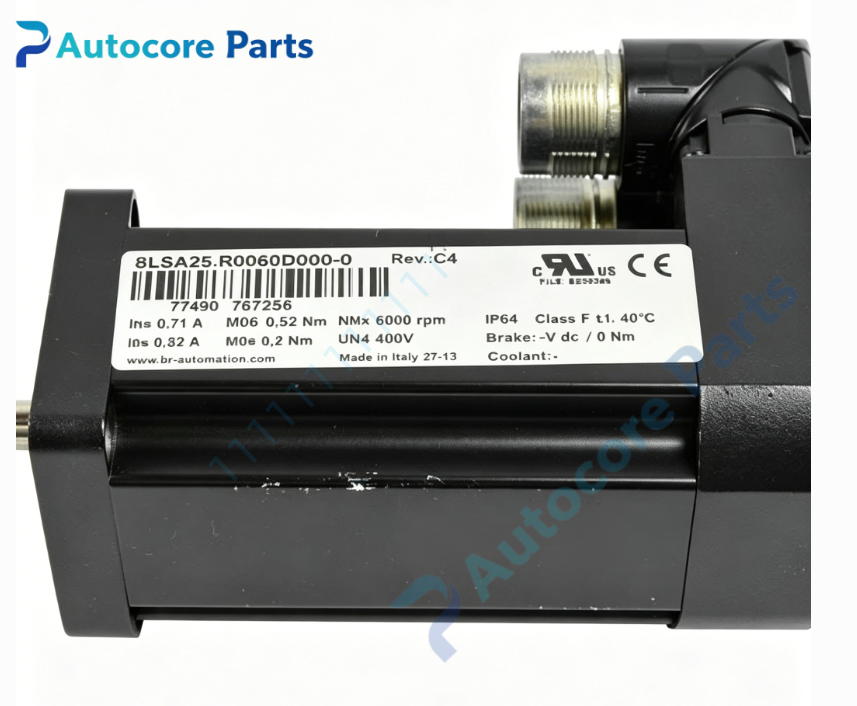

Electrical Rating:Rated power 0.6 kW;rated speed 6000 rpm;continuous torque 0.52 Nm;rated current 0.71 A;equipped with KTY84 winding temperature sensor for over‑temperature protection。

Feedback:Built‑in R0 resolver position feedback,simple and reliable anti‑vibration performance,suitable for harsh industrial workshop environment。

Installation:Flange mounting mode;allow any installation orientation;derating required under high‑altitude working condition.

Weight:1.20 kg

Certification:CE,cULus,UKCA certification

Working temperature:‑20℃ ~ +40℃

Storage temperature:‑25℃ ~ +70℃

Relative humidity:5‑85% non‑condensing,pollution degree 2

Built‑in function:Compact‑frame synchronous servo motor outputs stable torque for high‑speed small‑load motion axis. Resolver feedback provides reliable position signal for servo drive. KTY84 temperature sensor monitors winding real‑time temperature to prevent motor burnout. Angled swivel connector optimizes on‑site wiring layout. IP65 protection adapts normal industrial dust‑proof and splash‑proof requirements. No brake version is suitable for axes without static holding requirement

Product Brief

8LSA25R0060D000‑0 belongs to B&R 8LS compact servo motor family,small‑size and light‑weight design for limited cabinet installation space.

Resolver feedback owns strong anti‑interference capability compared with optical encoder,less sensitive to vibration and dust. Smooth shaft structure suits for coupling direct connection. It cooperates with ACOPOSmulti series inverter modules to realize high‑precision position,speed and torque control for automation equipment.

This is legacy spare part,widely used for maintenance and hardware replacement of original B&R automation equipment. Before purchase,please confirm drive matching,motor torque‑speed requirement and mechanical shaft‑end dimension. ESD protection shall be followed during installation. Power cable and feedback cable sold separately.
