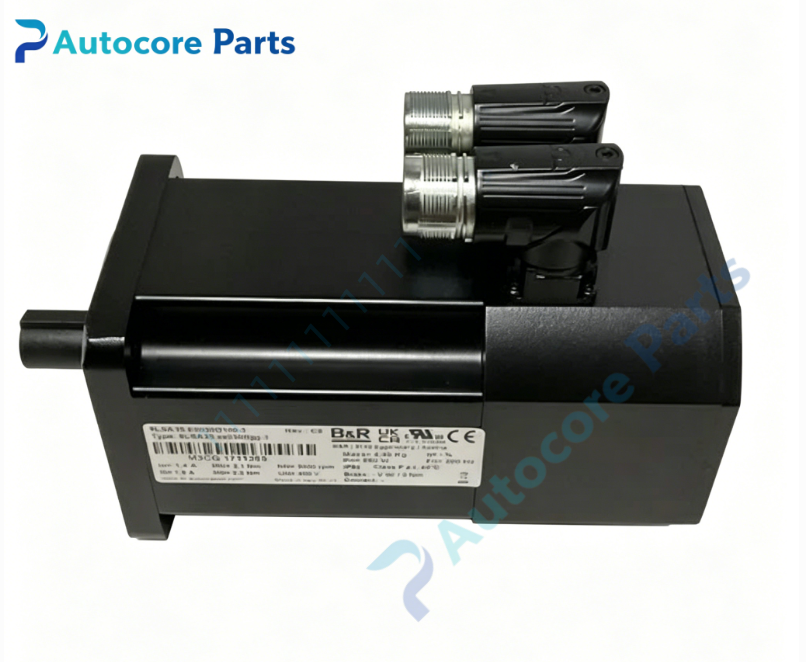

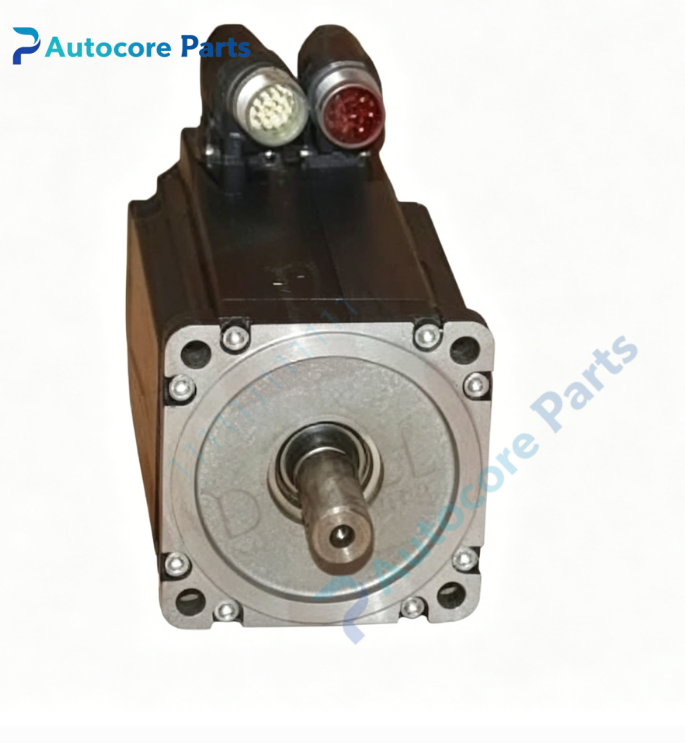

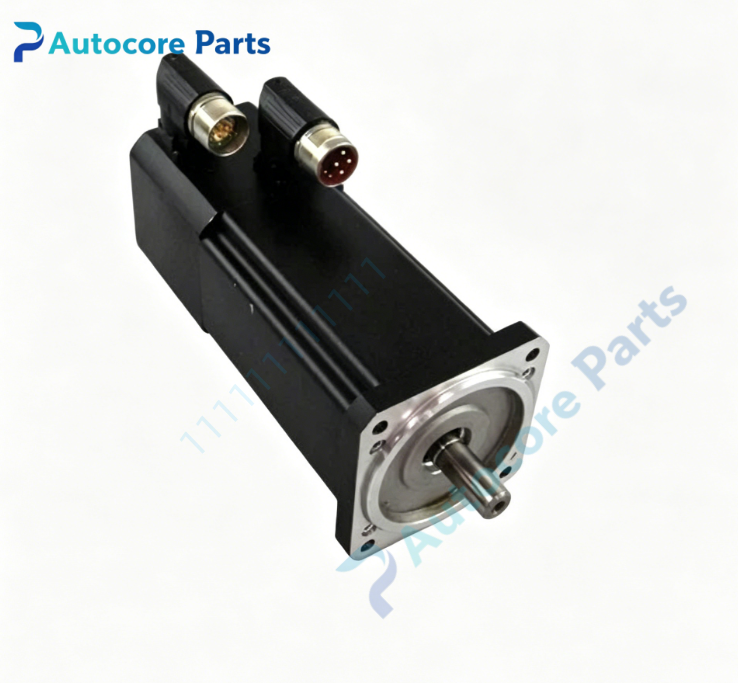

B&R 8LSA35.E0030D100‑3 Synchronous Servo Motor

Technical Specifications

Model:8LSA35.E0030D100‑3

Brand:B&R

Product Type:8LS series medium‑torque three‑phase synchronous servo motor

Applicable System:Matching with ACOPOSmulti servo drive system,applied for packaging machinery,automated assembly,material handling,medium‑load multi‑axis motion‑control production lines requiring static holding function。

Mechanical Structure:Size35 flange,key‑way shaft,built‑in 24VDC holding brake;angled swivel rotatable connector;natural self‑cooling;IP65 protection for shaft and connector side。

Electrical Rating:Rated speed 3000 rpm;EnDat absolute encoder supports drive automatic motor‑parameter read‑in;KTY84 winding temperature‑sensor for over‑temperature monitoring;brake works under 24VDC power supply for shaft static holding when power‑off。

Feedback:E‑interface EnDat absolute encoder,no need for zero‑point return after power‑on,realizes automatic motor identification on ACOPOSmulti drives,anti‑interference performance for industrial site。

Installation:Flange mounting mode,allow any installation orientation;power and torque derating required above 500 m altitude。

Certification:CE,cULus,UKCA certification

Working temperature:‑20℃ ~ +40℃

Storage temperature:‑25℃ ~ +70℃

Relative humidity:5‑85% non‑condensing,pollution degree 2

Built‑in function:Medium‑torque synchronous servo motor delivers stable output torque for medium‑load automation axes. EnDat absolute encoder saves homing procedure during equipment startup. Built‑in holding brake locks motor shaft under power‑off condition,prevents axis slipping for vertical‑axis applications. KTY84 sensor monitors winding temperature to avoid motor overheat damage. Angled swivel connector optimizes cabinet wiring layout. IP65 protection adapts factory dust‑proof and splash‑proof working environment.

Product Brief

8LSA35.E0030D100‑3 belongs to B&R 8LS‑series servo motor family. It adopts EnDat absolute feedback plus integrated holding‑brake configuration,suitable for vertical axes and occasions requiring position retention after power failure.

EnDat encoder can transmit motor nameplate parameters to servo drive automatically,shortens on‑site commissioning time. Key‑way shaft is convenient for coupling and pulley installation. Cooperates with ACOPOSmulti series inverter modules to realize high‑precision position,speed and torque control.

This is legacy spare part,widely used for maintenance and hardware replacement of original B&R automation equipment. Before purchase,please confirm drive matching,torque‑speed demand and mechanical shaft‑end dimension. ESD protection shall be followed during installation. Power cable and feedback cable sold separately
