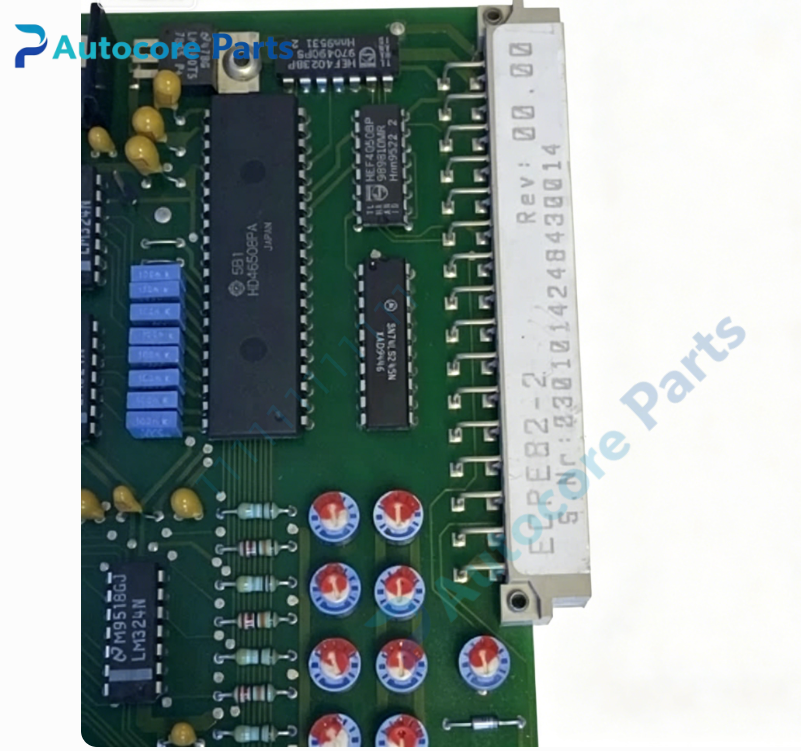

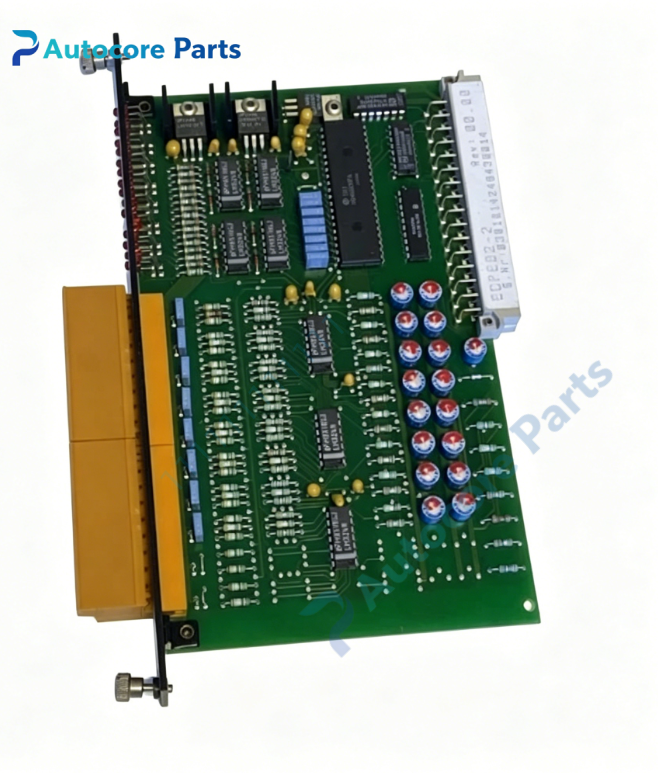

B&R ECPE82‑2 Analog Input Module

Technical Specifications

Model:ECPE82‑2

Brand:B&R

Product Type:MULTI‑CONTROL rack series analog input module

Applicable System:B&R Midi‑Multi‑Control rack system,applied for early‑generation packaging machinery,process equipment for pressure,flow and transmitter analog signal acquisition

Channel Quantity:8 independent analog input channels

Input Range:0‑20mA current,0‑10V voltage

Resolution:10‑bit

Conversion Time:100µs per channel

Accuracy:±0.3% @20℃

Input Resistance:400kΩ differential

Isolation:without galvanic isolation

Power Consumption:0.7W

Installation:Install in MULTI‑CONTROL rack slot

Degree of protection:IP20

Certification:CE,UL

Working temperature:0℃ ~ +55℃

Storage temperature:‑25℃ ~ +70℃

Relative humidity:5‑85% non‑condensing,pollution degree 2

Built‑in function:Rack‑mounted analog input module collects field transmitter voltage and current analog signals and converts to digital bus data for CPU processing. Fast single‑channel conversion time supports real‑time process signal sampling. On‑board LED indicators facilitate on‑site fault diagnosis,note that this module has no galvanic isolation,external isolation measures shall be adopted under severe interference environment

Product Brief

ECPE82‑2 belongs to B&R MULTI‑CONTROL old‑generation I/O family,it is discontinued legacy spare part for early rack‑based automation system. It provides 8‑channel analog input for pressure and flow transmitter signal acquisition. Widely used for original B&R old‑equipment maintenance and renovation. Before purchase,please confirm rack hardware version and slot compatibility requirement. ESD anti‑static protection shall be followed during installation,pay attention to field anti‑interference wiring requirement without internal isolation
