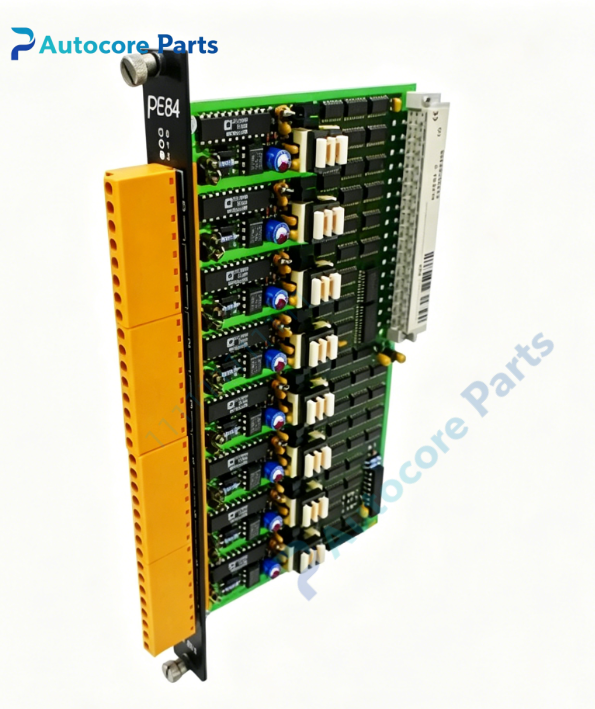

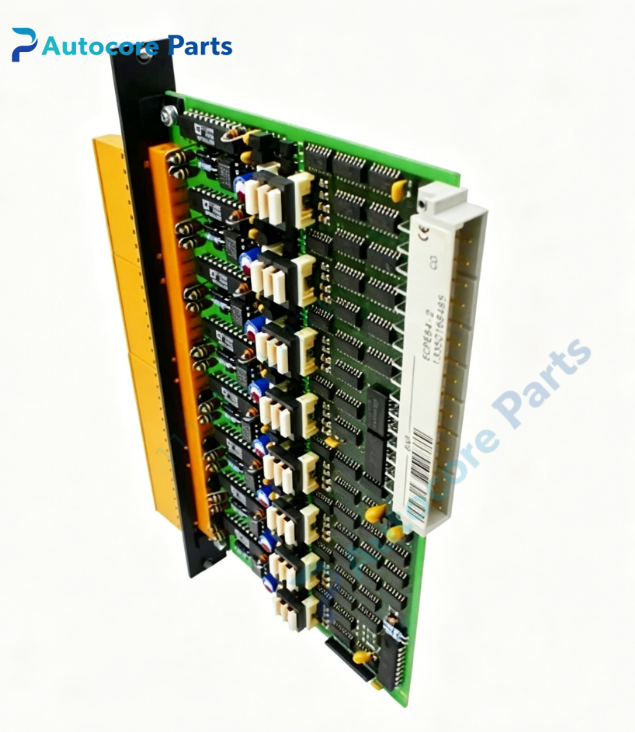

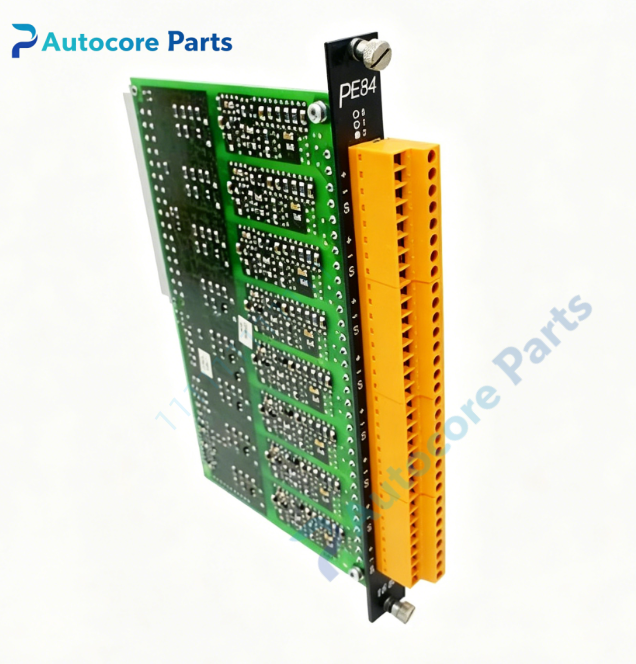

B&R ECPE84‑2 Analog Input Module

Technical Specifications

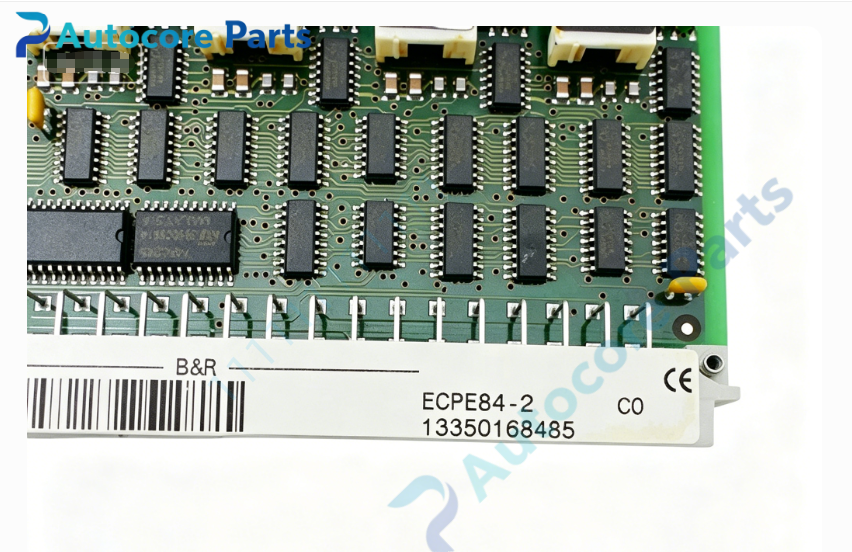

Model:ECPE84‑2

Brand:B&R

Product Type:MULTI‑CONTROL rack series high‑precision analog input module

Applicable System:B&R Midi‑Multi‑Control rack system,applied for early‑generation process equipment,heating furnaces,packaging machinery for pressure,flow and transmitter signal acquisition

Channel Quantity:8 independent analog input channels

Input Range:0‑25mA current,suitable for standard 4‑20mA field transmitters

Resolution:15‑bit

Full‑channel Update Time:3.9ms ~ 6.3ms

Input Filter:6Hz cutoff frequency

Isolation:Galvanic isolation between each channel and backplane bus

Calibration Time:0.7‑1.1s

Installation:Install in MULTI‑CONTROL rack slot

Indicator:On‑board channel status LED for fault diagnosis

Degree of protection:IP20

Certification:CE,UL

Working temperature:0℃ ~ +55℃

Storage temperature:‑25℃ ~ +70℃

Relative humidity:5‑85% non‑condensing,pollution degree 2

Built‑in function:Rack‑mounted high‑precision analog input module collects field current‑loop transmitter signals and converts to digital bus data for CPU processing. Independent galvanic isolation for each channel greatly improves anti‑interference performance in complex industrial sites. Built‑in hardware filter suppresses high‑frequency noise,LED indicators support fast channel fault location during equipment maintenance

Product Brief

ECPE84‑2 belongs to B&R MULTI‑CONTROL old‑generation I/O family,it is discontinued legacy spare part,different from non‑isolated ECPE82‑2 module. It provides 8‑channel isolated high‑precision current signal acquisition. Widely used for original B&R old‑equipment maintenance and renovation. Before purchase,please confirm rack hardware version and slot compatibility requirement. ESD anti‑static protection shall be followed during installation
