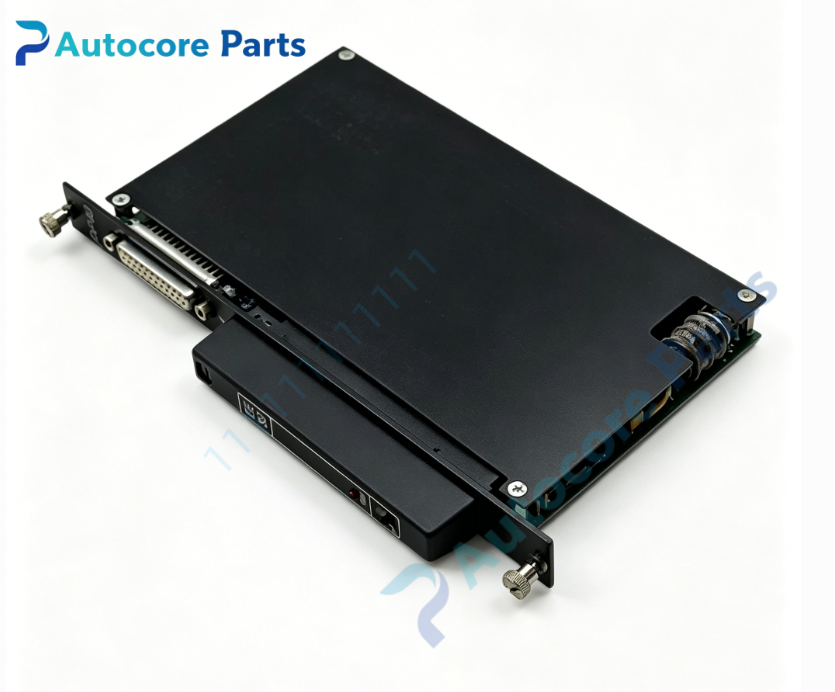

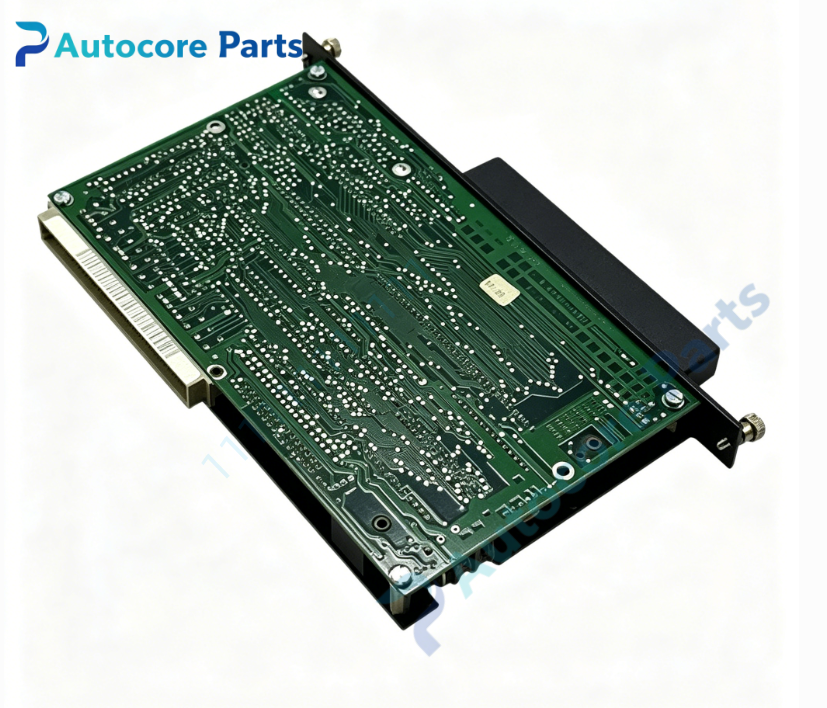

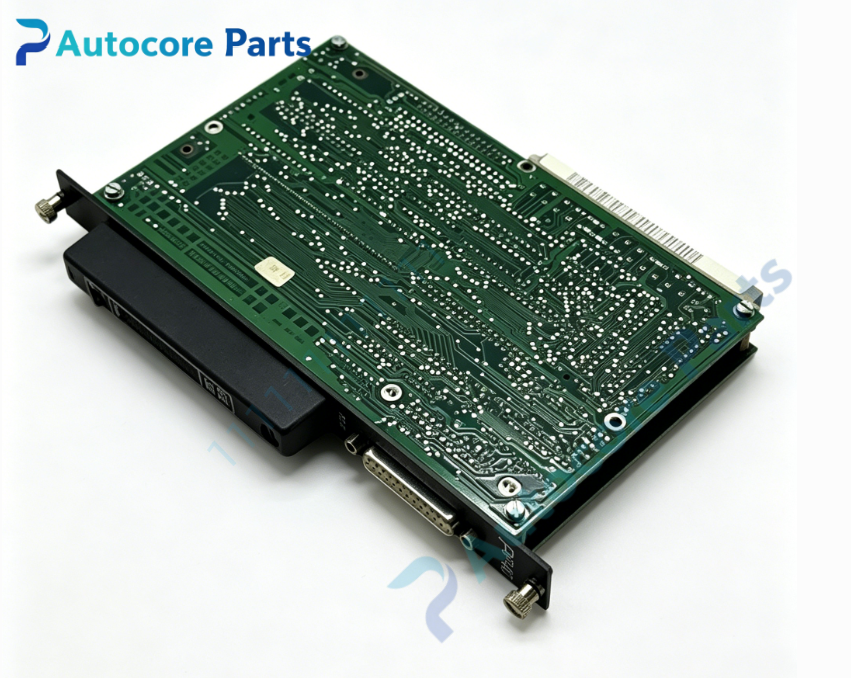

B&R ECPP40‑01 Parallel Processor Module

Technical Specifications

Model:ECPP40‑01

Brand:B&R

Product Type:MULTI‑CONTROL rack Type‑A parallel processor module

Applicable System:B&R Midi‑Multi‑Control rack system,applied for early‑generation packaging machinery,process automation equipment for multitasking parallel logic processing and motion calculation

Memory:16KB EEPROM,16KB SRAM,approx 4.7KB user program instructions

Communication Interface:1 x electrically isolated TTY online interface,1 x RS232/TTY hybrid interface

Installation:Install in dedicated slot of Midi‑Multi‑Control rack

Indicator:On‑board status LED for hardware diagnosis

Degree of protection:IP20

Certification:CE,UL

Working temperature:0℃ ~ +55℃

Storage temperature:‑25℃ ~ +70℃

Relative humidity:5‑85% non‑condensing,pollution degree 2

Built‑in function:Rack‑mounted parallel processor executes multitasking user application programs,undertakes high‑speed logic and motion calculation tasks to reduce main‑CPU load. Isolated TTY / RS232 interface supports online programming,debugging and parameter upload‑download. EEPROM stores non‑volatile application program,SRAM handles runtime variable data. Status LED facilitates quick hardware fault location during site maintenance

Product Brief

ECPP40‑01 belongs to B&R MULTI‑CONTROL old‑generation system family,it is discontinued legacy Type‑A parallel processor for Midi‑Multi‑Control rack. It can work independently or cooperate with main CPU for parallel task processing. Widely used for original B&R old‑equipment maintenance and renovation. Before purchase,please confirm rack hardware version and slot compatibility requirement. ESD anti‑static protection shall be followed during installation
