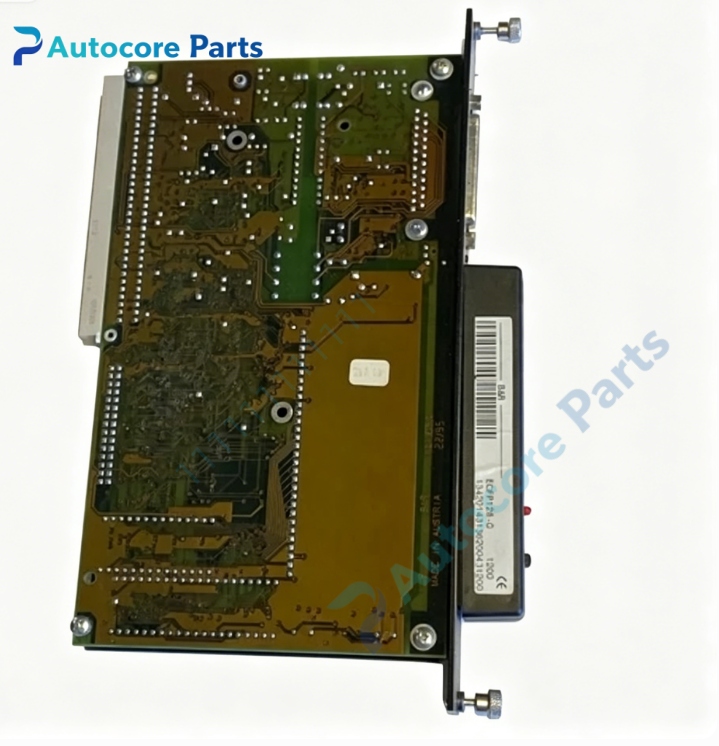

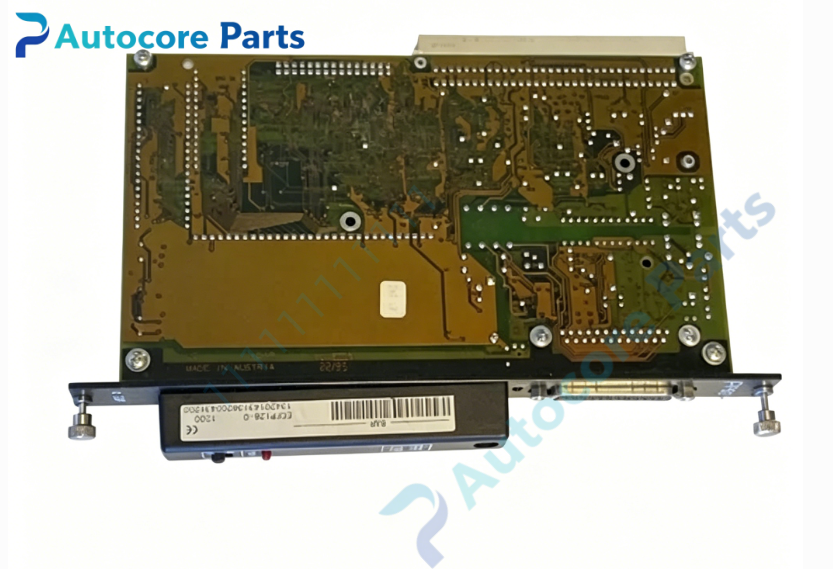

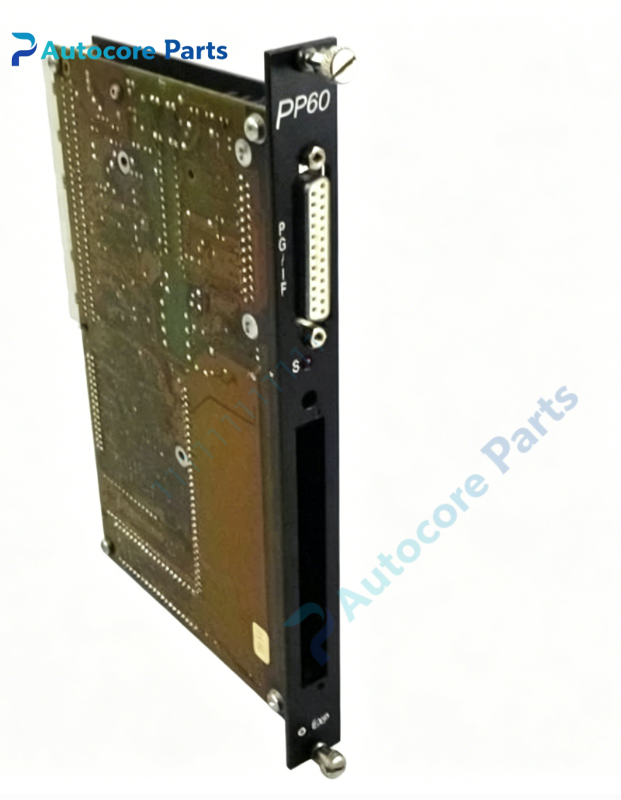

B&R ECPP60‑01 Parallel Processor Module

Technical Specifications

Model:ECPP60‑01

Brand:B&R

Product Type:MULTI‑CONTROL rack Type‑B parallel processor module

Applicable System:B&R MULTI / MIDI / M264 rack system,applied for early‑generation packaging machinery,process automation equipment for multitasking parallel logic and motion calculation

Memory:42KB SRAM,PROM application memory module must be ordered separately

Communication Interface:1 x isolated TTY online receiver;1 x composite RS485/RS232/TTY port;RS485 with galvanic isolation,RS232 without isolation

Baud Rate:max 19.2kBaud

Power Consumption:7W @8V,1.5W @15V

Installation:Install in dedicated slot of MULTI‑MIDI rack

Indicator:On‑board status LED for hardware fault diagnosis

Degree of protection:IP20

Certification:CE,UL

Working temperature:0℃ ~ +55℃

Storage temperature:‑25℃ ~ +70℃

Relative humidity:5‑85% non‑condensing,pollution degree 2

Built‑in function:Rack‑mounted Type‑B parallel processor undertakes independent multitasking control and motion computing to reduce main CPU operating load. Multiple configurable serial interfaces support program downloading,on‑site debugging and upper‑computer communication. SRAM stores runtime data,user application program needs external PROM memory module. Status LED helps maintenance personnel quickly locate hardware faults

Product Brief

ECPP60‑01 belongs to B&R MULTI‑CONTROL old‑generation system family,it is discontinued legacy Type‑B parallel processor for MULTI/MIDI rack. It cannot store user program independently and must cooperate with matching PROM memory module. Widely used for original B&R old‑equipment maintenance and renovation. Before purchase,please confirm rack hardware version and slot compatibility requirement. ESD anti‑static protection shall be followed during installation
