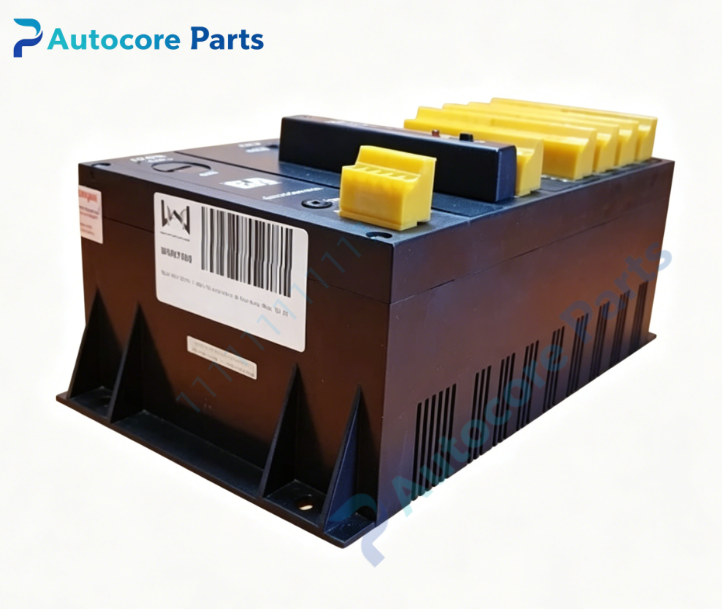

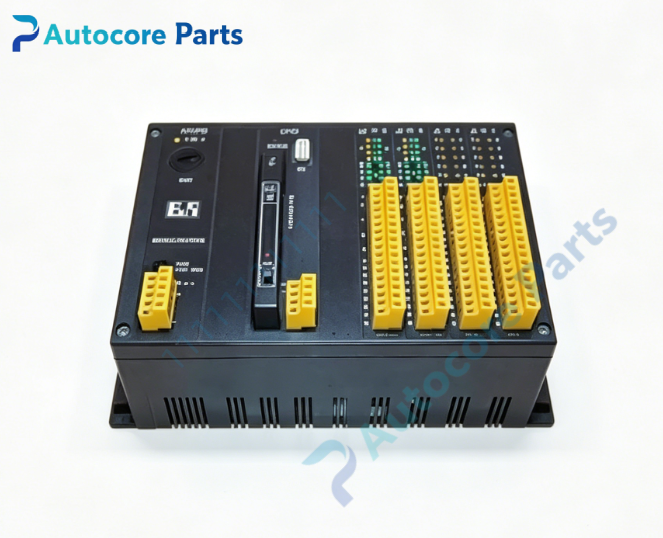

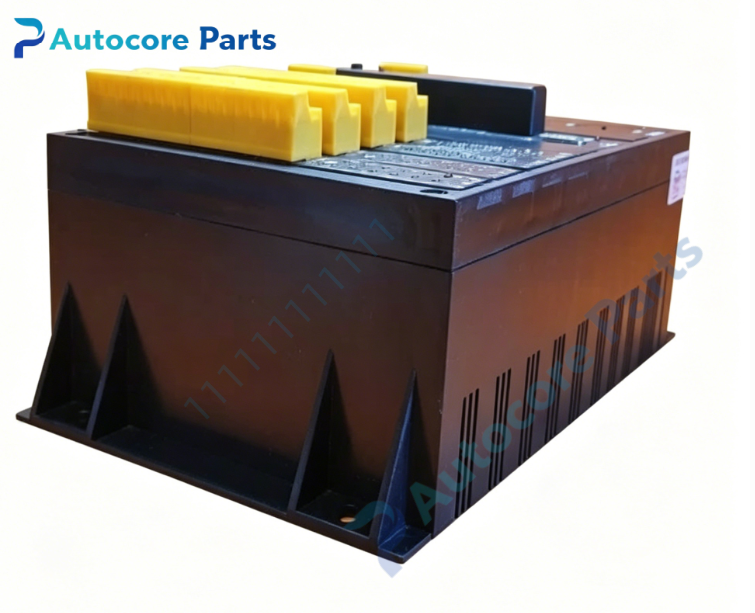

B&R MCGE31‑0 MINI Complete Basic Unit

Technical Specifications

Model:MCGE31‑0

Brand:B&R

Product Type:MINI‑CONTROL series all‑in‑one basic unit (housing+CPU+power supply)

Applicable System:B&R MINI‑CONTROL system,applied for small‑scale packaging machinery,automated process equipment for logic control and I/O expansion

Power Supply:24VDC input,built‑in NT33 power unit

CPU On‑board Memory:16KB EEPROM,16KB SRAM,approx 4.7KB user program statements

Communication Interface:1 x electrically isolated TTY online programming interface

I/O Slot Quantity:6 slots for digital I/O modules and time modules

Installation:Compact housing integrated unit,direct cabinet installation

Indicator:System status LED for hardware diagnosis

Degree of protection:IP20

Certification:CE,UL

Working temperature:0℃ ~ +55℃

Storage temperature:‑25℃ ~ +70℃

Relative humidity:5‑85% non‑condensing,pollution degree 2

Built‑in function:All‑in‑one MINI‑CONTROL basic unit integrates housing,CP30 CPU processor and NT33 power supply. EEPROM stores user application program,SRAM processes runtime variable data. Isolated TTY interface supports online program download and debugging. Six internal slots realize flexible digital I/O module expansion,complete small‑equipment logic control without extra rack accessories

Product Brief

MCGE31‑0 belongs to B&R MINI‑CONTROL old‑generation system family,it is discontinued legacy all‑in‑one basic unit. CPU,power supply and housing are integrated as one piece,only I/O modules need to be inserted additionally. Widely used for original B&R small‑automation‑equipment maintenance and renovation. Before purchase,please confirm program memory requirement and I/O module matching. ESD anti‑static protection shall be followed during installation
