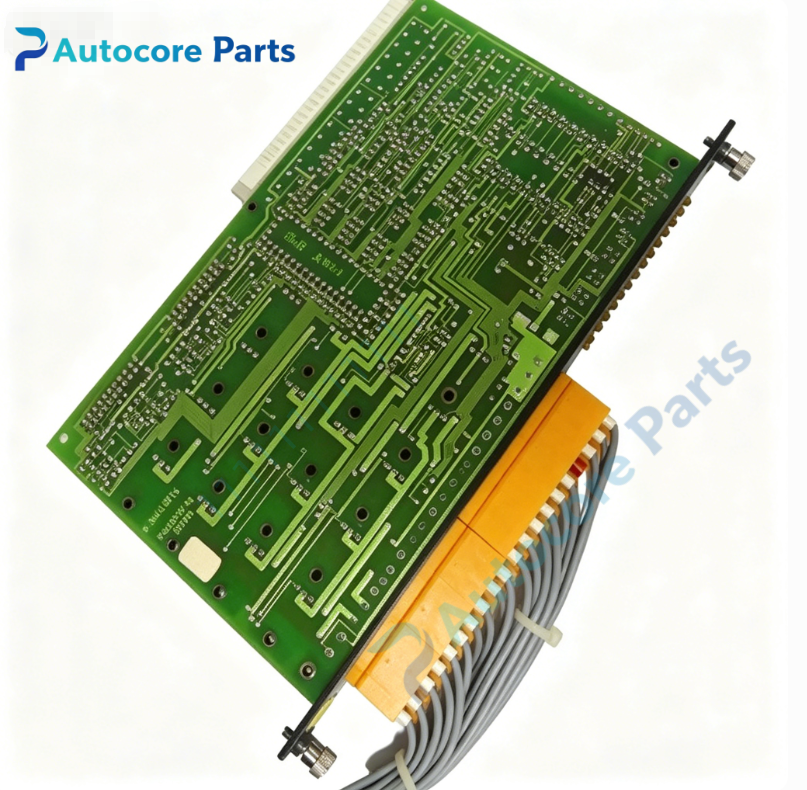

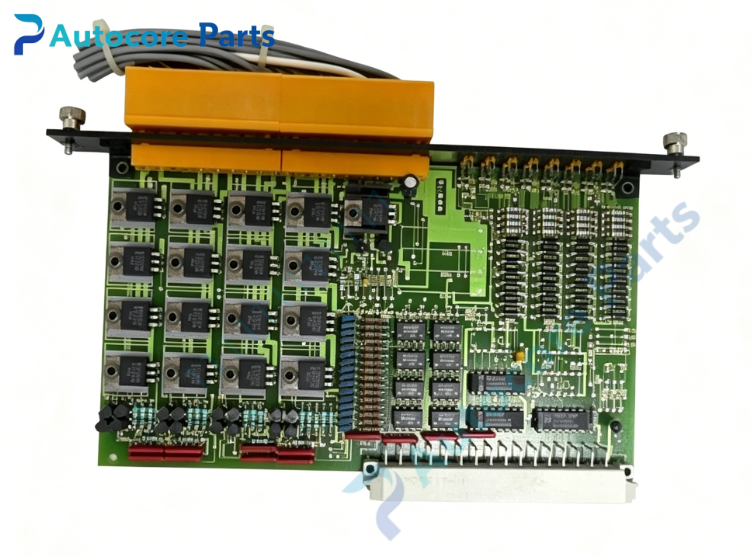

B&R MDA115‑0 Digital Output Module

Technical Specifications

Model:MDA115‑0

Brand:B&R

Product Type:MULTI‑CONTROL rack series digital transistor output module

Applicable System:B&R Midi‑Multi‑Control rack system,applied for early‑generation packaging machinery,process equipment to drive solenoid valves,small relays and indicator lamps

Output Voltage:24VDC

Channel Quantity:16 digital transistor output channels

Single‑channel Rated Current:0.5A

Protection:Independent short‑circuit protection for each output channel

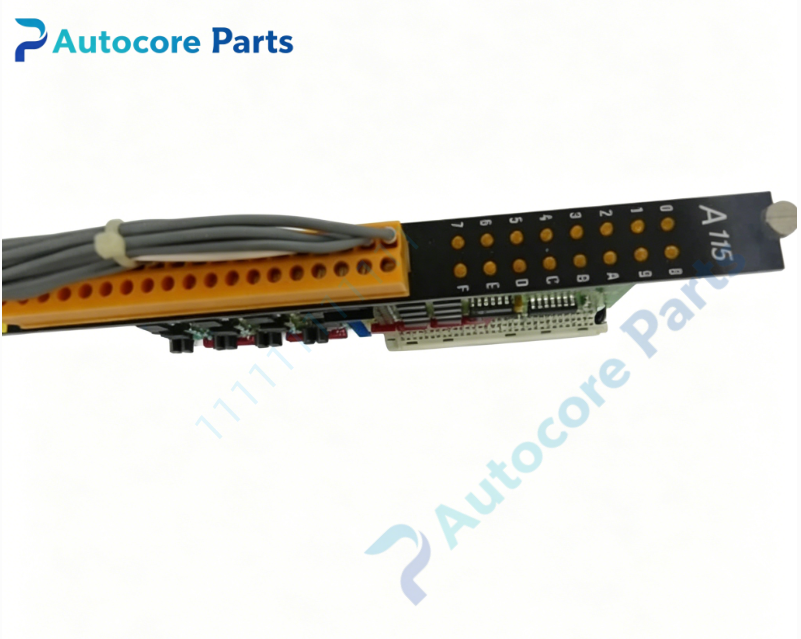

Indicator:Channel‑by‑channel status LED for fault diagnosis

Power Consumption:1.3W

Installation:Install in MULTI‑CONTROL rack slot

Degree of protection:IP20

Certification:CE,UL

Working temperature:0℃ ~ +55℃

Storage temperature:‑25℃ ~ +70℃

Relative humidity:5‑85% non‑condensing,pollution degree 2

Built‑in function:Rack‑mounted transistor output module converts rack bus digital signals into field switch signals for driving low‑power field actuators. Independent short‑circuit protection prevents module damage caused by field wiring short‑circuit fault. On‑board LED indicators support fast on‑site channel status checking,designed for legacy rack‑based automation equipment signal output

Product Brief

MDA115‑0 belongs to B&R MULTI‑CONTROL old‑generation I/O family,it is discontinued legacy spare part with 16‑channel transistor output. Widely used for original B&R old‑equipment maintenance and renovation. Before purchase,please confirm rack hardware version and slot compatibility requirement. ESD anti‑static protection shall be followed during installation
