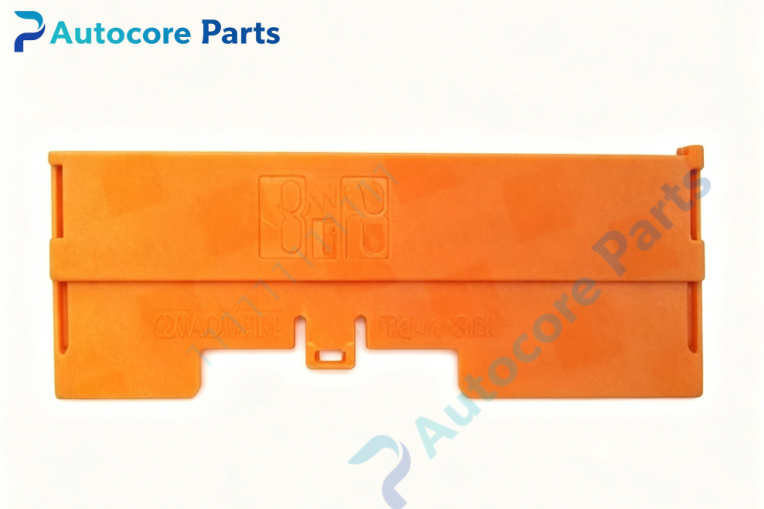

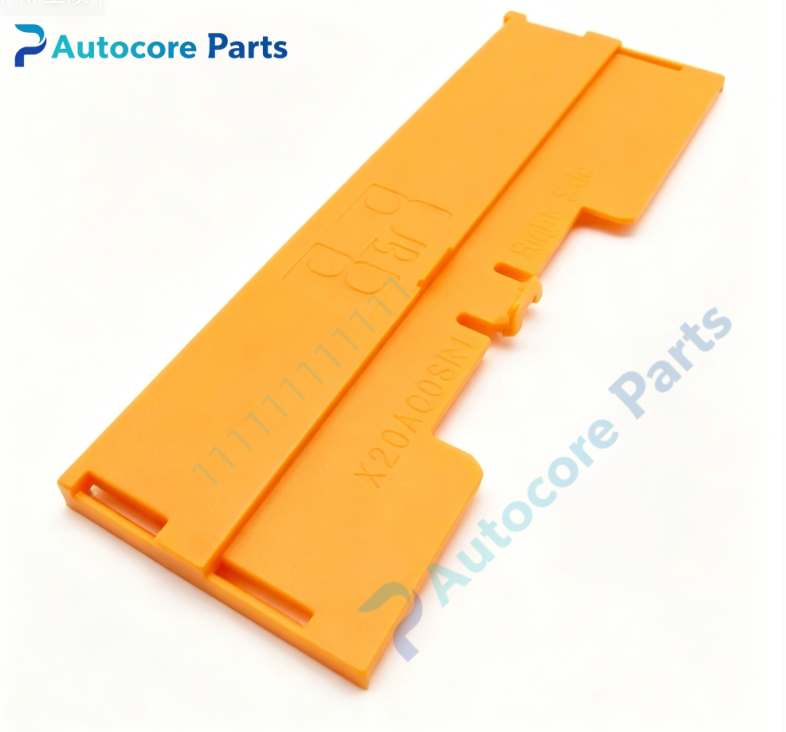

B&R X20AC0SR1 Right‑Side End Cover Locking Plate

Technical Specifications

Model:X20AC0SR1

Brand:B&R

Product Type:X20 system mechanical accessory right‑side end cover locking plate

Applicable System:B&R X20 PLC system,used for cabinet X20 backplane assembly of packaging machinery and process automation equipment

Material:engineering plastic

Installation:clamp‑on mounting on right end of X20 module row

Function Description:mechanical locking for X20 terminal blocks,limit lateral movement of module assembly,provide right‑end mechanical protection

Degree of protection:IP20(matching X20 module assembly)

Certification:CE,UKCA,RoHS

Working temperature:‑20℃ ~ +65℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5‑95% non‑condensing,pollution degree 2

Built‑in function:Pure mechanical accessory without electrical circuit. It is installed on the rightmost position of X20 module row to lock terminal block locking mechanism,prevent modules from sliding sideways on the backplane,and provide mechanical protection for the right end of module group. It needs to cooperate with X20AC0SL1 left‑side end cover for complete X20 I/O station assembly

Product Brief

X20AC0SR1 belongs to B&R X20 system mechanical accessory family,it is essential right‑end locking component for complete X20 I/O assembly. It has no signal processing or power supply function. Widely used for original B&R automation equipment maintenance and cabinet reassembly. Before purchase,please confirm X20 module assembly layout requirement. ESD anti‑static protection shall be followed during installation though it is plastic accessory
