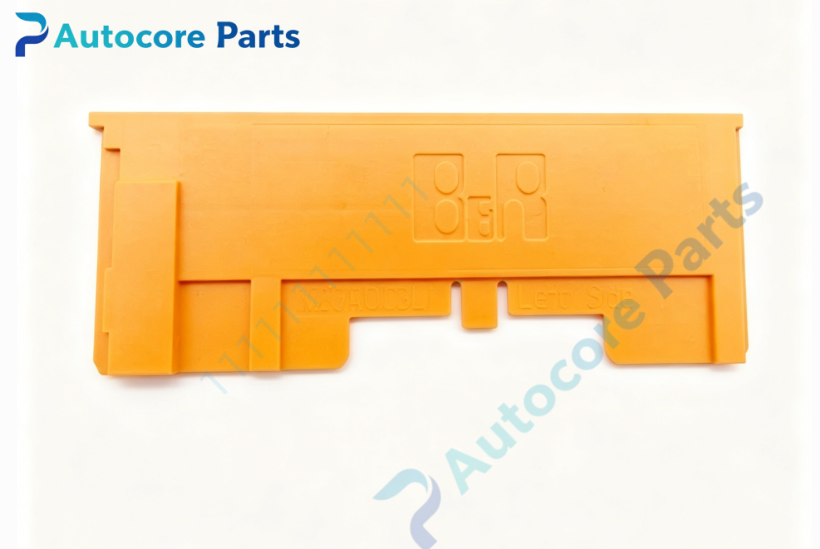

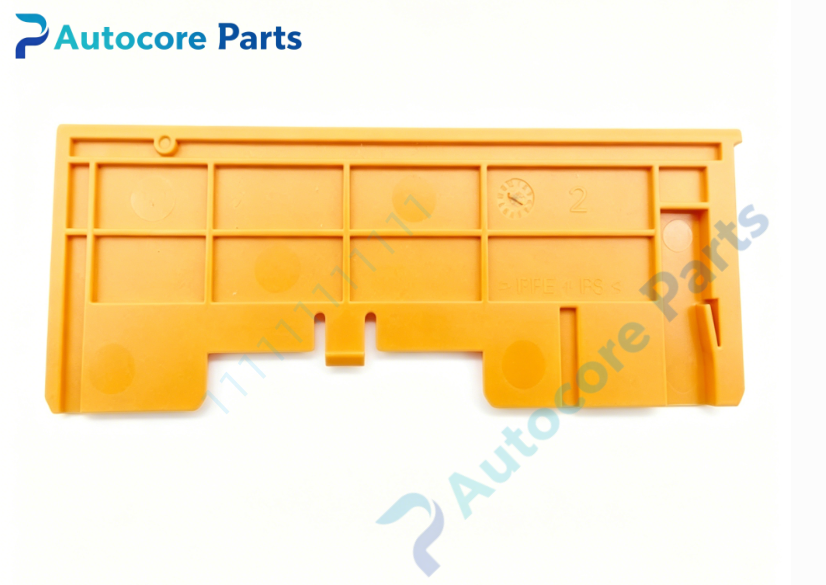

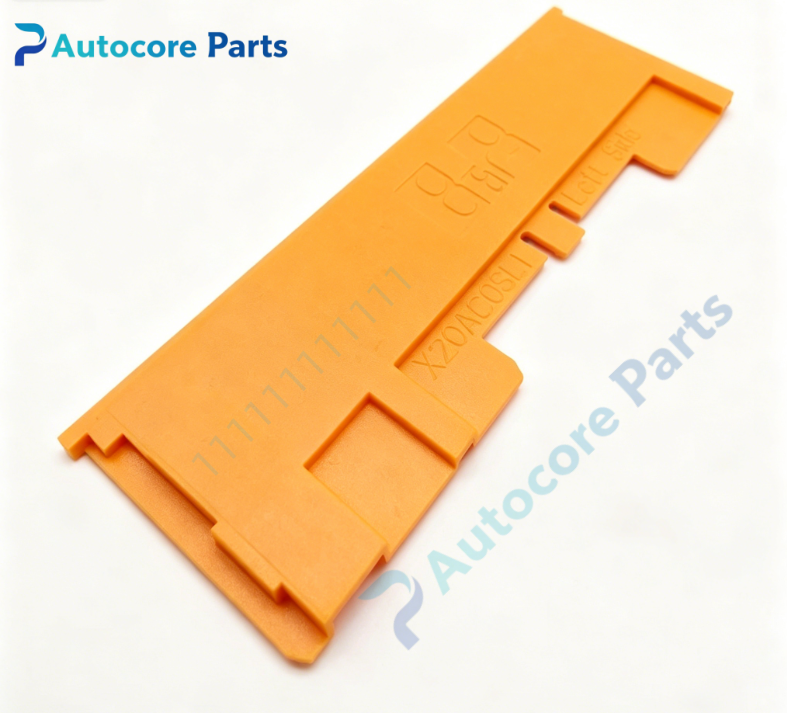

B&R X20AC0SL1 Left‑Side End Cover Locking Plate

Technical Specifications

Model:X20AC0SL1

Brand:B&R

Product Type:X20 system mechanical accessory left‑side end cover locking plate

Applicable System:B&R X20 PLC system,used for cabinet X20 backplane assembly of packaging machinery and process automation equipment

Material:engineering plastic

Installation:clamp‑on mounting on left end of X20 module row

Function Description:mechanical locking for X20 terminal blocks,limit lateral movement of module assembly,provide end‑side mechanical protection

Degree of protection:IP20(matching X20 module assembly)

Certification:CE,UKCA,RoHS

Working temperature:‑20℃ ~ +65℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5‑95% non‑condensing,pollution degree 2

Built‑in function:Pure mechanical accessory without electrical circuit. It is installed on the leftmost position of X20 module row to lock terminal block locking mechanism,prevent modules from sliding sideways on the backplane,and provide mechanical protection for the left end of module group. It must be used together with X20 series modules and backplane

Product Brief

X20AC0SL1 belongs to B&R X20 system mechanical accessory family,it is essential end‑side locking component for complete X20 I/O assembly. It has no signal processing or power supply function. Widely used for original B&R automation equipment maintenance and cabinet reassembly. Before purchase,please confirm X20 module assembly layout requirement. ESD anti‑static protection shall be followed during installation though it is plastic accessory
