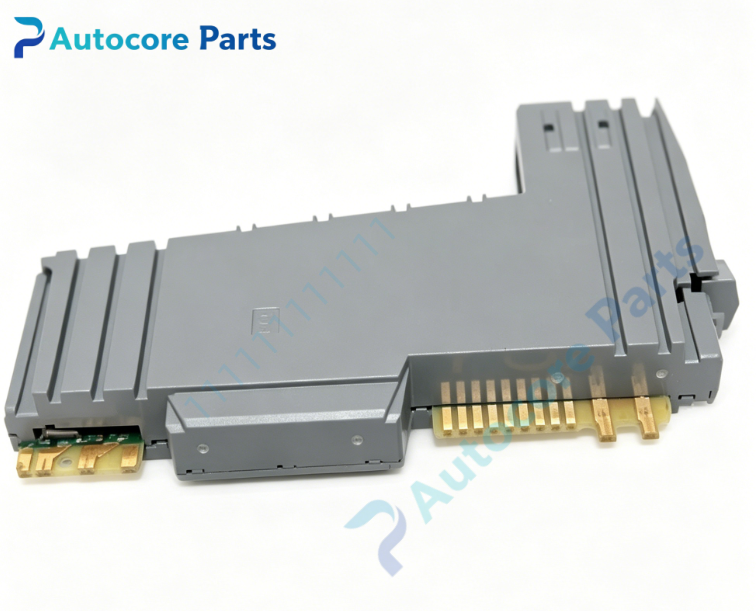

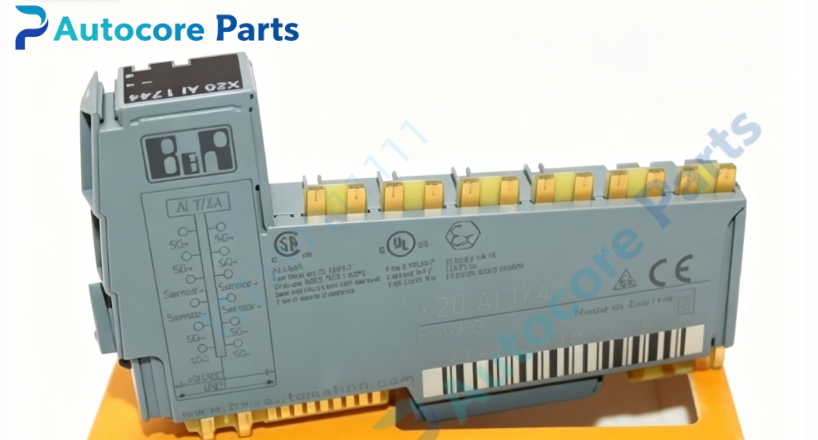

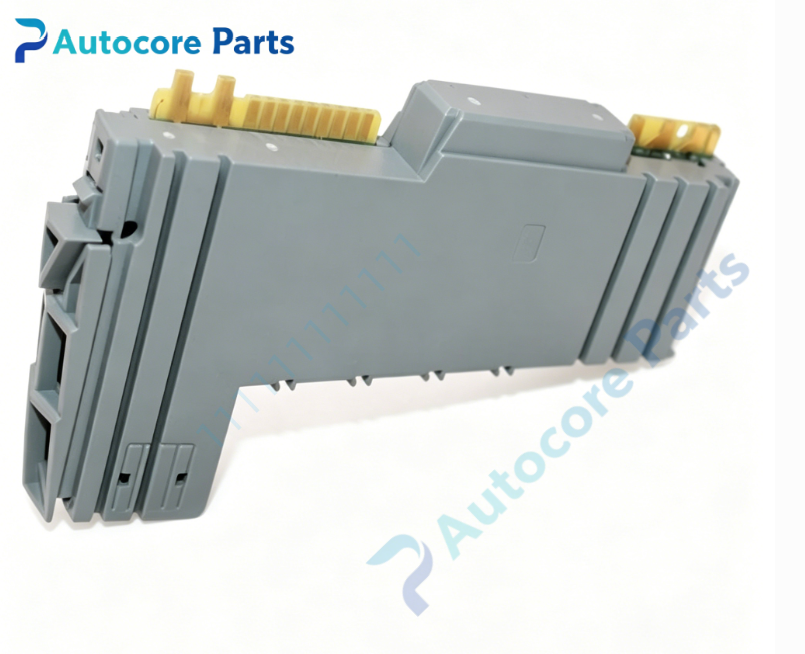

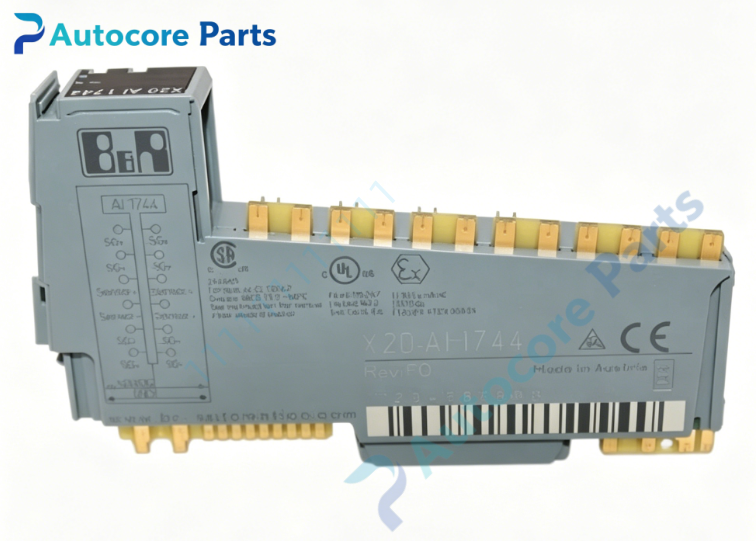

B&R X20AI1744 Strain Gauge Analog Input Module

Technical Specifications

Model:X20AI1744

Brand:B&R

Product Type:X20 system strain gauge analog input module

Applicable System:B&R X20 PLC system,applied for packaging machinery,test‑bench equipment for load cell,force and weight signal acquisition

Channel Quantity:1 full‑bridge strain gauge input channel

Resolution:24‑bit sigma‑delta ADC

Strain Gauge Factor:2‑256 mV/V software configurable

Sample Rate:0.1‑7500 samples/s

Sensor Resistance:85‑5000Ω

Wiring Mode:4‑wire / 6‑wire connection

Input Filter:5kHz cutoff frequency

Power Consumption:0.5W

Installation:Install on X20 backplane,matching X20BM11 bus module and X20TB12 terminal block

Indicator:Module and channel diagnostic LED

Degree of protection:IP20

Certification:CE,cUL‑us,ATEX Zone2,UKCA,DNV marine certification

Working temperature:‑20℃ ~ +65℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5‑95% non‑condensing,pollution degree 2

Built‑in function:X20 series dedicated strain gauge input module collects full‑bridge load‑cell force and weight signals. 24‑bit high‑precision conversion ensures accurate measurement results. Supports software configuration of strain gauge factor and sampling rate. LED status indicators facilitate on‑site fault diagnosis,supports hot‑swap replacement during equipment maintenance

Product Brief

X20AI1744 belongs to B&R X20 I/O module family,it is specialized for weighing and force‑measurement signal acquisition. Bus module and terminal block need to be ordered separately for field wiring. Widely used for original B&R automation equipment maintenance and renovation. Before purchase,please confirm X20 hardware version and backplane compatibility requirement. ESD anti‑static protection shall be followed during installation
