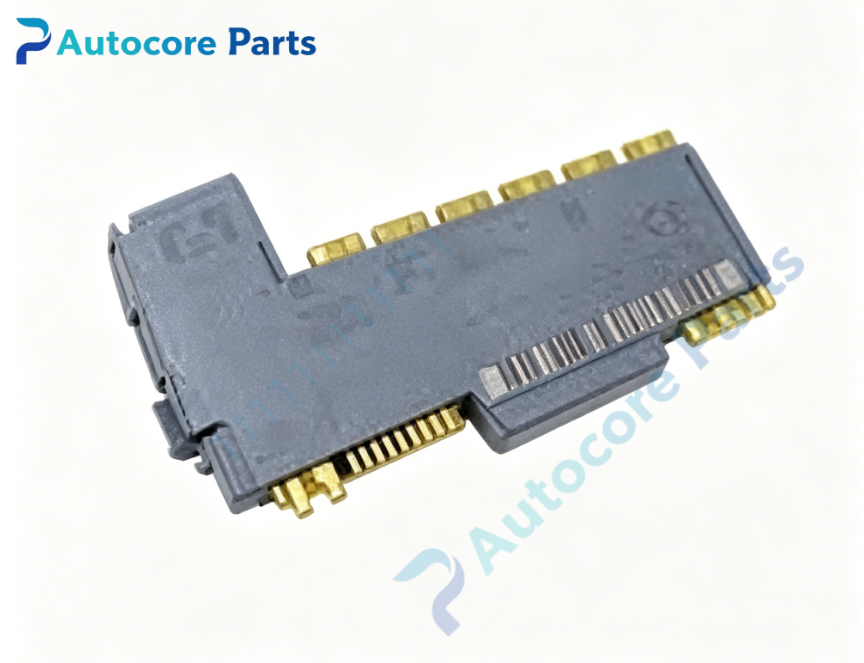

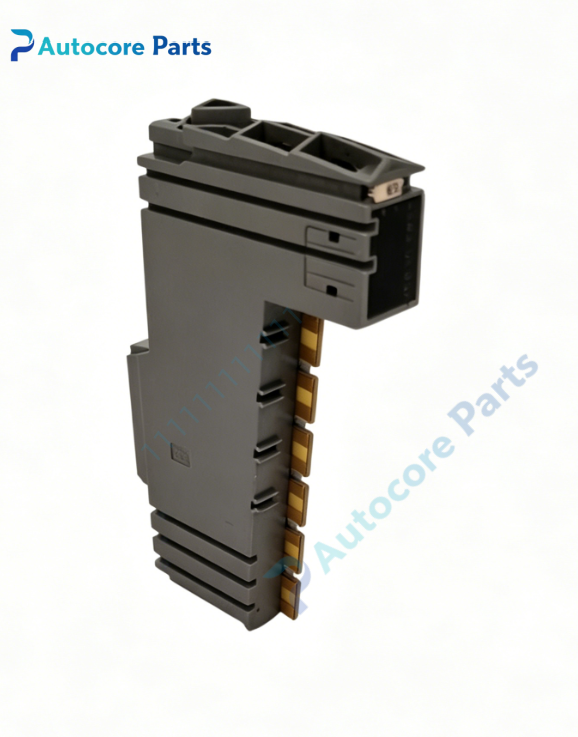

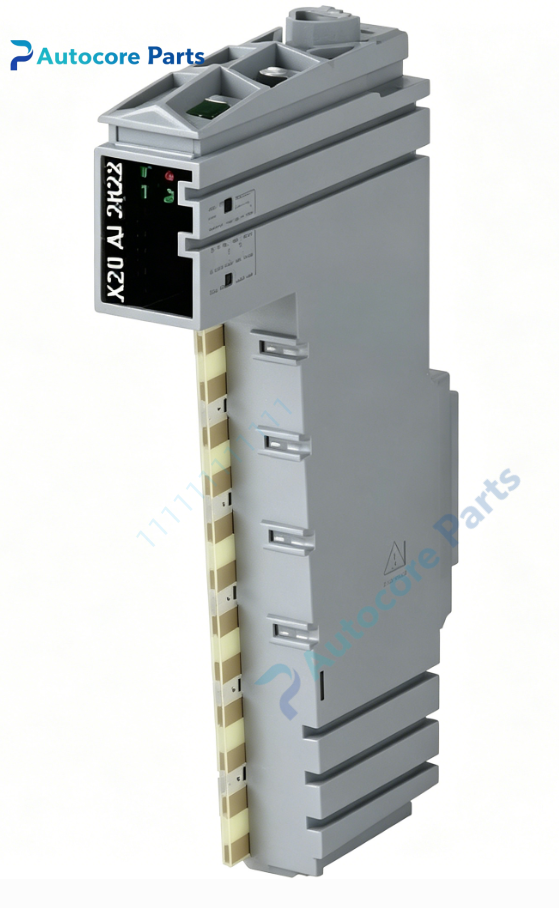

B&R X20AI2622 Analog Input Module

Technical Specifications

Model:X20AI2622

Brand:B&R

Product Type:X20 system differential analog input module

Applicable System:B&R X20 PLC system,applied for packaging machinery,process automation equipment for pressure,flow and temperature transmitter signal acquisition

Channel Quantity:2 differential analog input channels

Input Range:±10V voltage,0‑20mA / 4‑20mA current

Resolution:13‑bit including sign bit

Conversion Time:300µs full‑channel

Input Filter:3rd‑order low‑pass filter,1kHz cutoff frequency

Input Impedance:20MΩ for voltage input

Power Consumption:bus 0.01W,internal I/O 0.8W

Installation:Install on X20 backplane,matching X20BM11 bus module,X20TB06 or X20TB12 terminal block

Indicator:per‑channel LED for channel status and module fault diagnosis

Degree of protection:IP20

Certification:CE,cUL‑us,ATEX Zone2,UKCA,DNV marine certification

Working temperature:‑20℃ ~ +65℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5‑95% non‑condensing,pollution degree 2

Built‑in function:X20 series differential analog input module converts field transmitter voltage and current analog signals into digital bus data for PLC processing. Signal type is selected through different terminal wiring. Built‑in configurable low‑pass filter suppresses industrial site high‑frequency interference. Channel‑by‑channel LED indicators facilitate on‑site fault diagnosis,supports hot‑swap replacement during equipment maintenance

Product Brief

X20AI2622 belongs to B&R X20 I/O module family,it is 2‑channel differential analog input spare part for collecting standard process transmitter signals. Bus module and terminal block need to be ordered separately for field wiring. Widely used for original B&R automation equipment maintenance and renovation. Before purchase,please confirm X20 hardware version and backplane compatibility requirement. ESD anti‑static protection shall be followed during installation
