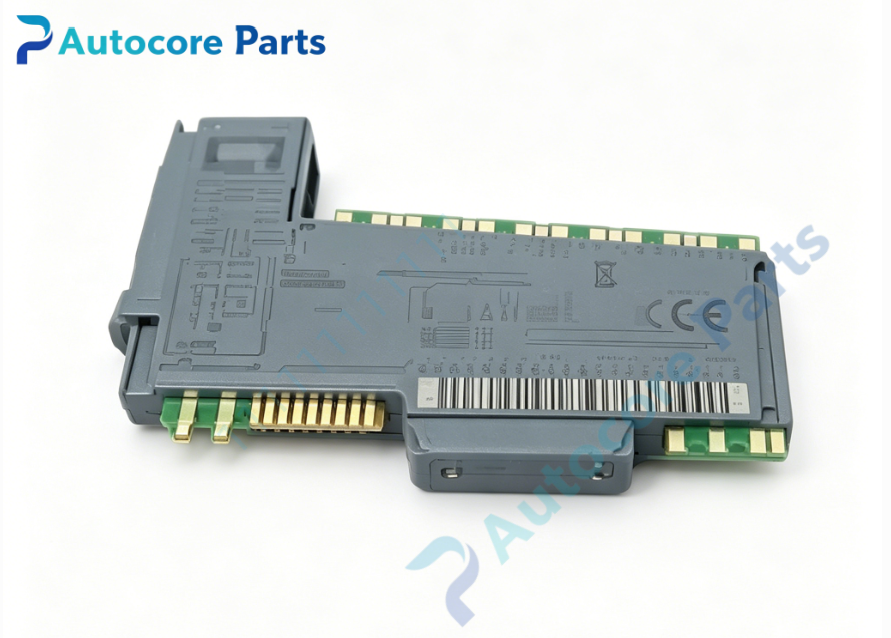

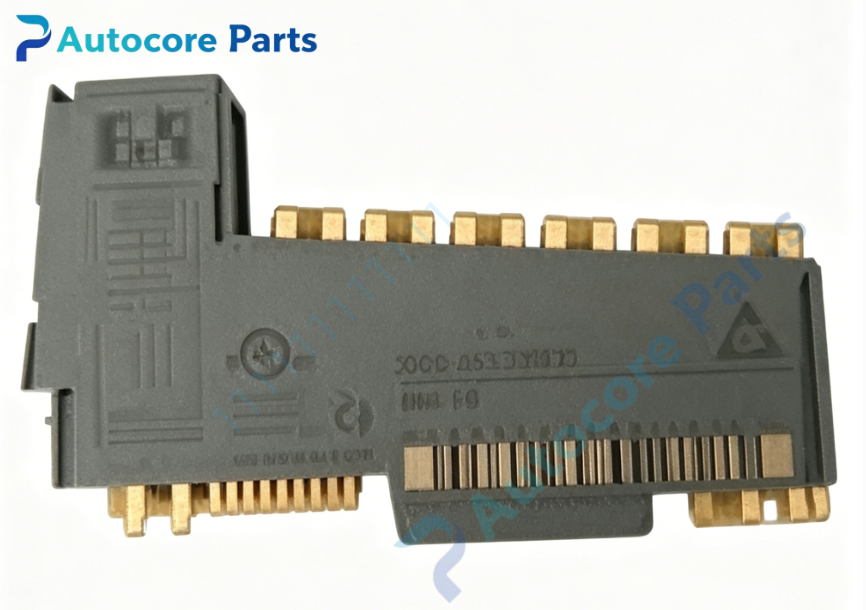

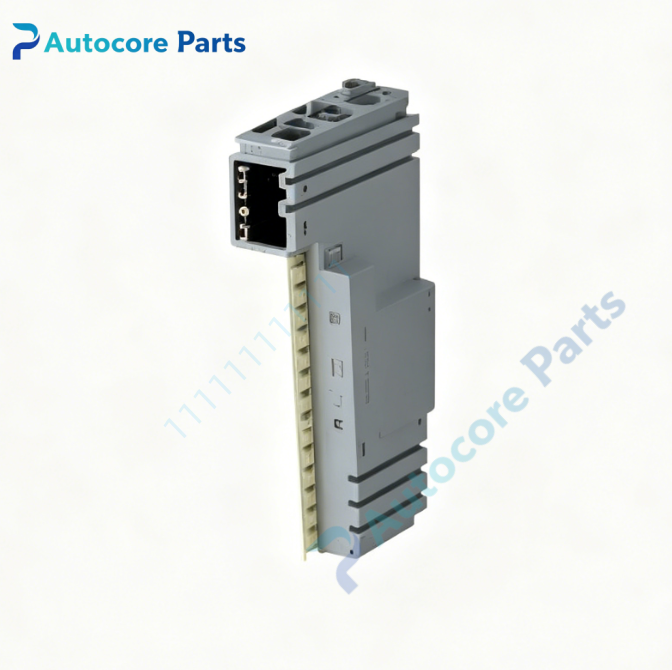

B&R X20AO2622 Analog Output Module

Technical Specifications

Model:X20AO2622

Brand:B&R

Product Type:X20 system analog output module

Applicable System:B&R X20 PLC system,applied for packaging machinery,process automation equipment for proportional valve and analog actuator control

Channel Quantity:2 independent analog output channels

Output Range:±10V voltage,0‑20mA / 4‑20mA current,signal type selected by terminal wiring

Resolution:13‑bit including sign bit

Conversion Time:200µs full‑channel

Settling Time:1ms full range

Load Requirement:current output max 600Ω(revision≥J0),voltage output ≥1kΩ

Protection:per‑channel short‑circuit protection,internal enable relay

Power Consumption:bus 0.01W,internal I/O 1.1W

Installation:Install on X20 backplane,matching X20BM11 bus module,X20TB06 or X20TB12 terminal block

Indicator:per‑channel LED for channel status and module fault diagnosis

Degree of protection:IP20

Certification:CE,cUL‑us,ATEX Zone2,UKCA,DNV marine certification

Working temperature:‑20℃ ~ +65℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5‑95% non‑condensing,pollution degree 2

Built‑in function:X20 series analog output module converts PLC bus digital signals into analog voltage or current signals. Signal type is selected through terminal wiring. Built‑in short‑circuit protection prevents damage caused by field wiring faults. Internal enable relay manages power‑on output behavior. Channel‑by‑channel LED indicators facilitate on‑site fault diagnosis,supports hot‑swap replacement during equipment maintenance

Product Brief

X20AO2622 belongs to B&R X20 I/O module family,it provides two‑channel standard analog output for X20 control system. Bus module and terminal block need to be ordered separately for field wiring. Widely used for original B&R automation equipment maintenance and renovation. Before purchase,please confirm X20 hardware version and backplane compatibility requirement. ESD anti‑static protection shall be followed during installation
