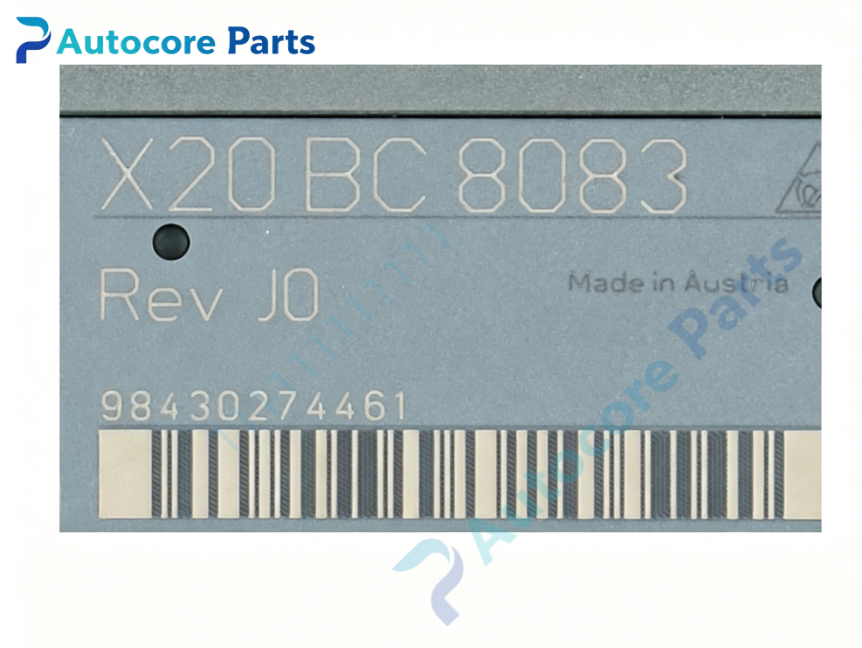

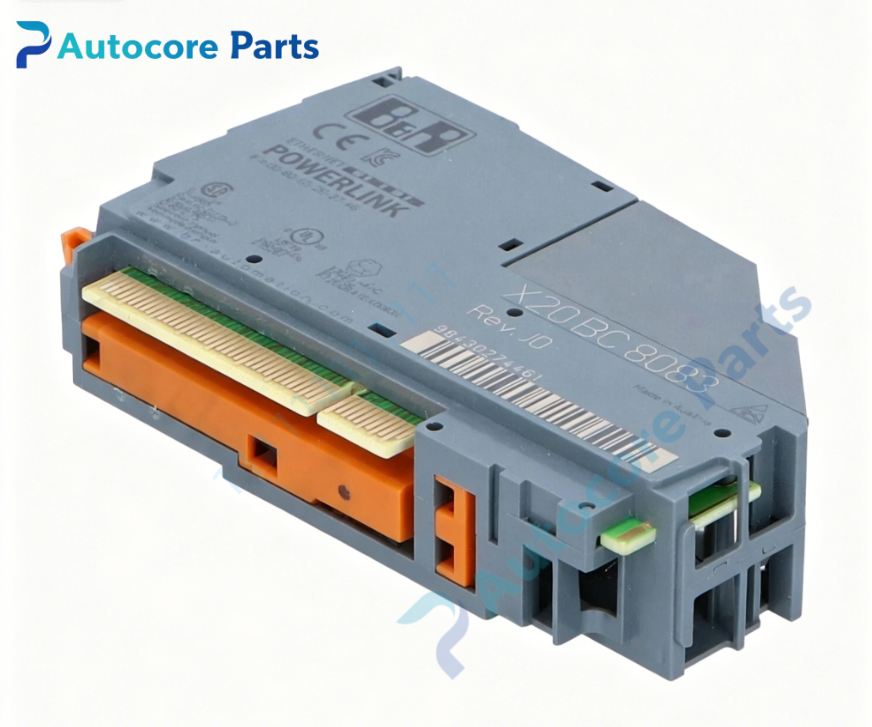

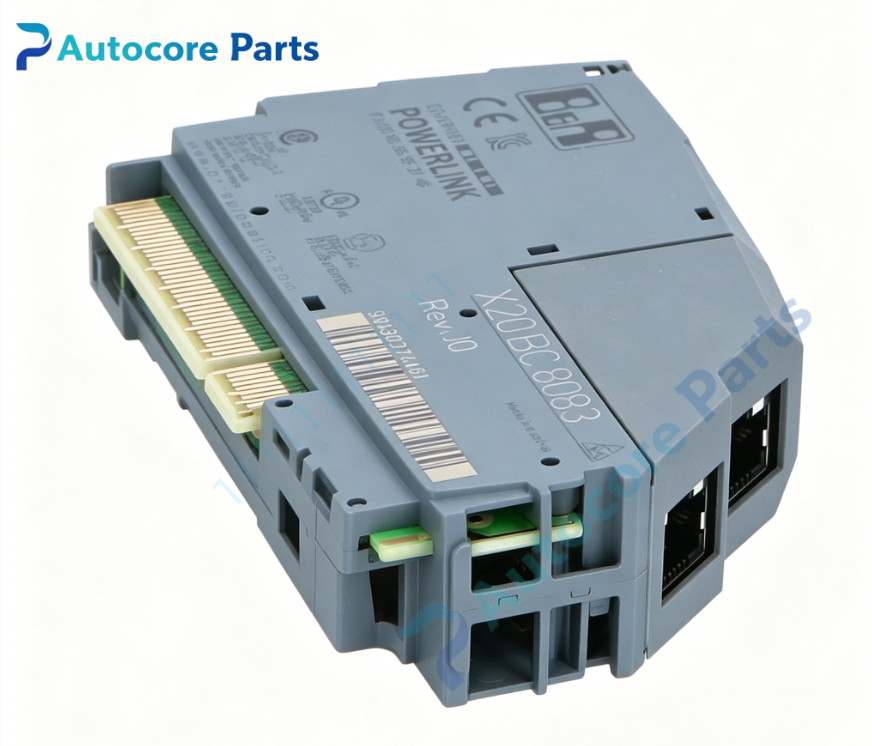

B&R X20BC8083 Expandable POWERLINK Bus Controller Module

Technical Specifications

Model:X20BC8083

Brand:B&R

Product Type:X20 system expandable POWERLINK bus controller module

Applicable System:B&R X20 PLC system,connect X2X‑Link distributed I/O stations to POWERLINK real‑time fieldbus

Fieldbus Protocol:POWERLINK V1/V2 controlled node

Ethernet Interface:2×shielded RJ45,integrated 2‑port hub

Transmission Rate:100 Mbit/s 100BASE‑TX

Expansion Slot:Max 2 slots for X20 hub expansion modules

Min Cycle Time:200 μs for fieldbus,200 μs for X2X‑Link

Synchronization:X2X‑Link synchronous with POWERLINK

Power Consumption:2 W

Installation:Install on X20BB80 bus base module

Indicator:Multi‑color LED for module status and bus fault diagnosis

Degree of protection:IP20

Certification:CE,cUL‑us,ATEX Zone2,UKCA,DNV,CCS,LR,ABS,BV marine certification

Working temperature:‑25℃ ~ +60℃(horizontal mounting),‑25℃ ~ +50℃(vertical mounting)

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5‑95% non‑condensing,pollution degree 2

Built‑in function:

X20BC8083 expandable bus controller connects X2X‑Link remote I/O stations to POWERLINK real‑time bus. It supports adding hub expansion modules for more network ports. X2X‑Link can run synchronously with POWERLINK bus cycle. LED indicators display running and fault status,supports hot‑swap replacement for field equipment maintenance.

Product Brief

X20BC8083 belongs to B&R X20 I/O system family,it is expandable POWERLINK bus controller for distributed remote I/O stations. Must cooperate with X20BB80 bus base module and separate terminal block. Widely used for original B&R automation equipment maintenance and renovation. Before purchase,please confirm host POWERLINK controller compatibility. ESD anti‑static protection shall be followed during installation
