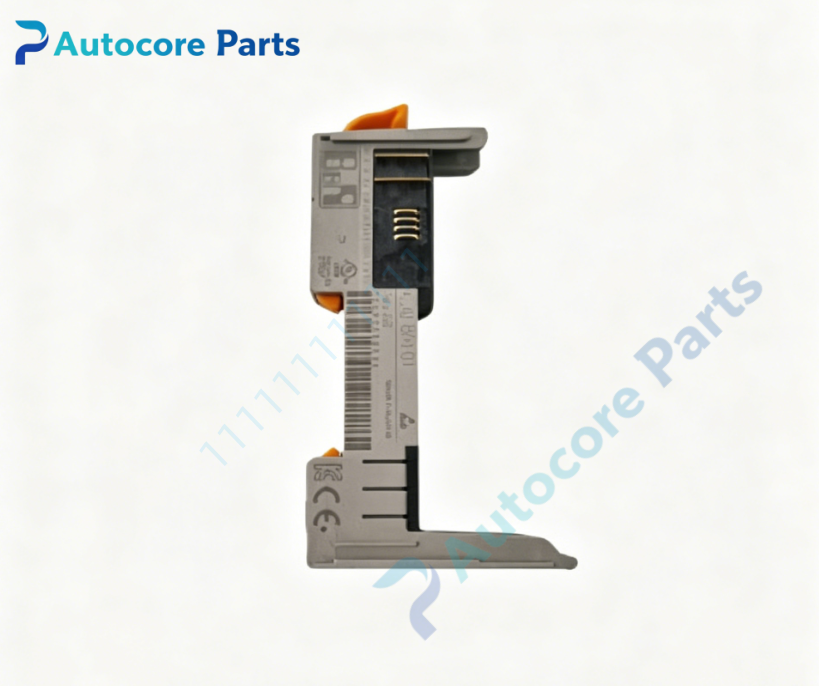

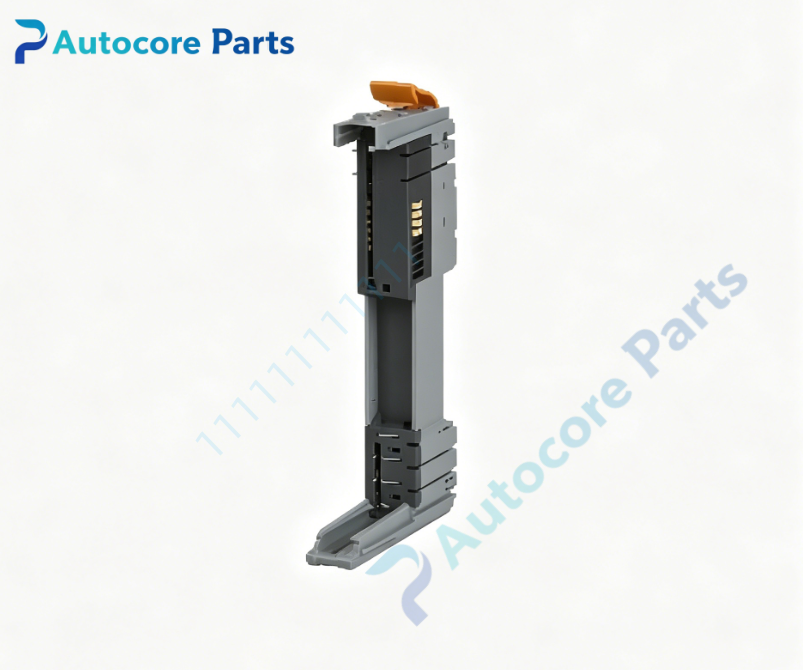

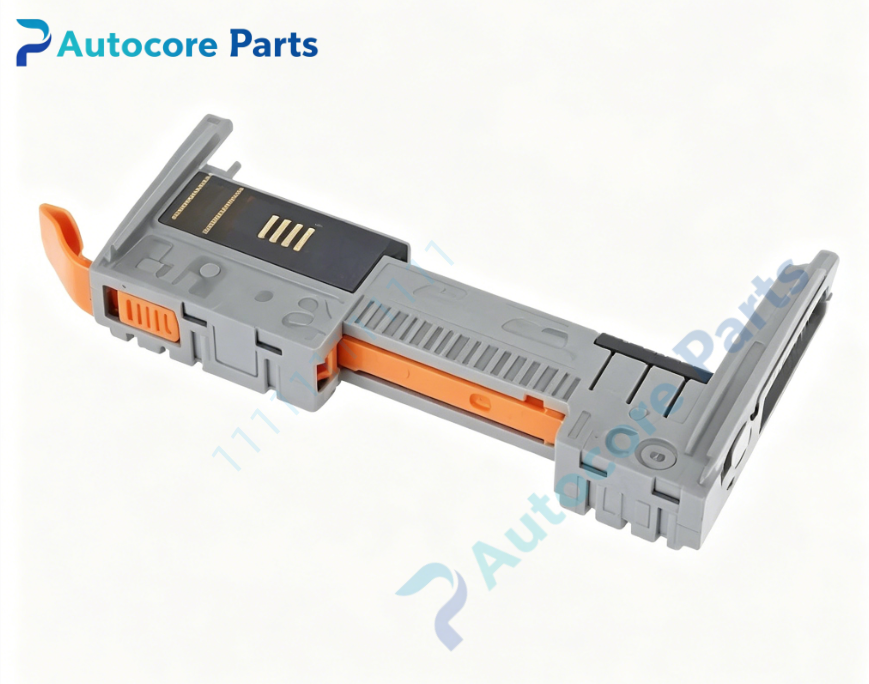

B&R X20BM01 Power Supply Bus Module

Technical Specifications

Model:X20BM01

Brand:B&R

Product Type:X20 system power supply bus module

Applicable System:B&R X20 PLC system,used for potential group division of X20 I/O station

Nominal I/O Voltage:24 VDC

Permissible Contact Load:10 A

Power Consumption:0.13 W

Accessory:Include X20AC0SL1,X20AC0SR1 end cover plates

Installation:DIN rail mounting

Degree of protection:IP20

Certification:CE,cUL‑us,ATEX Zone2,UKCA,DNV,CCS,LR,ABS,BV marine certification

Working temperature:‑25℃ ~ +60℃(horizontal mounting),‑25℃ ~ +50℃(vertical mounting)

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5‑95% non‑condensing,pollution degree 2

Built‑in function:

X20BM01 power supply bus module cuts off internal I/O power supply toward left side,realizes potential group isolation for X20 I/O station. Equipped with left and right locking end cover plates,complete X20 station backplane assembly on DIN rail.

Product Brief

X20BM01 belongs to B&R X20 system accessory family,it is power‑separated bus module for building potential groups. End cover plates are delivered together,no extra purchase required. Widely used for original B&R automation equipment maintenance and renovation. Before purchase,please confirm station power division requirement. ESD anti‑static protection shall be followed during installation
