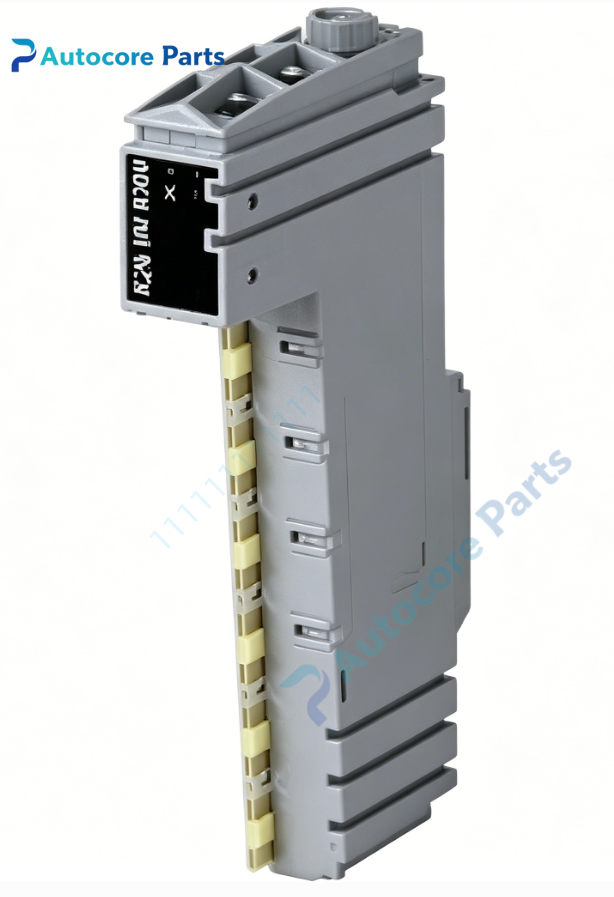

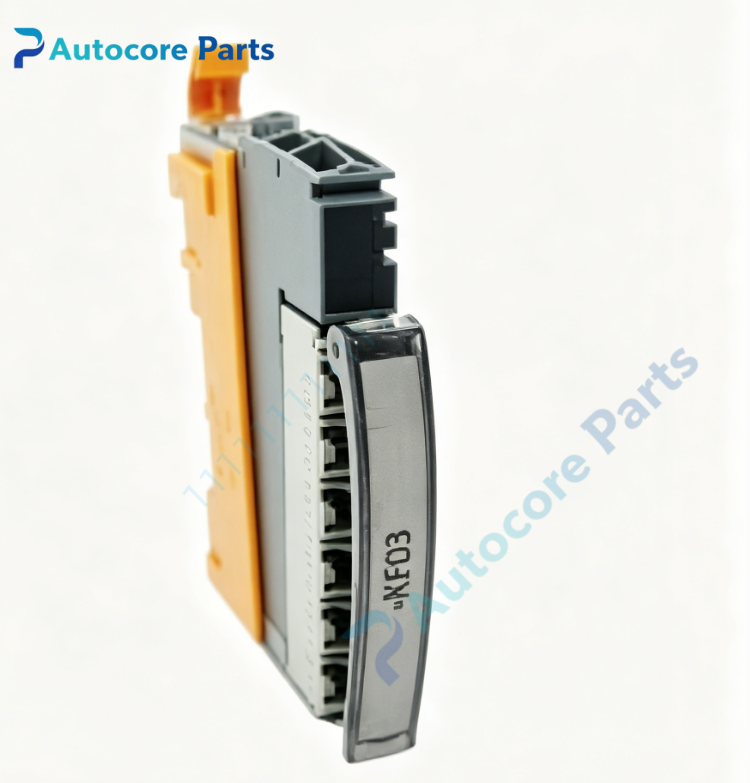

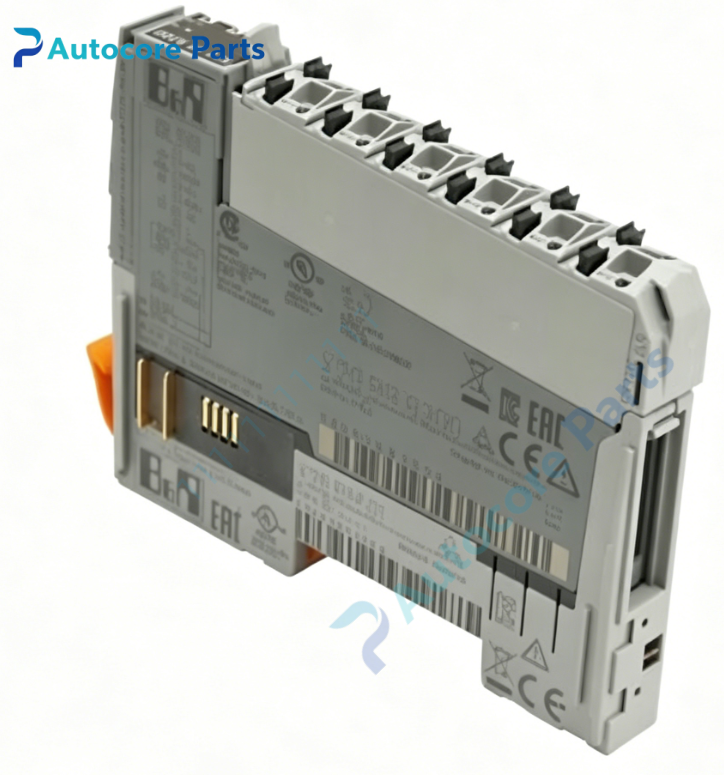

B&R X20BR9300 X2X‑Link Bus Receiver Module

Technical Specifications

Model:X20BR9300

Brand:B&R

Product Type:X20 system X2X‑Link bus receiver module

Applicable System:B&R X20 PLC system,connect X20 station to X2X‑Link remote fieldbus,provide bus and I/O power supply

Input Voltage:24 VDC(-15% / +20%)

Max Input Current:0.7 A

Nominal Output Power:7 W

Power Consumption:1.62 W(X2X‑Link supply),0.6 W(internal I/O)

Isolation:Galvanic isolation between feed and X2X‑Link supply

Protection:Short‑circuit and temporary overload protection,reverse polarity protection

Installation:Only for far‑left slot of X20 station,matching X20BM01 bus module and X20TB12 terminal block

Indicator:Multi‑color LED for module status,X2X‑Link bus and overload fault diagnosis

Accessory:Include X20AC0SL1,X20AC0SR1 end cover plates

Degree of protection:IP20

Certification:CE,cUL‑us,ATEX Zone2,UKCA,KC

Working temperature:‑25℃ ~ +60℃(horizontal mounting),‑25℃ ~ +50℃(vertical mounting)

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5‑95% non‑condensing,pollution degree 2

Built‑in function

X20BR9300 bus receiver establishes connection between X20 station and X2X‑Link bus,supplies power for X2X‑Link bus and station internal I/O. Galvanic isolation improves system anti‑interference performance,support redundant power supply by multi‑modules parallel. Built‑in overload and short‑circuit protection,LED indicators realize fast fault locating.

Product Brief

X20BR9300 belongs to B&R X20 system accessory family,it must be installed on the far‑left slot of X20 I/O station,work with X20BM01 bus module. Widely used for original B&R distributed remote I/O equipment maintenance and renovation. Before purchase,please confirm station slot position and power budget. ESD anti‑static protection shall be followed during installation
