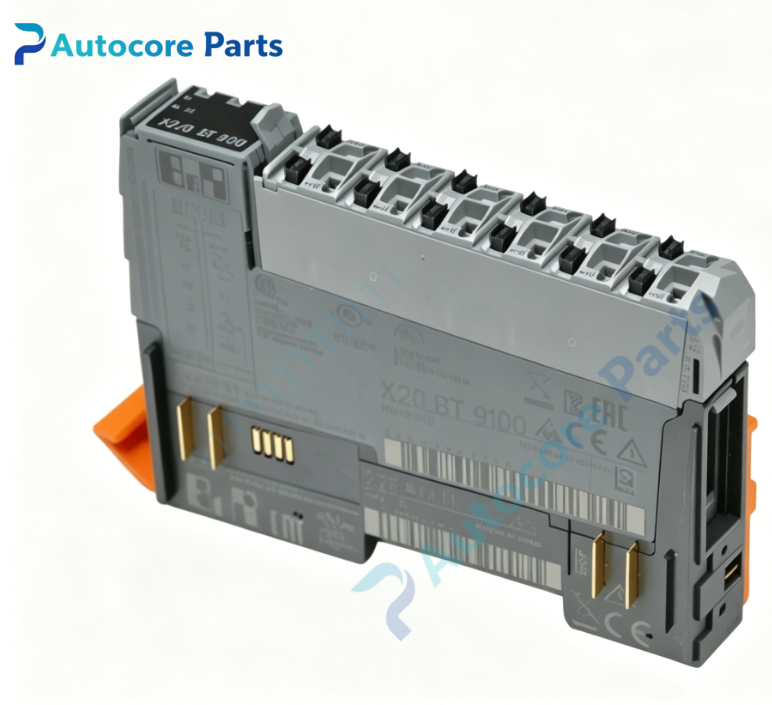

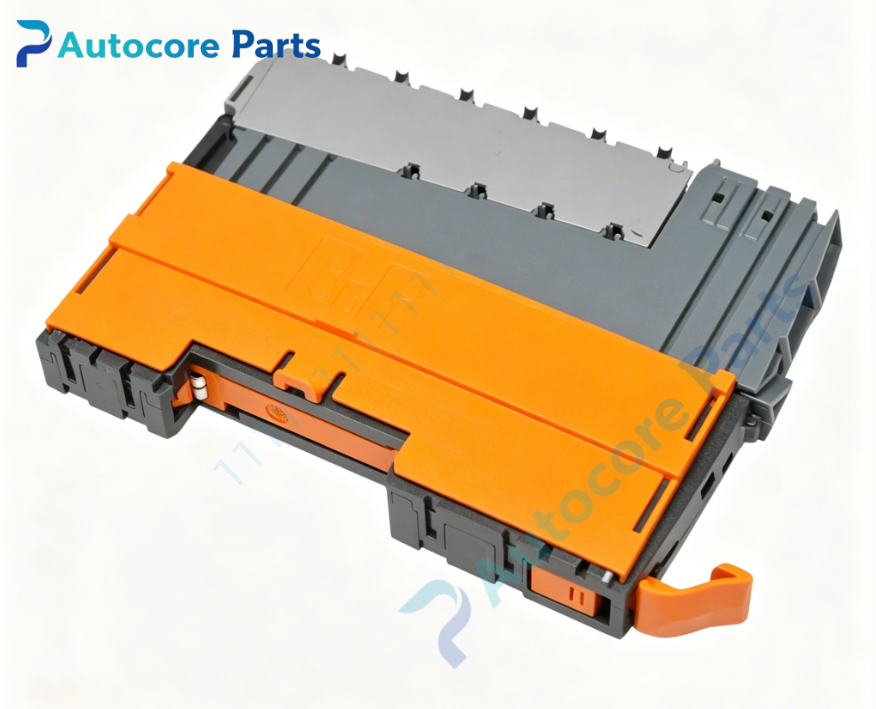

B&R X20BT9100 X2X‑Link Bus Transmitter Module

Technical Specifications

Model:X20BT9100

Brand:B&R

Product Type:X20 system X2X‑Link bus transmitter module

Applicable System:B&R X20 PLC system,realize X2X‑Link long‑distance station expansion,supply internal I/O power

Input Voltage:24 VDC(-15% / +20%)

Max Input Current:0.5 A

Max Segment Length:100 m between X20 stations

Power Consumption:0.5 W(bus),0.1 W(transmitter function),additional 0.6 W(power supply function)

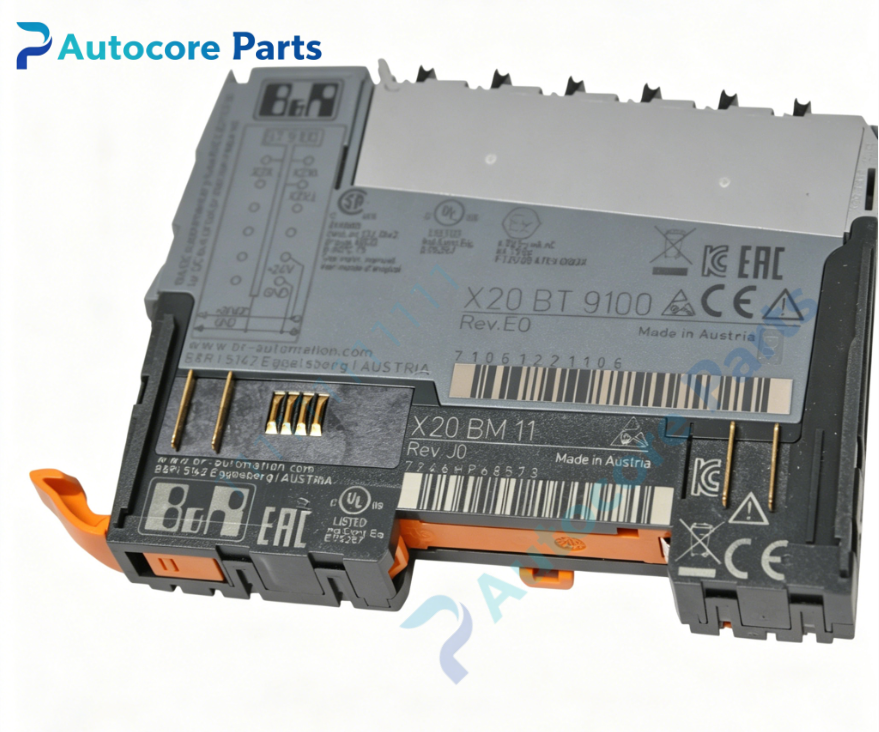

Installation:Only install on far‑right slot of X20 station,match X20BM11 / X20BM15 bus module

Indicator:Multi‑color LED for module status,X2X‑Link bus and fault diagnosis

Diagnosis:Hardware LED and software diagnostic function

Degree of protection:IP20

Certification:CE,cUL‑us,ATEX Zone2,UKCA,KC

Working temperature:‑25℃ ~ +60℃(horizontal mounting),‑25℃ ~ +50℃(vertical mounting)

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5‑95% non‑condensing,pollution degree 2

Built‑in function

X20BT9100 bus transmitter extends X2X‑Link communication distance up to 100 meters between stations,can provide power for local station internal I/O. Must be placed on the far‑right slot of backplane. LED and software realize bus status and fault diagnosis,support equipment maintenance and station expansion.

Product Brief

X20BT9100 belongs to B&R X20 system accessory family,it is X2X‑Link bus transmitter for remote station expansion. Must cooperate with X20BM11 or X20BM15 bus module. If used as I/O power feed,this potential group shall not be powered by other modules. Widely used for original B&R automation equipment maintenance and renovation. Before purchase,please confirm slot position and power distribution requirement. ESD anti‑static protection shall be followed during installation
