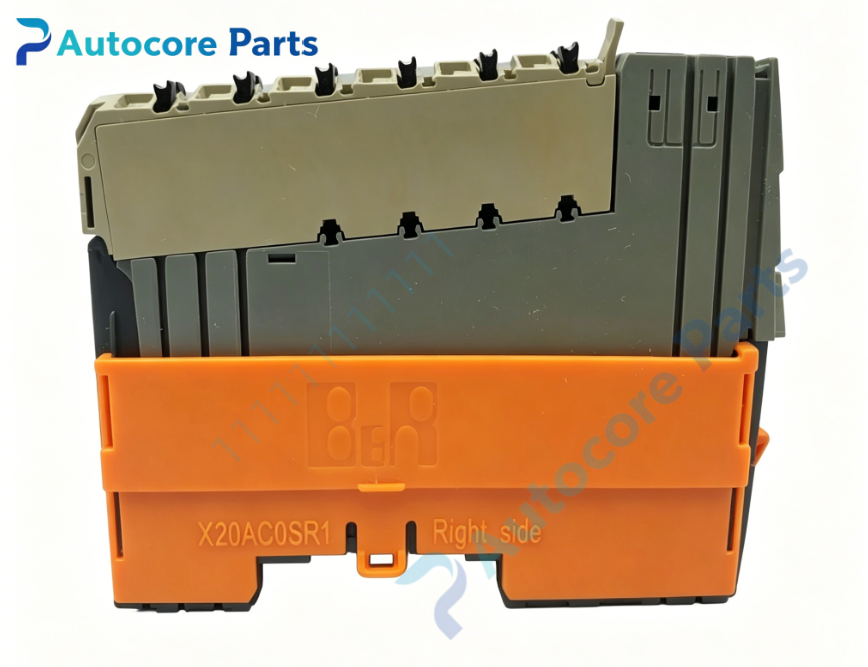

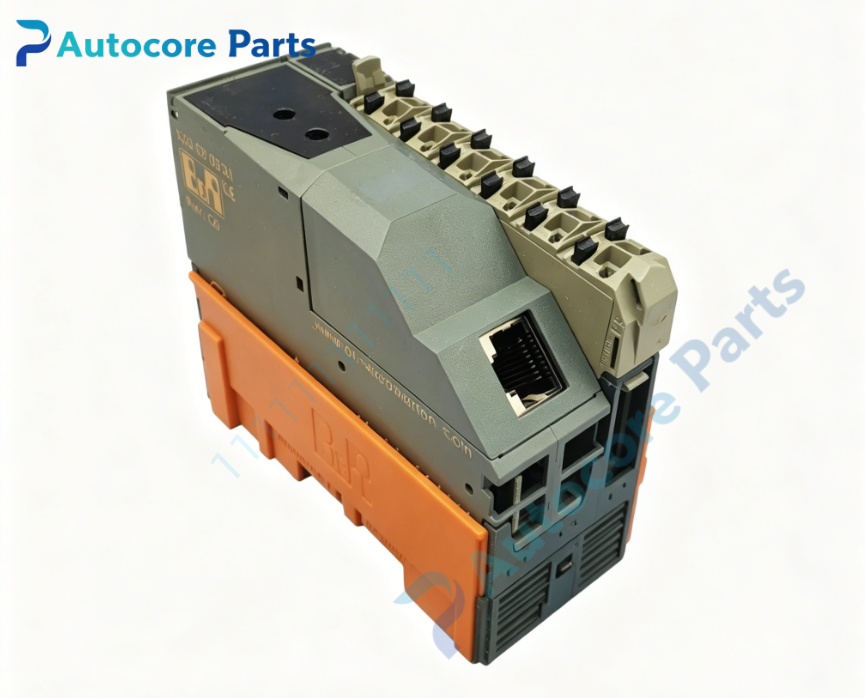

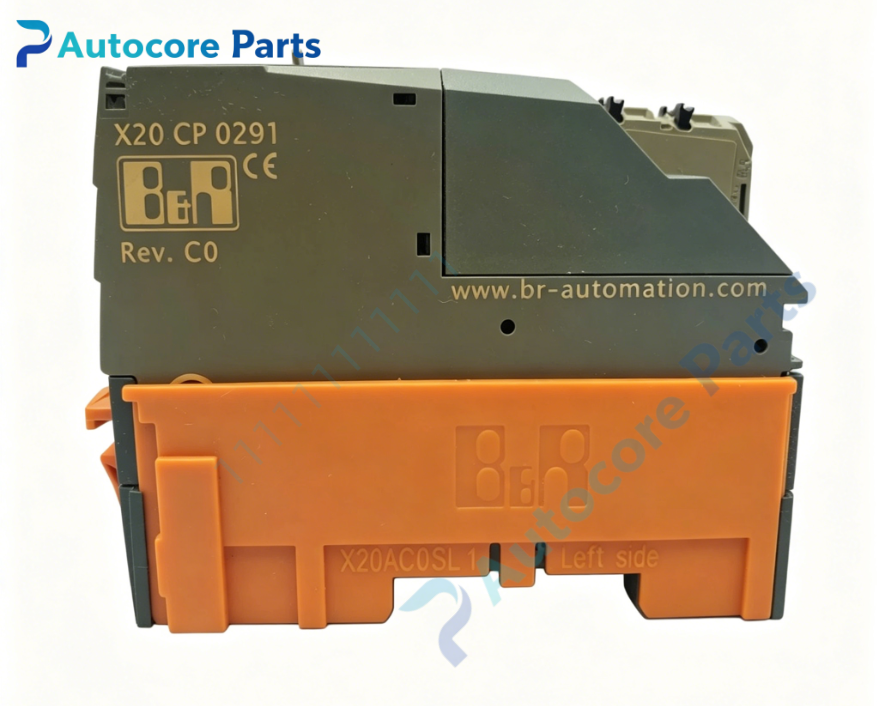

B&R X20CP0291 Compact CPU Module

Technical Specifications

Model:X20CP0291

Brand:B&R

Product Type:X20 system compact CPU module

Applicable System:B&R X20 PLC system,for compact machine automation control

Processor:Embedded µP16 with additional I/O processor

User SRAM:100 kB

User FlashPROM:1 MB

Data Retention:Battery‑free design

Communication Interface:1×100BASE‑T Ethernet,CAN bus,RS232

Power Consumption:2.7 W

Installation:Install on X20BB series bus base module,terminal block and power supply ordered separately

Indicator:Status LED for CPU operation and Ethernet communication

Degree of protection:IP20

Certification:CE,cUL‑us,ATEX Zone2,UKCA,DNV,CCS,LR,ABS,BV marine certification,KC

Working temperature:‑25℃ ~ +60℃(horizontal mounting),‑25℃ ~ +50℃(vertical mounting)

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5‑95% non‑condensing,pollution degree 2

Built‑in function

X20CP0291 compact CPU executes user control program,battery‑free design avoids battery maintenance work. Integrate Ethernet,CAN and RS232 multi‑communication interfaces for host connection and field device interaction. LED indicators show CPU and network running status,support X20 local and distributed X2X‑Link I/O stations.

Product Brief

X20CP0291 belongs to B&R X20 I/O system family,it is compact economy CPU for small‑and‑medium automation equipment. Bus base,power supply and terminal block must be purchased separately. Widely used for original B&R automation equipment maintenance and renovation. Before purchase,please confirm program memory and communication interface requirement. ESD anti‑static protection shall be followed during installation
