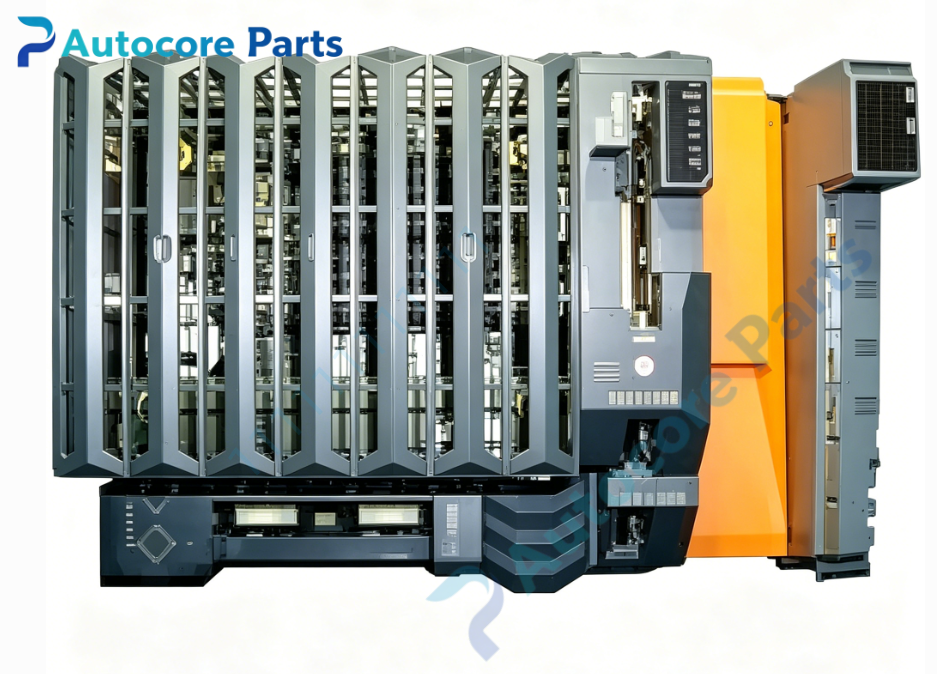

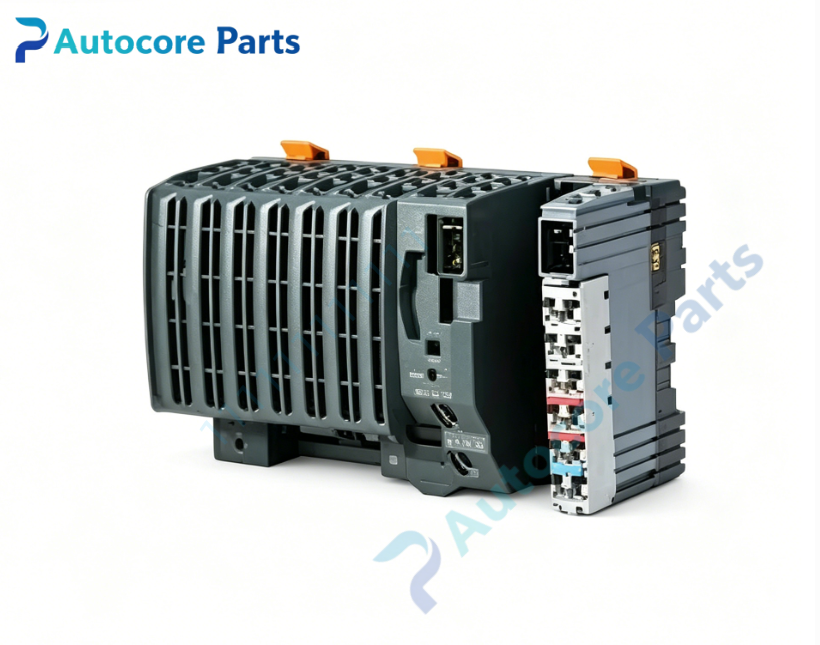

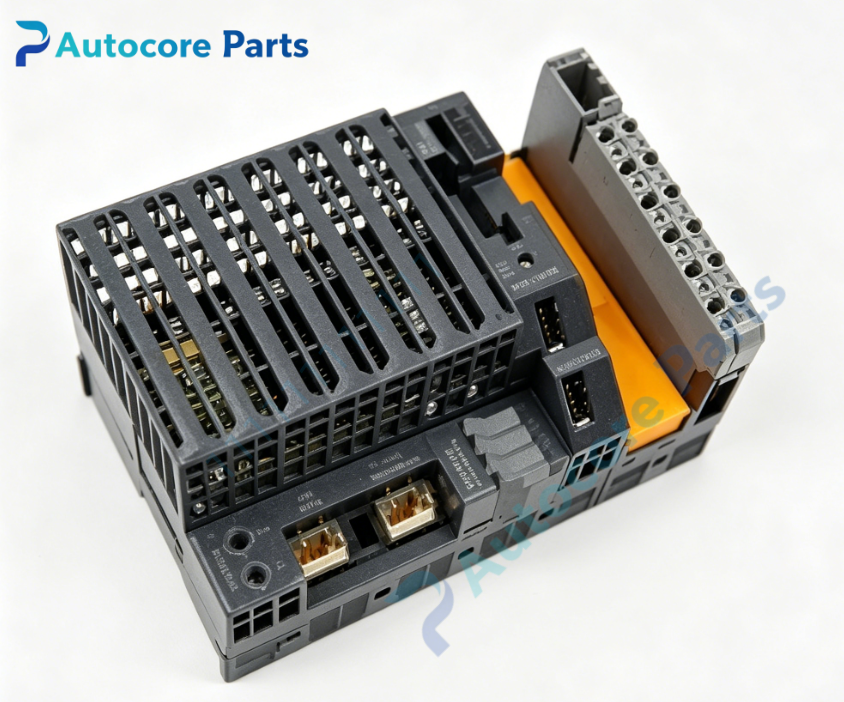

B&R X20CP1483 CPU Controller Module

Technical Specifications

Model:X20CP1483

Brand:B&R

Product Type:X20 system entry‑level x86 CPU controller module

Applicable System:B&R X20 PLC system,applied for medium‑size machine automation,real‑time motion control with POWERLINK

Processor:x86‑compatible 100MHz,floating‑point unit FPU,16kB L1 cache

SDRAM:32 MB

User SRAM:128 kB

Storage:CompactFlash card slot for application memory

Real‑Time Clock:battery‑buffered real‑time clock,lithium battery(min 3 years service life)

Communication Interface:1×10/100BASE‑T Ethernet,POWERLINK V1/V2,RS232,2×USB,1×X2X‑Link,1 slot for optional interface module

Shortest Task Cycle:1 ms

Power Consumption:6 W(without CF‑card,interface module and USB load)

Installation:Install on X20BB80 bus base module,terminal block and right end cover included in delivery

Indicator:Multi‑color LED for CPU,Ethernet,POWERLINK,CompactFlash,battery status diagnosis

Degree of protection:IP20

Certification:CE,cUL‑us,ATEX Zone2,UKCA,DNV,CCS,LR,ABS,BV marine certification

Working temperature:‑25℃ ~ +60℃(horizontal mounting),‑25℃ ~ +50℃(vertical mounting)

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5‑95% non‑condensing,pollution degree 2

Built‑in function

X20CP1483 fanless CPU executes IEC61131‑3 user control program,supports POWERLINK real‑time motion control for ACOPOS drives. CompactFlash slot enables convenient program backup and migration. One expansion slot supports additional communication interface modules. Lithium battery buffers real‑time clock and remanent variables,multi‑channel LED indicators offer fast on‑site fault diagnosis,support local X20 I/O and distributed X2X‑Link remote stations.

Product Brief

X20CP1483 belongs to B&R X20 I/O system family,it is entry‑level fanless x86 controller for medium‑size automation equipment. CompactFlash memory card needs to be ordered separately. Widely used for original B&R automation equipment maintenance and renovation. Before purchase,please verify memory requirement and interface compatibility. ESD anti‑static protection shall be followed during installation
