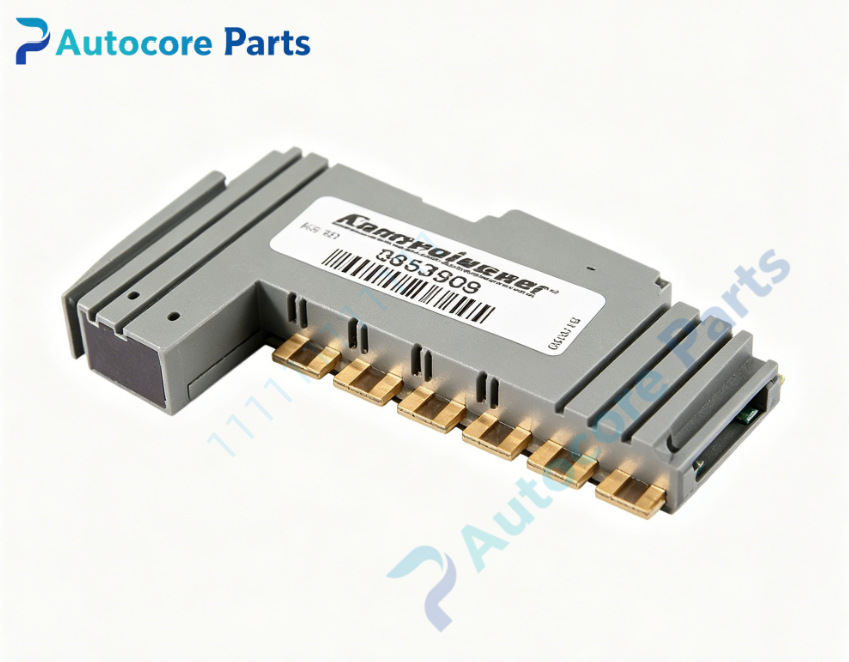

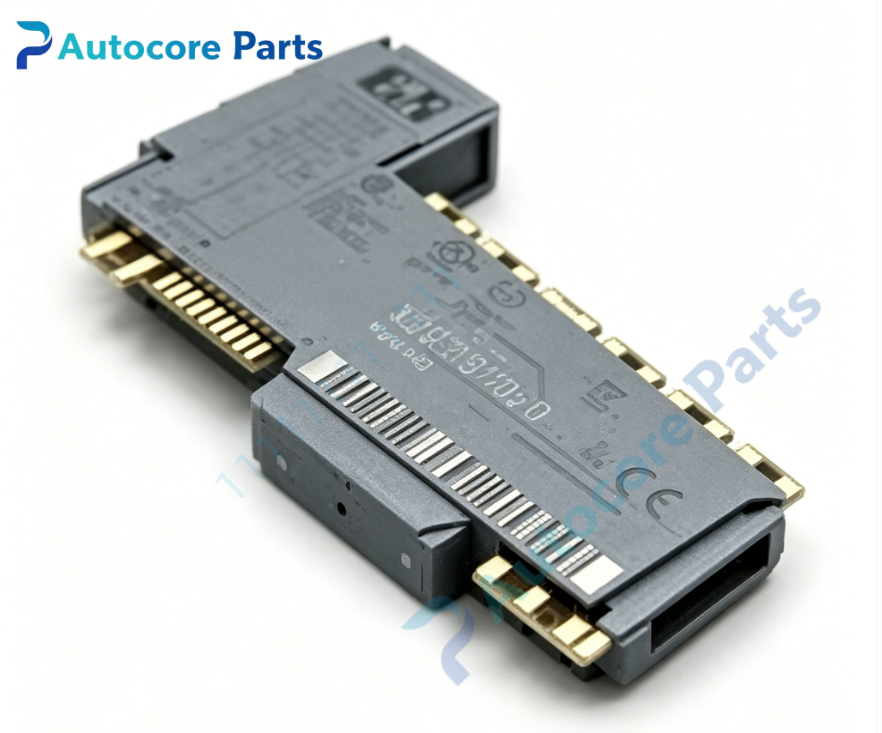

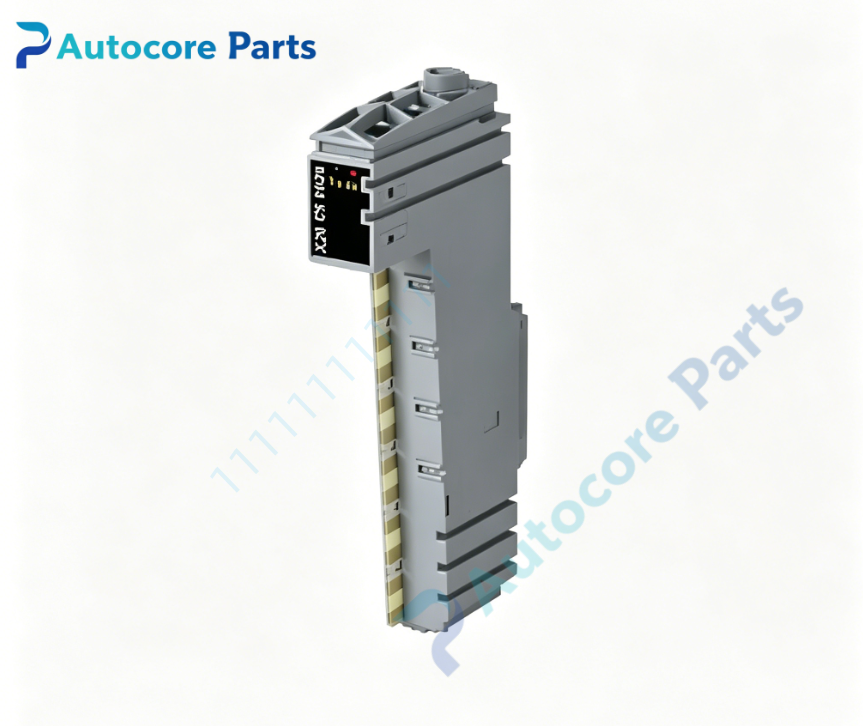

B&R X20CS1020 Serial Communication Interface Module

Technical Specifications

Model:X20CS1020

Brand:B&R

Product Type:X20 system serial communication interface module

Applicable System:B&R X20 PLC system,realize serial communication with barcode reader,printer,serial instruments and other field devices

Interface:1×RS232(software configurable RS422/RS485)

Max Baud Rate:115.2 kbit/s

FIFO Buffer:1 kB

Handshake Mode:RTS/CTS hardware handshake,XON/XOFF software handshake

Chipset:16C550 compatible UART

Connection:Match X20TB12 12‑pin terminal block for field wiring

Power Consumption:1.44 W

Installation:Install on X20BM series bus module,support local station and distributed X2X‑Link remote station

Degree of protection:IP20

Certification:CE,cUL‑us,ATEX Zone2,UKCA,DNV,CCS,LR,ABS,BV marine certification,KC

Working temperature:‑25℃ ~ +60℃(horizontal mounting),‑25℃ ~ +50℃(vertical mounting)

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5‑95% non‑condensing,pollution degree 2

Built‑in function

X20CS1020 serial communication module expands serial port resource for X20 controller,realizes data interaction with serial devices such as barcode scanners,printers and measuring instruments. Interface parameter configuration completed by Automation Studio software,no hardware DIP switch required. 1kB FIFO buffer improves data transmission stability,supports local X20 station and X2X‑Link distributed remote I/O station deployment.

Product Brief

X20CS1020 belongs to B&R X20 I/O system family,it is dedicated RS232 serial communication expansion module for X20 system. X20TB12 terminal block needs to be ordered separately. Widely used for original B&R automation equipment maintenance and renovation. Before purchase,please confirm serial protocol and baud rate requirement. ESD anti‑static protection shall be followed during installation
