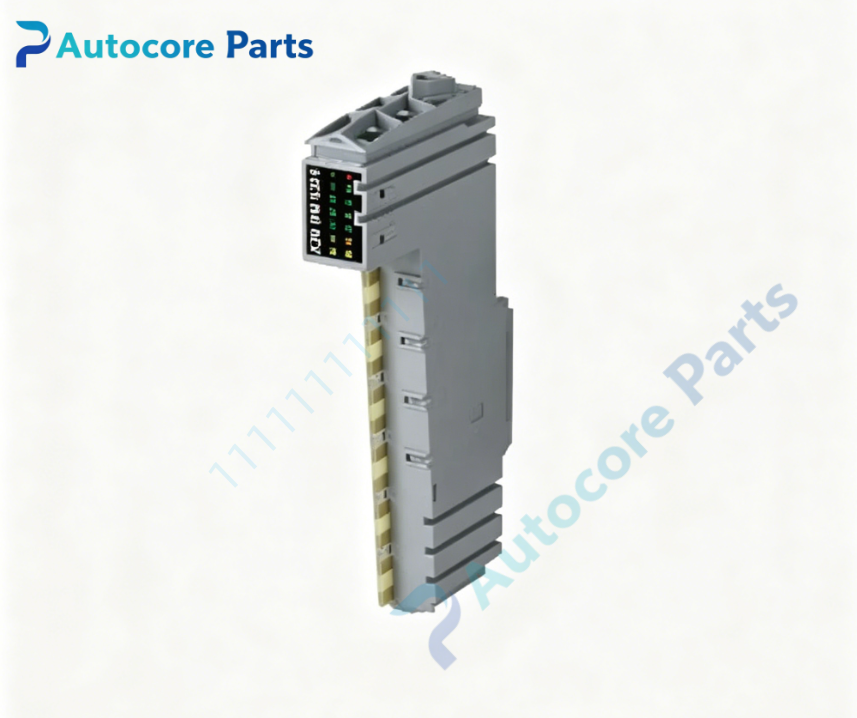

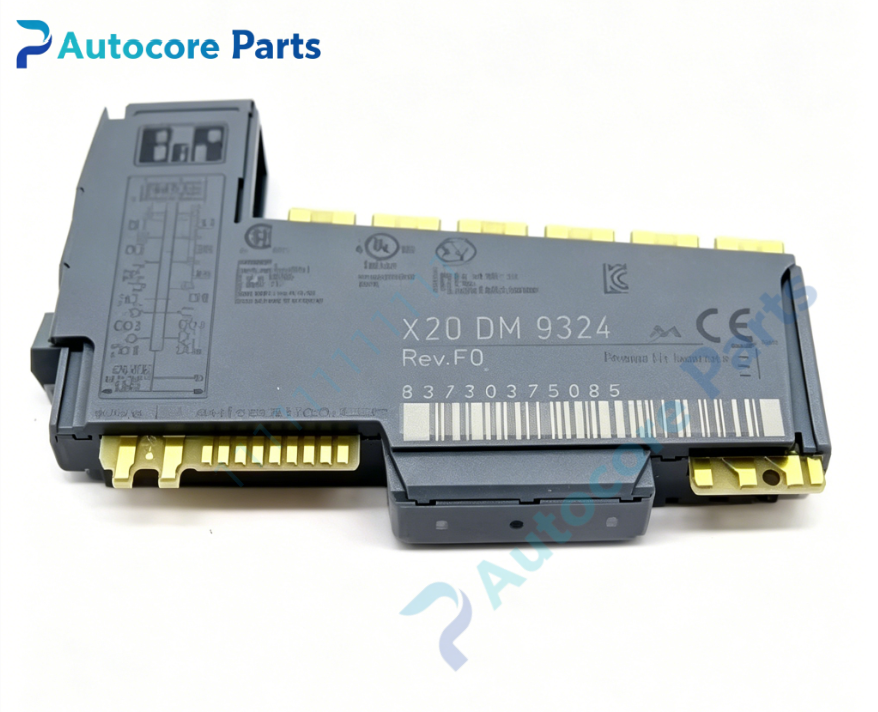

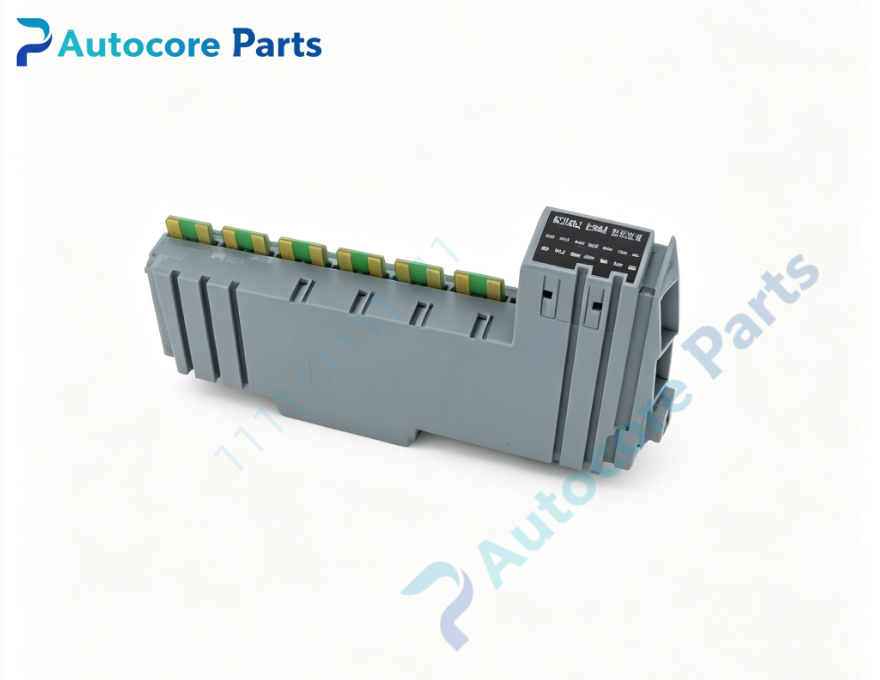

B&R X20DM9324 Digital Mixed I/O Module

Technical Specifications

Model:X20DM9324

Brand:B&R

Digital input:8‑channel sink PNP conforming to EN61131‑2 Type1

Digital output:4‑channel source PNP

Rated voltage:24VDC(-15% / +20%)

Per‑channel output current:0.5A

Input filter:Hardware ≤100µs;software filter 0‑25ms adjustable in 0.2ms step

Output protection:Integrated short‑circuit and overload protection

Switching threshold:input low <5VDC,high >15VDC

Power consumption:0.21W(bus logic),0.5W(I/O circuit)

Protection class:IP20

Horizontal operating temperature:‑25℃ ~ +60℃

Vertical operating temperature:‑25℃ ~ +50℃

Storage temperature:‑40℃ ~ +85℃

Built‑in function

X20DM9324 mixed I/O module combines digital input and output channels within single unit for X20 control system. 1‑wire wiring reduces cabinet wiring workload. Configurable input filter suppresses industrial interference signals. Built‑in output short‑circuit protection improves field‑side reliability,support local X20 I/O and distributed X2X‑Link remote stations deployment.

Product Brief

X20DM9324 belongs to B&R X20 I/O system family,it is mixed digital I/O module for compact automation stations. Coated variant X20cDM9324 is available for harsh environment. X20BM11/X20BM15 bus module and X20TB12 terminal block need to be ordered separately. Widely used for original B&R automation equipment maintenance and renovation. Before purchase,please confirm input‑output channel quantity requirement. ESD anti‑static protection shall be followed during installation
