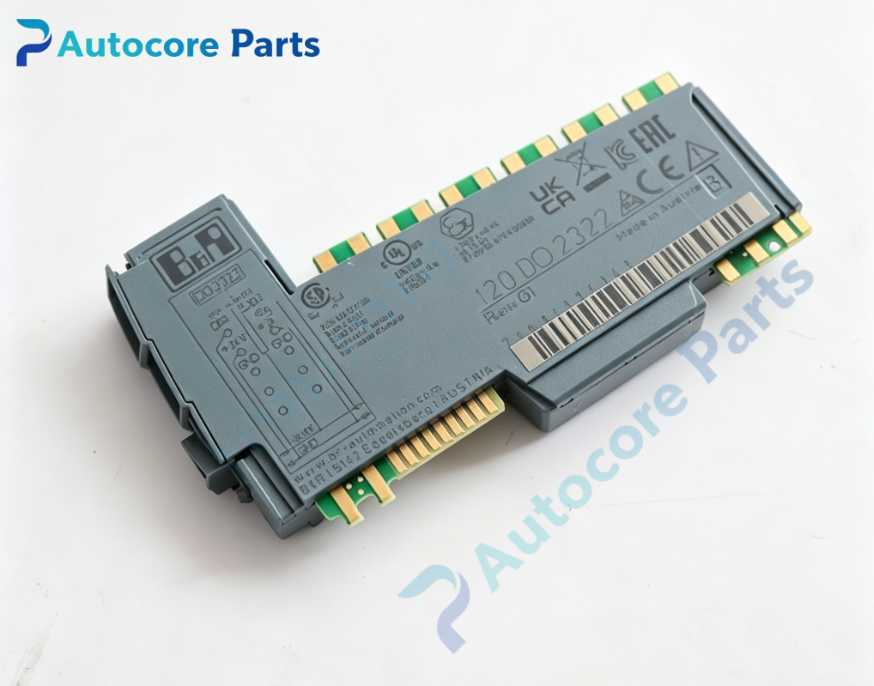

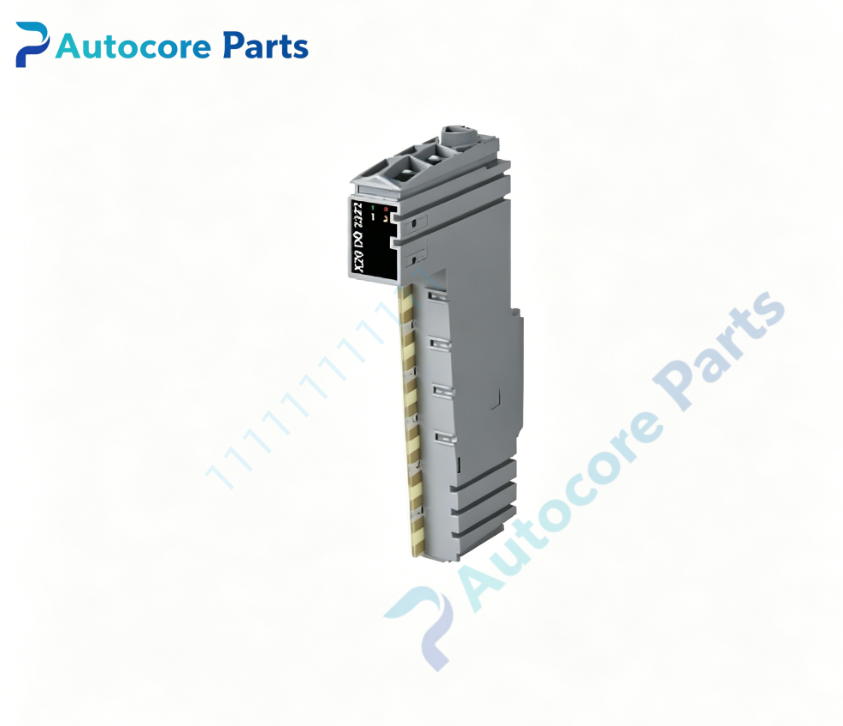

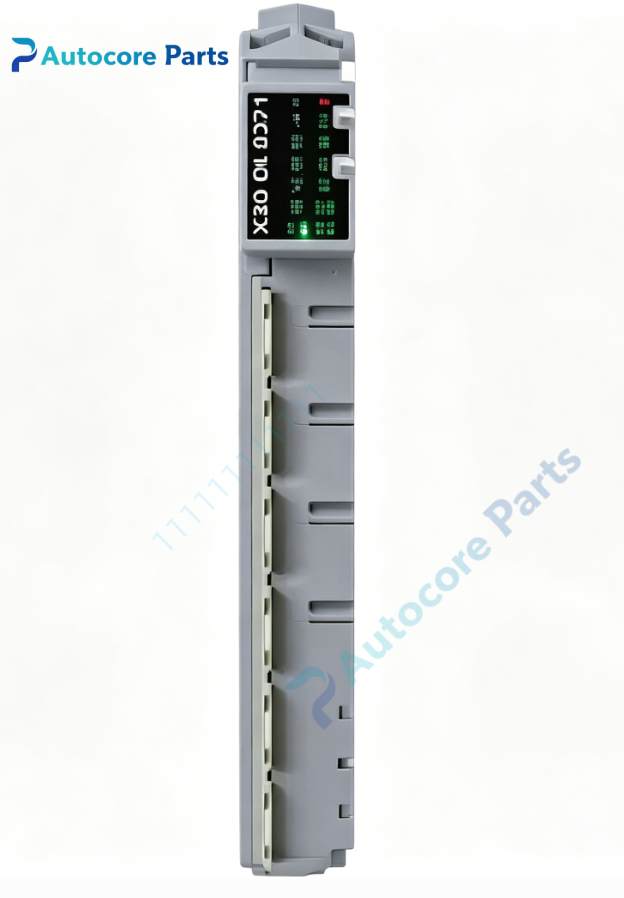

B&R X20DO2322 Digital Output Module

Technical Specifications

Model:X20DO2322

Brand:B&R

Output channel:2‑channel digital output

Output type:Source PNP

Rated voltage:24VDC(-15% / +20%)

Per‑channel current:0.5A

Total output current:1A

Connection:3‑wire connection,built‑in 24VDC and GND actuator power supply

Switching frequency:max 500Hz for resistive load

Protection:thermal shutdown for short‑circuit / overload,integrated freewheeling diode for inductive load

Leakage current(output off):5µA

Rds(on):210mΩ

Power consumption:0.13W(bus logic),0.33W(I/O circuit)

Protection class:IP20

Horizontal operating temperature:‑25℃ ~ +60℃

Vertical operating temperature:‑25℃ ~ +50℃

Storage temperature:‑40℃ ~ +85℃

Built‑in function

X20DO2322 digital output module drives solenoid valves,contactors and other field actuators for X20 control system. 3‑wire wiring provides local actuator power supply. Thermal short‑circuit protection and freewheeling diode enhance reliability for inductive loads. Supports OSP operating mode,works for local X20 station and distributed X2X‑Link remote stations.

Product Brief

X20DO2322 belongs to B&R X20 I/O system family,it is 2‑channel compact source digital output module. X20BM11/X20BM15 bus module and X20TB06/X20TB12 terminal block need to be ordered separately. Widely used for original B&R automation equipment maintenance and renovation. Before purchase,please confirm output channel quantity and load type requirement. ESD anti‑static protection shall be followed during installation
