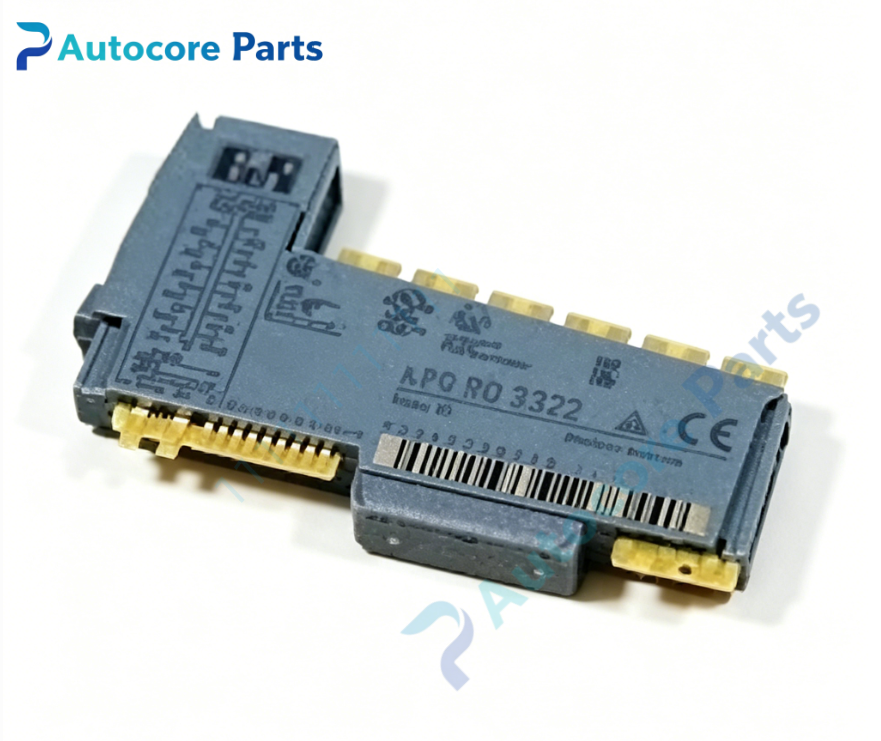

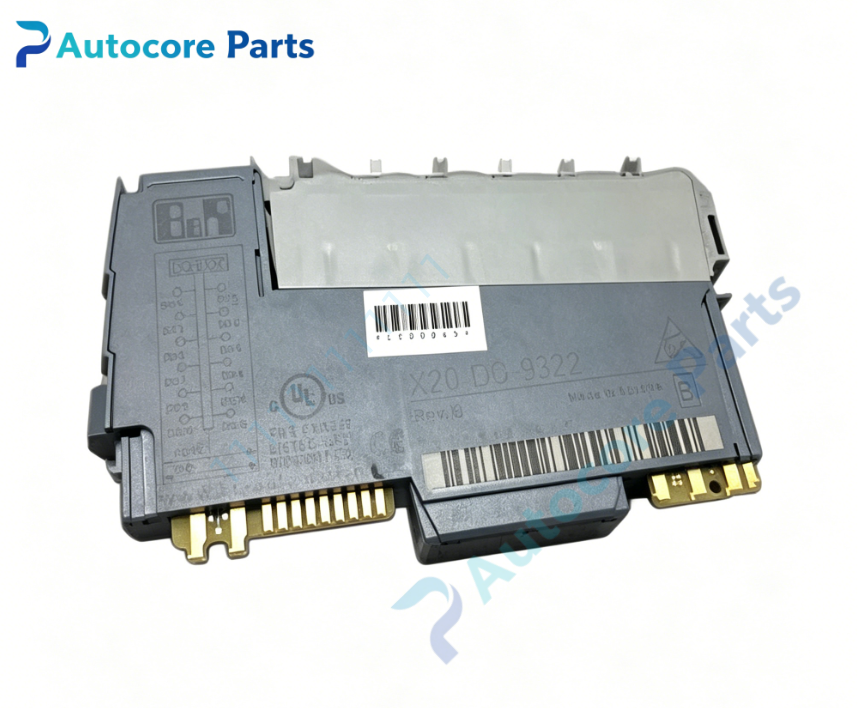

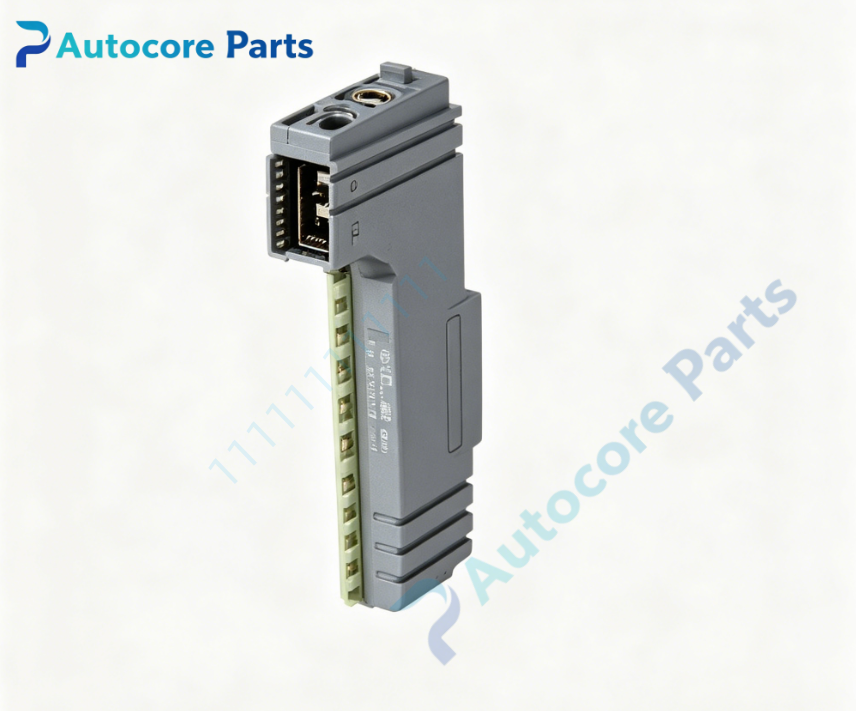

B&R X20DO9322 Digital Output Module

Technical Specifications

Model:X20DO9322

Brand:B&R

Output channel:12‑channel digital output

Output type:Source PNP

Rated voltage:24VDC(-15% / +20%)

Per‑channel current:0.5A

Total nominal current:6A

Connection:1‑wire connection

Max resistive switching frequency:500Hz

Protection:short‑circuit protection,thermal shutdown,integrated freewheeling inverse diode

Leakage current(output off):5µA

Power consumption:0.26W(bus logic),1.15W(I/O circuit)

Protection class:IP20

Horizontal operating temperature:‑25℃ ~ +60℃

Vertical operating temperature:‑25℃ ~ +50℃

Storage temperature:‑40℃ ~ +85℃

Built‑in function

X20DO9322 digital output module drives solenoid valves,contactors and indicator lamps for X20 control system. 1‑wire connection reduces cabinet wiring workload. Built‑in thermal short‑circuit protection and freewheeling diode improve reliability for inductive loads. Supports local X20 I/O and distributed X2X‑Link remote stations deployment.

Product Brief

X20DO9322 belongs to B&R X20 I/O system family,coated variant X20cDO9322 available for harsh environment. X20BM11/X20BM15 bus module and X20TB12 terminal block need to be ordered separately. Widely used for original B&R automation equipment maintenance and renovation. Before purchase,please confirm output channel quantity and load requirement. ESD anti‑static protection shall be followed during installation
