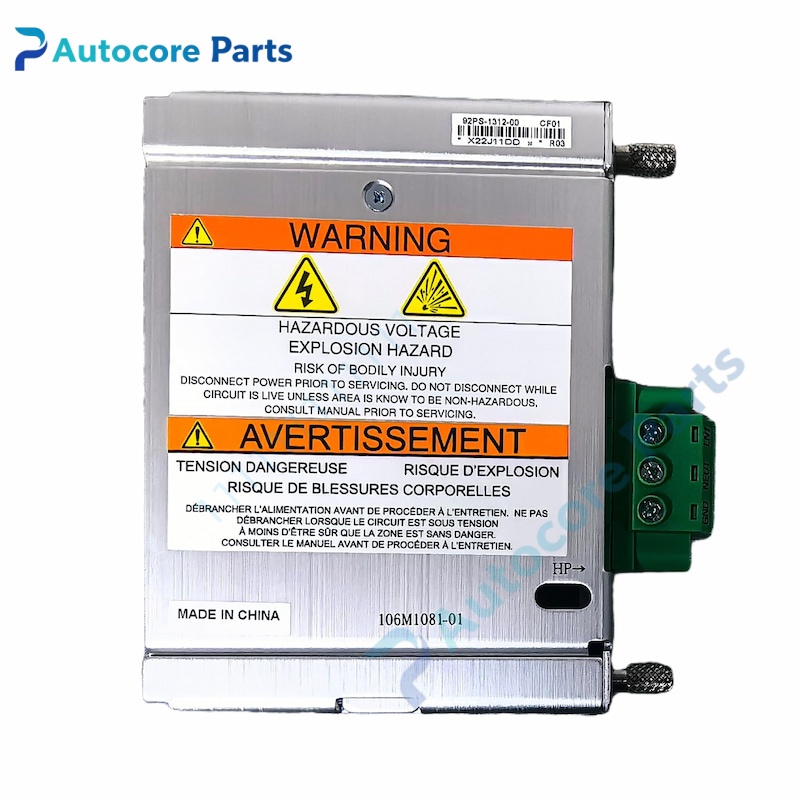

Bently Nevada 106M1081‑01 Universal AC Power Input Module

Technical Specifications

Model: 106M1081‑01

Brand: Bently Nevada

Product Type: Universal AC power input module(PIM)

Matching Power Module: 106M1079‑01 universal AC power supply module

Input Voltage: 85‑264 VAC universal input

Input Frequency: 47‑63 Hz

Max Input Current: 2.8 A

Protection: Built‑in over‑voltage,over‑current protection

Installation: Half‑height module,install at left dedicated power slot of 3500 rack

Remark: Can not work independently; must pair with 106M1079‑01; support hot‑swap for redundant configuration

Module Form: Half‑height rack‑mount plug‑in module

Weight: 0.40 kg

Dimension: 120 mm×100 mm×25 mm

Protection Grade: IP20

Certification: UL,CSA,CE

Working Temperature: ‑30℃ ~ +65℃,non‑condensing

Storage Temperature: ‑40℃ ~ +85℃

Humidity: 5%‑95% non‑condensing

Application: Turbine,compressor rotating machinery TSI protection system,power input interface for 3500/15 power group,system maintenance and spare‑part replacement.

Product Details

106M1081‑01 is universal AC power input module(PIM) for Bently Nevada 3500/15 power system. It is not a standalone power supply,must be used together with 106M1079‑01 power supply module to form a complete AC power unit.

It receives field AC mains power,provides filtering and over‑current protection,then transfers power to 106M1079‑01 power supply module for DC conversion and backplane power distribution. Wide‑range 85‑264VAC input adapts to global industrial power grid conditions.

Redundant dual‑power configuration supports hot‑swap replacement without shutting down whole rack. It occupies half‑height power slot on the left side of 3500 rack. It is a key component of 3500/15‑05‑05‑00 redundant power assembly.

Note: This is legacy 3500 series spare component,widely used for replacement of turbine and compressor TSI monitoring & protection systems.
