Bently Nevada 146031‑01 Copper Ethernet I/O Sub‑Module

Technical Specifications

Model: 146031‑01

Brand: Bently Nevada

Product Type: Copper Ethernet I/O sub‑module

Matching Main Module: 3500/22M TDI transient data interface front card

Interface: 10Base‑T / 100Base‑TX RJ45 copper ethernet port

Function: Transmit steady‑state measurement data,transient waveform,event log to System 1 software

Power Consumption: 3.8 W,supplied by 3500/22M main board

Remark: Can not run independently; must insert into 3500/22M front module; compare with fiber version 146031‑02

Module Form: Full‑height plug‑in rear daughter board

Weight: 0.34 kg

Dimension: 241 mm×24.4 mm×163 mm

Protection Grade: IP20

Certification: UL,CSA,CE

Working Temperature: ‑30℃ ~ +65℃,non‑condensing

Storage Temperature: ‑40℃ ~ +85℃

Humidity: 5%‑95% non‑condensing

Application: Turbine,compressor rotating machinery condition monitoring,realize high‑speed transient waveform data output of 3500 rack,system maintenance and spare‑part replacement.

Product Details

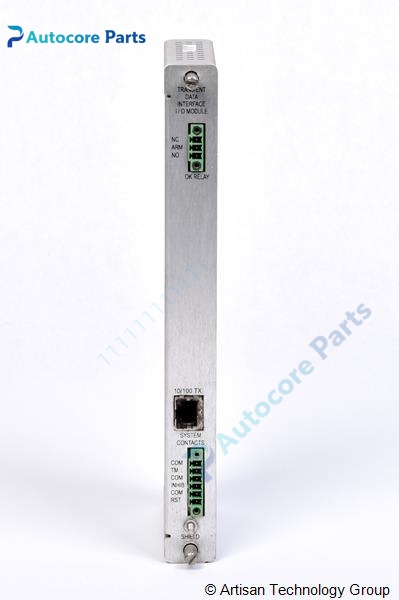

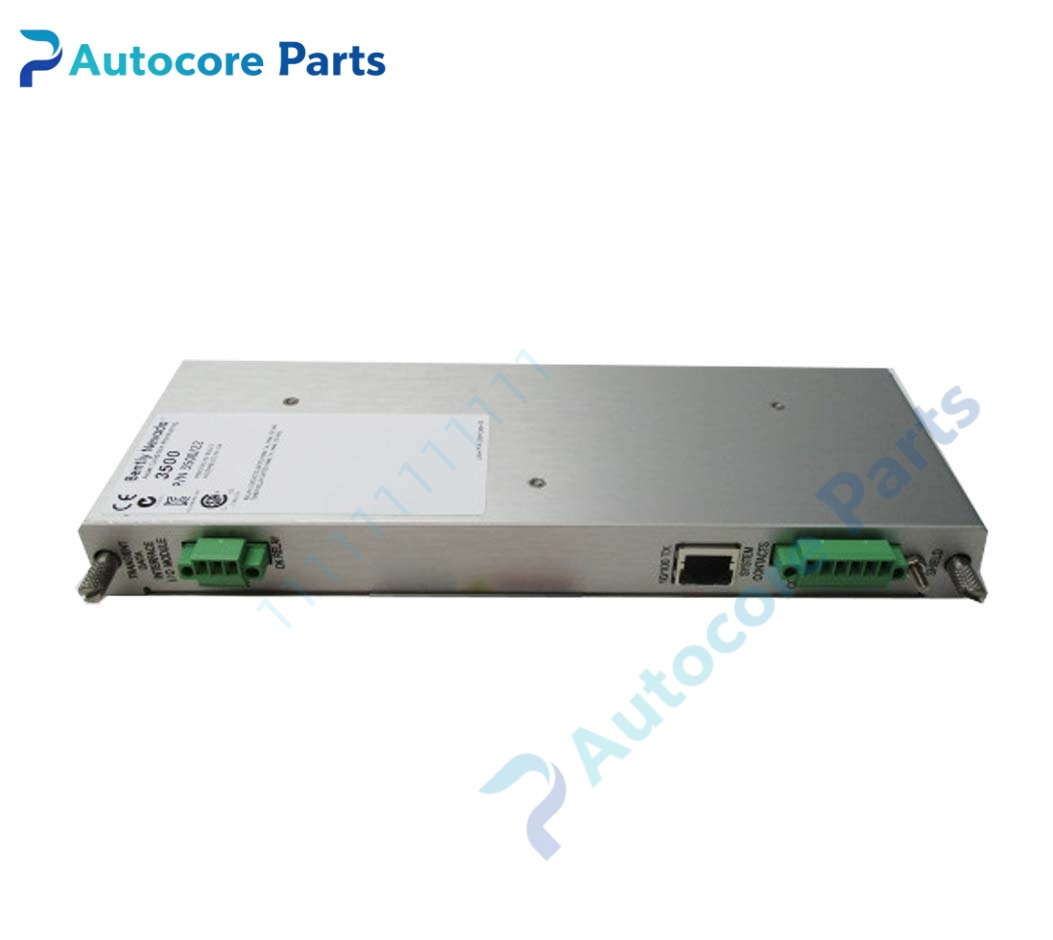

146031‑01 is copper ethernet I/O daughter board dedicated for Bently Nevada 3500/22M TDI transient data interface module. It is not an independent functional card and must be plugged into the rear slot of 3500/22M front‑panel module.

It provides standard RJ45 copper network interface,supports 10/100M adaptive ethernet. It transmits steady‑state values,alarm events and high‑speed transient waveform data collected by 3500 rack to System 1 condition monitoring software.

For long‑distance anti‑interference scene,please select fiber‑optic version 146031‑02. Gold contact variants:146031‑03(copper),146031‑04(fiber).

Note: This is legacy 3500 series spare component,widely used for replacement of turbine and compressor TSI monitoring & protection systems.
