Bently Nevada 125760‑01 3500/20 Rack Interface Module

Technical Specifications

Model: 125760‑01

Brand: Bently Nevada

Product Type: Rack interface module (RIM,3500/20)

Interface: RS232, RS422 serial port

Supported Function: rack configuration,event log reading,machine data output,connect to external configuration tool

Power Consumption: 11.0 W,supplied by 3500 rack backplane

System Compatibility: Bently Nevada 3500 machinery protection rack

Remark: Not part of protection voting path; hot‑swap supported

Module Form: Full‑height rack‑mount module

Weight: 0.78 kg

Dimension: 241 mm×24.4 mm×242 mm

Protection Grade: IP20

Certification: UL,CSA,CE

Working Temperature: ‑30℃ ~ +65℃,non‑condensing

Storage Temperature: ‑40℃ ~ +85℃

Humidity: 5%‑95% non‑condensing

Application: Turbine,compressor,pump,fans rotating machinery monitoring,completes rack configuration uploading and downloading,event and measurement data transmission,system maintenance and spare‑part replacement.

Product Details

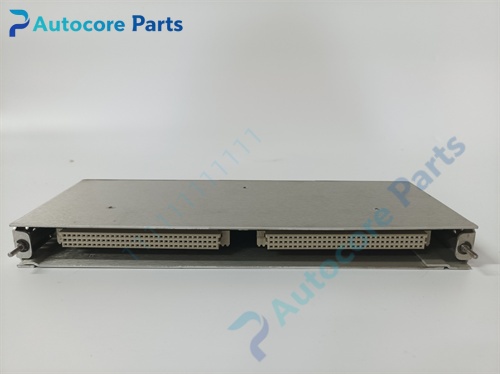

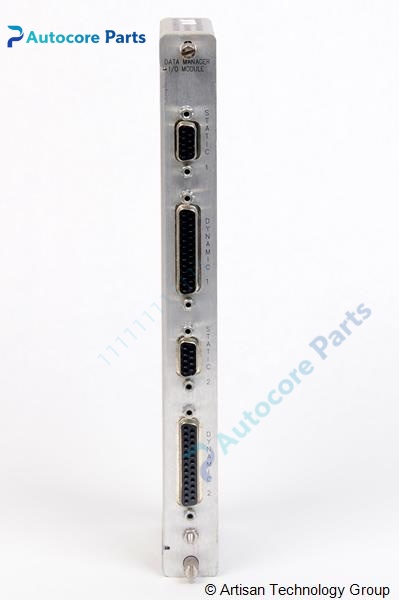

125760‑01 is 3500/20 rack interface module (RIM) for Bently Nevada 3500 machinery protection rack. It serves as main man‑machine communication gateway for the whole rack.

It provides RS232 and RS422 physical serial interfaces. Users can connect external configuration software to finish rack parameter upload and download. It outputs real‑time measurement data,alarm status and historical event logs. This module does not participate in hardware protection voting logic,system protection function keeps working when RIM fails. It supports hot‑swap operation.

For TMR triple‑modular‑redundant system,please select corresponding TMR version RIM module.

Note: This is legacy 3500 series spare component,widely used for replacement of turbine and compressor TSI monitoring & protection systems.
