Bently Nevada 3500/20 Rack Interface Module

Technical Specifications

Model: 3500/20

Brand: Bently Nevada

Product Type: Rack interface module(RIM)

Spare Part No: 125744‑02 standard;125744‑01 TMR version

I/O Sub‑module Options: 125768‑01(RS232/RS422);135031‑01(build‑in modem)

Slot Requirement: Must install in slot 1 adjacent to power supply

Communication Interface: RS232,RS422,front‑panel RS232 debug port

Baud Rate: Max 38.4 k baud

Relay Output: OK relay,5A@250VAC resistive load,normally energized

Power Consumption: 4.75 W typical,supplied by 3500 rack backplane

Indicator LED: OK,TX/RX,TM,CONFIG OK

System Compatibility: Bently Nevada 3500 machinery protection rack

Remark: Not involved in hardware protection voting path;support hot‑swap;one RIM per rack

Module Form: Full‑height rack‑mount module

Weight: 0.91 kg

Dimension: 241 mm×24.4 mm×242 mm

Protection Grade: IP20

Certification: UL,CSA,CE

Working Temperature: ‑30℃ ~ +65℃,non‑condensing

Storage Temperature: ‑40℃ ~ +85℃

Humidity: 5%‑95% non‑condensing

Application: Turbine,compressor,pump,fans rotating machinery monitoring,complete rack parameter configuration upload/download,real‑time data,alarm and event log output,system maintenance and spare‑part replacement.

Product Details

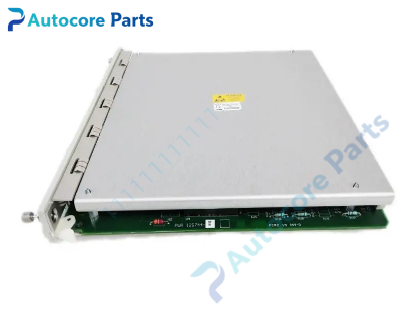

3500/20 RIM is the essential main communication gateway for Bently Nevada 3500 machinery protection rack. It must be placed in slot 1 next to power supply position,each rack requires one unit.

It provides front‑panel RS232 debug port and rear I/O sub‑board interfaces. It supports rack configuration,parameter upload and download,reading measurement data,alarm status and historical event logs. It can connect to external communication processors such as TDXnet,TDIX,DDIX.

This module does not participate in hardware protection voting logic. Even if RIM fails,the protection trip function of whole rack still works normally. Hot‑swap replacement is supported. Two versions available: standard RIM and TMR triple‑modular‑redundant RIM for TMR system. Different I/O sub‑modules can be selected for modem or RS232/RS422 function.

Note: This is legacy 3500 series spare component,widely used for replacement of turbine and compressor TSI monitoring & protection systems.
