Bently Nevada 3500/05‑02‑05‑00‑00‑01 Mini System Rack

Technical Specifications

Model: 3500/05‑02‑05‑00‑00‑01

Brand: Bently Nevada

Product Type: Mini system rack

Configuration Code: 02=12‑inch mini rack; 05=rack‑mount installation; 00=no agency approval; 00=special option none; 01=standard backplane

Available Slots: 7 functional module slots, reserved slots for power supply and TDI module

Backplane: Integrated internal communication & power distribution backplane

Mounting Standard: 19‑inch EIA rack‑mount rail installation

Material: Aluminum alloy housing

Weight: 5.8 kg

Dimension: 482.6 mm×349.25 mm×265.94 mm

Protection Grade: IP20

Working Temperature: ‑30℃ ~ +65℃,non‑condensing

Storage Temperature: ‑40℃ ~ +85℃

Humidity: 5%‑95% non‑condensing

System Compatibility: All 3500 series monitor,power supply,keyphasor and communication modules

Application: Turbine,compressor,pump,fans rotating machinery monitoring,provides installation carrier and backplane bus for 3500 series modules,system cabinet transformation and spare‑part replacement.

Product Details

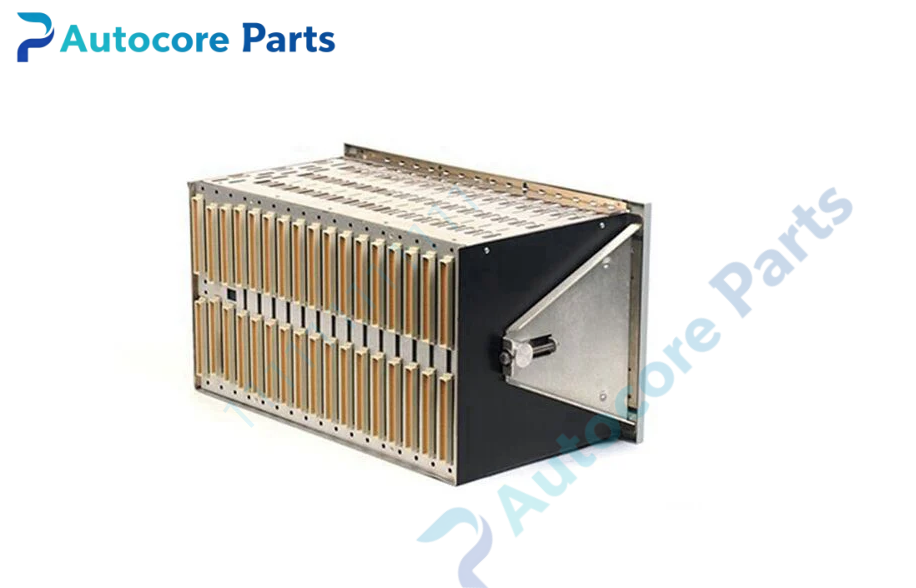

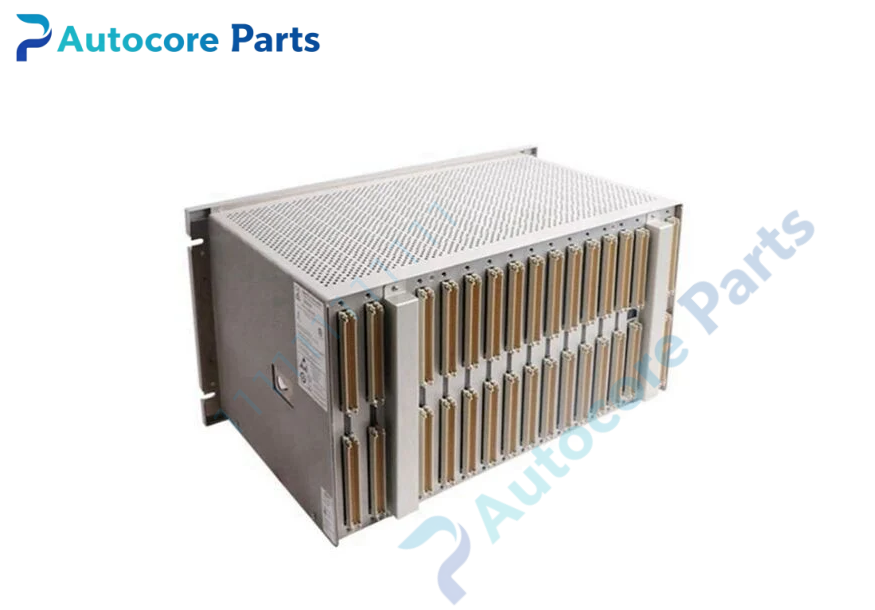

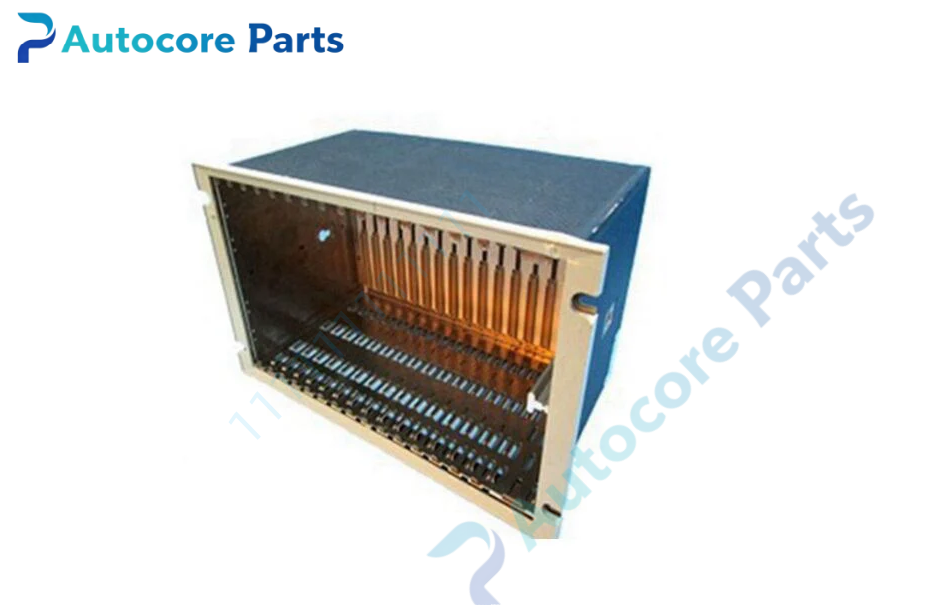

3500/05‑02‑05‑00‑00‑01 is a 12‑inch mini‑size system rack of Bently Nevada 3500 machinery protection system. It adopts rack‑mount installation mode and provides 7 available functional slots besides reserved positions for power supply and TDI module.

The integrated backplane completes internal module communication and power distribution. It supports hot‑swap function of 3500 series modules. It can be equipped with monitor modules,power supply modules,keyphasor modules,communication gateway modules and relay modules according to site requirements.

This mini‑rack is suitable for limited cabinet space scenarios. The I/O daughter boards are installed on the rear side of the rack. It matches API 670 machinery protection standard for TSI system configuration.

Note: This is legacy 3500 series spare component,widely used for replacement of turbine and compressor TSI monitoring & protection systems.
