Extreme Networks 25G-LR-SFP10KM-SFP28 SFP28 Optical Transceiver

Technical SpecificationsModel：25G-LR-SFP10KM-SFP28 Brand：Extreme Networks Product Type：Hot-pluggable SFP28 optical transceiver

Interface: LC duplex connector Rate: 25.78125Gbps 25GBASE-LR Wavelength: 1310nm DFB laser Fiber type: Single mode fiber (SMF OS1/OS2 G.652) Max reach: 10km Diagnostic: DOM / DDM digital optical monitoring Operating voltage: 3.3V Transmit power: -7 ~ +2 dBm Receiver sensitivity: -11.3 dBm (with RS-FEC enabled) Max power consumption: ≤1.5W

Physical Parameter Weight：0.08kg Dimension：13.5mm(H) ×22mm(W) ×90mm(D) Operating temperature：0℃ ~ +70℃ Storage temperature：-40℃ ~ +85℃ Relative humidity：5%~95%, non-condensing

System compatibility

25G-LR-SFP10KM-SFP28 is Extreme original 25G SFP28 singlemode transceiver. Compatible with Extreme VSP and Summit series switches equipped with SFP28 slots. RS-FEC must be enabled on the host port for normal 25G operation. Supports DOM real-time monitoring of optical power, temperature, supply voltage and laser bias current. Widely used for data center leaf-spine interconnection and enterprise 25G backbone singlemode fiber links.

Function

25G-LR-SFP10KM-SFP28 converts 25G electrical signal into optical signal for single-mode fiber transmission at 1310nm wavelength. Built-in CDR for signal recovery. DOM function can read transceiver working parameters in real time. This module is used for 10km 25G point-to-point singlemode fiber interconnection between data center switches.

Installation

Wear ESD anti-static wrist strap. Insert the SFP28 module fully into the SFP28 port of switch. Connect LC singlemode fiber patch cord. Enable RS-FEC on the switch port. Power on the equipment, verify module identification, DOM optical power reading and link status via switch CLI before commissioning.

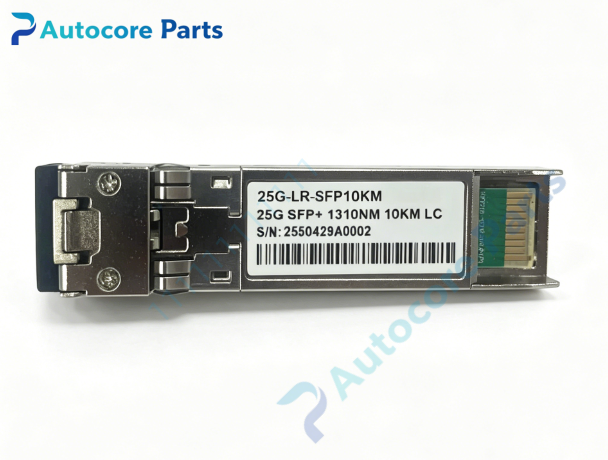

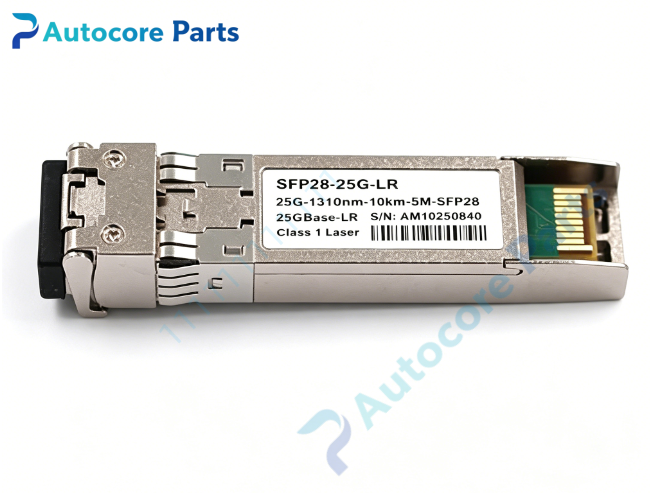

InterfaceSFP28 gold finger, LC duplex fiber port, status indicator for Extreme Networks 25G-LR-SFP10KM-SFP28.

FeatureOriginal Extreme 25GBASE-LR SFP28 optical transceiver,1310nm wavelength,10km singlemode transmission,built-in CDR and DOM digital diagnostic function,hot-pluggable,LC duplex interface,low power consumption. This spare is designed for 25G long haul singlemode fiber interconnection for data center and core enterprise backbone.

DiagnosticModule undetected: Check gold finger cleanliness, SFP28 port health.

No optical link: Verify fiber polarity, singlemode fiber quality and confirm host RS-FEC configuration.

Low transmit / receive optical power alarm: Dirty fiber endfaces or damaged singlemode fiber cables.

DOM read failure: Confirm switch firmware supports DOM function.

Over-temperature alarm: Check equipment cabinet ventilation and heat dissipation.

Link unstable: Verify FEC is active and fiber attenuation is within specification range.

Product Brief25G-LR-SFP10KM-SFP28 is Extreme Networks hot-pluggable SFP28 singlemode optical transceiver with 1310nm wavelength and max 10km transmission,classic spare part for data center 25G singlemode fiber backbone link overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
