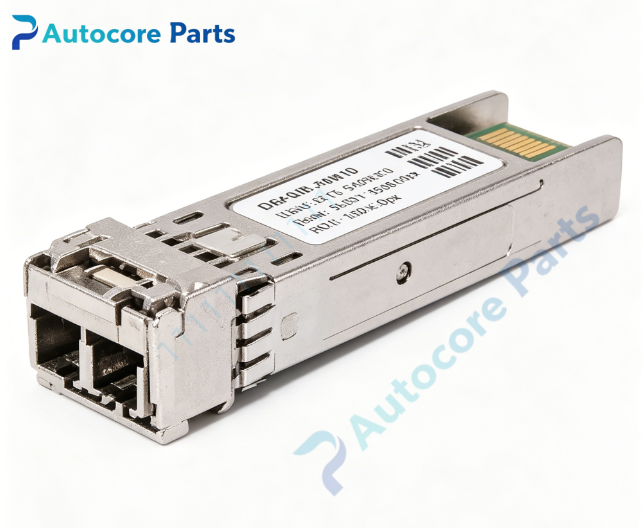

Extreme Networks 25G-SR-SFP100M SFP28 Optical Transceiver

Technical SpecificationsModel：25G-SR-SFP100M Brand：Extreme Networks Product Type：Hot-pluggable SFP28 optical transceiver

Interface: LC duplex connector Rate: 25.78125Gbps 25GBASE-SR Wavelength: 850nm VCSEL laser Fiber type: Multimode fiber (MMF OM3/OM4) Max reach: 70m OM3,100m OM4 Diagnostic: DOM / DDM digital optical monitoring Operating voltage: 3.3V Transmit power: -8.4 ~ +2.4 dBm Receiver sensitivity: -10.3 dBm (RS-FEC enabled) Max power consumption: ≤1.5W

Physical Parameter Weight：0.08kg Dimension：13.5mm(H) ×22mm(W) ×90mm(D) Operating temperature：0℃ ~ +70℃ Storage temperature：-40℃ ~ +85℃ Relative humidity：5%~95%, non-condensing

System compatibility

25G-SR-SFP100M is Extreme original 25G SFP28 multimode transceiver. Compatible with Extreme VSP and Summit series switches equipped with SFP28 slots. RS-FEC must be enabled on the host port for stable 25G link operation. Supports DOM real-time monitoring of optical power, temperature, supply voltage and laser bias current. Widely used for short-range rack-to-rack 25G interconnection inside data centers.

Function

25G-SR-SFP100M converts 25G electrical signal into optical signal for multimode fiber transmission at 850nm wavelength. Built-in CDR for signal recovery. DOM function can read transceiver working parameters in real time. This module is used for 25G point-to-point multimode fiber connection between adjacent server racks in computer room.

Installation

Wear ESD anti-static wrist strap. Insert the SFP28 module fully into the SFP28 port of switch. Connect LC multimode fiber patch cord. Enable RS-FEC on the switch port. Power on the equipment, verify module identification, DOM optical power reading and link status via switch CLI before commissioning.

InterfaceSFP28 gold finger, LC duplex fiber port, status indicator for Extreme Networks 25G-SR-SFP100M.

FeatureOriginal Extreme 25GBASE-SR SFP28 optical transceiver,850nm wavelength,short-range multimode transmission,built-in CDR and DOM digital diagnostic function,hot-pluggable,LC duplex interface,low power consumption. This spare is designed for 25G short haul multimode fiber interconnection inside data center.

DiagnosticModule undetected: Check gold finger cleanliness, SFP28 port health.

No optical link: Verify fiber polarity, multimode fiber grade and peer transceiver matching.

Low transmit / receive optical power alarm: Dirty fiber endfaces or damaged multimode fiber cables.

DOM read failure: Confirm switch firmware supports DOM function.

Over-temperature alarm: Check equipment cabinet ventilation and heat dissipation.

Link unstable: Verify RS-FEC is activated and fiber attenuation is within specification range.

Product Brief25G-SR-SFP100M is Extreme Networks hot-pluggable SFP28 multimode optical transceiver with 850nm wavelength and max 100m transmission on OM4 fiber,classic spare part for data center short-distance 25G multimode fiber link overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
