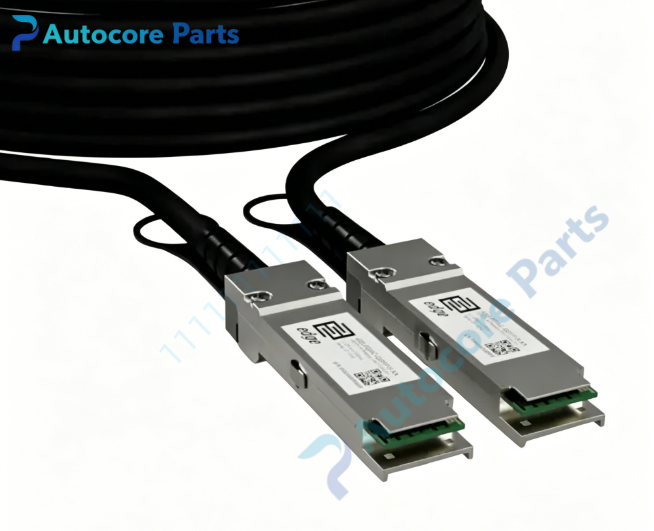

Extreme Networks 40G-DACP-QSFPZ Passive 40G QSFP+ DAC Cable

Technical SpecificationsModel：40G-DACP-QSFPZ Brand：Extreme Networks Product Type: Passive Direct Attach Copper (DAC) cable

Interface: QSFP+ male connector on both ends Speed: 40Gbps (40GBASE-CR4) Cable Length: 0.5m Cable Type: Passive copper, no power supply required Compliance: IEEE802.3ba, SFF-8436 QSFP+ MSA standard Power Consumption: Near zero power draw Operating temperature：0℃ ~ +70℃ Installation: Hot-pluggable Status: Digital diagnostic monitoring (DDM) supported

System compatibility

40G-DACP-QSFPZ is Extreme certified passive DAC cable. Compatible with Extreme switches equipped with QSFP+ ports, including X480, X670V, X870, X590 series. It can be used for regular 40G uplink connection or SummitStack-V stacking links. Only works for short-distance in-chassis or rack adjacent interconnection.

Function

40G-DACP-QSFPZ is short 0.5m passive QSFP+ to QSFP+ copper cable for data center rack internal interconnection. It delivers stable 40Gbps transmission between two QSFP+ ports. Passive design needs no external power and low heat generation. It is widely used for short-distance switch stacking, leaf-spine short connection and equipment internal high-speed interconnection. Compared with optical fiber, DAC cable has lower cost and simpler deployment for short reach application.

Installation

Insert QSFP+ connector into QSFP+ port of Extreme switch firmly. Verify cable recognition and link status via ExtremeXOS CLI. Arrange cable routing, maintain proper bending radius. Configure port speed or stacking function as required. Check link-up status after insertion.

InterfaceDual QSFP+ metal plug, copper cable assembly, cable marking sleeve for Extreme Networks 40G-DACP-QSFPZ.

FeatureOriginal Extreme Networks 40G-DACP-QSFPZ passive DAC cable,40Gbps bandwidth,0.5m short length,QSFP+ to QSFP+,zero power consumption,hot pluggable,support DDM monitoring. This spare cable is used for data center short-range 40G interconnection and switch stacking deployment.

DiagnosticCable not detected: Confirm fully inserted connector, check port disable status and firmware compatibility. No link up: Inspect connector pins for damage, re-seat cable. Link flapping: Check cable bending radius, avoid squeezing or heavy pressure on cable. DDM unreadable: Verify switch firmware version supports DAC diagnostic function.

Product Brief40G-DACP-QSFPZ is Extreme 0.5m passive 40G QSFP+ direct attach copper cable,classic spare for rack short-distance high-speed interconnection and switch stacking.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
