Extreme Networks 5520-VIM-4YE Versatile Interface Module

Technical SpecificationsModel：5520-VIM-4YE Brand：Extreme Networks Product Type: Hot-swappable versatile interface expansion module

Ports: 4 × SFP28 slots, support 10GBASE-X /25GBASE-X Speed Mode: Each port works at 10G or 25G; mixed-speed operation not supported Security: Built-in hardware MACsec (256-bit) FEC: Auto-FEC enabled for DAC and fiber links Max Jumbo Frame: 9216 bytes Supported OS: Fabric Engine / Switch Engine Operating temperature：0℃ ~ +50℃ Installation: Hot-pluggable, install in dedicated front VIM slot of 5520 chassis Weight: Approx 0.18 kg Status LED: Per-port link/activity, module health fault indicator

System compatibility

5520-VIM-4YE is exclusive VIM expansion module for Extreme 5520 series switches, including 5520-48W,5520-12MW-36W,5520-48T. Compatible with Extreme certified SFP28 optical transceivers and 10G/25G DAC cables. Supports high-speed uplink and inter-switch stacking. MACsec function can be enabled on all four ports for secure layer 2 transmission.

Function

5520-VIM-4YE is high-performance uplink expansion card for 5520 universal edge switches. It adds four SFP28 ports for 25G high-bandwidth uplink to aggregation/core switch, or run at 10G mode. Integrated hardware MACsec provides end-to-end link encryption for sensitive enterprise traffic. Auto-FEC improves transmission stability over fiber and copper DAC. Widely used for campus high-density wireless access uplink, medium data center edge interconnection and stacking upgrade.

Installation

Use ESD protection. Insert the 5520-VIM-4YE fully into 5520 VIM slot and tighten captive screws. Plug SFP28 transceiver or 25G DAC cable into ports. Verify module detection and port status via CLI. Set port speed to 10G or 25G according to Fabric Engine / Switch Engine command requirement.

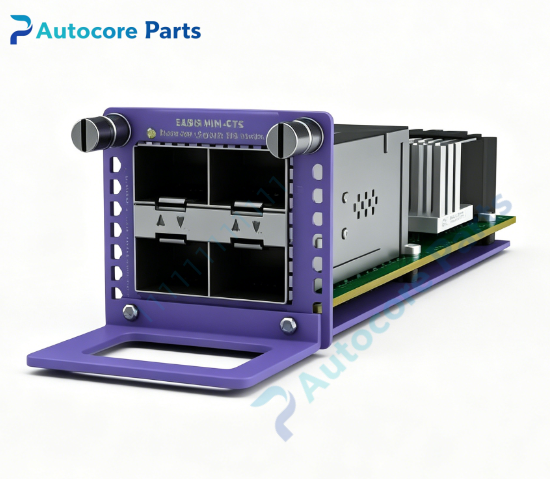

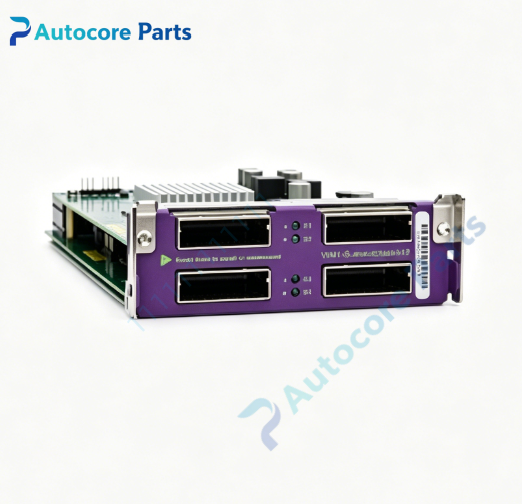

InterfaceFour SFP28 metal cages, module status LED array, backplane edge connector, captive retaining screws for Extreme Networks 5520-VIM-4YE.

FeatureOriginal Extreme Networks 5520-VIM-4YE expansion module,4×SFP28 10G/25G ports,hardware MACsec encryption,auto-FEC support,hot swappable,designed exclusively for 5520 series switches. This spare module is used for enterprise high-speed uplink expansion and secure network deployment.

DiagnosticModule undetected: Confirm fully seated module, check screw tightness and firmware compatibility. Link down: Verify SFP28 transceiver/DAC compatibility, inspect fiber end cleanliness and DDM optical readings. MACsec negotiation failure: Ensure matching MACsec security key configured on peer device. Speed mismatch: Adjust port partition/vim-speed configuration on switch CLI. High temperature alarm: Check chassis fan operation and rack ventilation.

Product Brief5520-VIM-4YE is Extreme hot-swappable 4-port SFP28 VIM expansion card with MACsec,classic spare for 5520 series switch 25G high-speed uplink upgrade.
