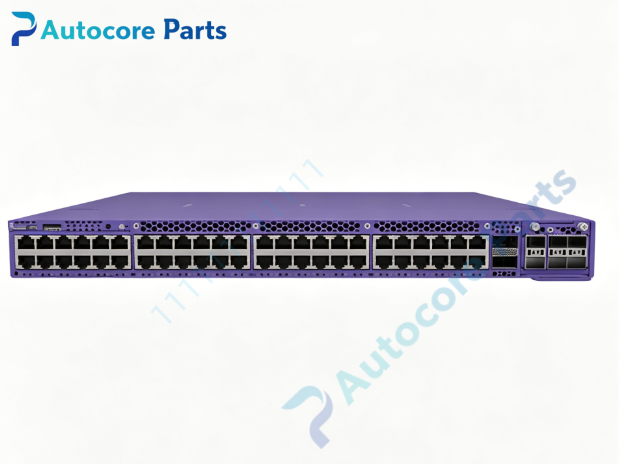

Extreme Networks 5720-48MW Multi-Gigabit PoE Universal Edge Switch

Technical SpecificationsModel：5720-48MW Brand：Extreme Networks Product Type：1U rack mount universal hardware multi-gigabit PoE++ switch

Front Ports:

• 48 × 100M/1/2.5/5GBASE-T RJ45 ports, IEEE802.3bt PoE++, max 90W per port, MACsec supported, full duplex

• 2 × QSFP28 universal stacking/uplink ports (unpopulated)

• 1 × dedicated VIM slot for high-speed expansion module

• 1 × RJ45 serial console port

• 1 × USB Micro-B console port

• 2 × USB Type-A ports for firmware upgrade and file storage

• 1 × 10/100/1000BASE-T out-of-band management port

Switch Fabric: 1280 Gbps Forwarding Rate: 810 Mpps Max Jumbo Frame: 9216 bytes VLAN Quantity: Up to 4094 VLANs MAC Address Table: 100K MAC entries Security: Full-port hardware MACsec encryption QoS: 8 hardware priority queues per port PoE Standard: IEEE802.3bt Type 4, up to 90W per port Power Supply: Dual hot-swappable PSU slots, 100-240V AC, power redundancy support Cooling: 4 hot-swappable variable-speed fan modules Software OS: Support Fabric Engine / Switch Engine Operating temperature：0℃ ~ +50℃ Mounting: Standard 19-inch 1U rack mount Weight: 9.2 kg Status LED: System, PoE power, stack ID, port link/activity indicators

System compatibility

5720-48MW belongs to Extreme 5720 universal edge/aggregation switch series. It can stack with compatible 5720 series devices. Compatible with Extreme certified QSFP28 transceivers, DAC/AOC cables and 5720 series VIM modules. Supports Layer2 switching and full Layer3 routing, hardware MACsec encryption. Ideal for Wi-Fi 6/7 high density AP, PTZ IP camera and multi-gig terminal access deployment.

Function

5720-48MW is high-performance multi-gigabit PoE++ universal switch for modern enterprise and campus networks. 48 multi-gig ports support auto negotiation up to 5G speed and deliver up to 90W PoE++ power for high-power wireless APs and high-end IP cameras. Two built-in QSFP28 ports support high-speed stacking or uplink. The front VIM slot can be fitted with VIM expansion module to add extra 25G/100G uplink ports. Full-port MACsec provides hardware link layer encryption for secure data transmission. It supports VLAN, MSTP/RSTP, 802.1X authentication, LLDP, hardware ACL and multi-level QoS scheduling. Widely used for large campus, hospital, stadium and high-density office wireless access aggregation.

Installation

Mount the switch into standard 19-inch rack. Install hot-swappable power supplies and fan modules, connect AC power cords. Use console port for initial CLI configuration. Insert QSFP28 transceivers / DAC cables and VIM module if required. Configure stacking group, PoE power priority allocation, VLAN and MACsec security policies. Verify port link status, PoE output and stack health after power on.

Interface48 multi-gig PoE++ RJ45 ports,2 QSFP28 stacking/uplink ports,1 VIM slot,RJ45 serial console,USB Micro-B console,dual USB-A,OOB management port,dual PSU bays,hot-swap fan slots and LED indicators for Extreme Networks 5720-48MW.

FeatureOriginal Extreme Networks 5720-48MW multi-gig PoE++ switch,48×5GBASE-T 90W 802.3bt ports,built-in QSFP28 stacking ports + VIM expansion slot,hot-swappable redundant PSU and fans,full-port MACsec encryption,large MAC table and hardware ACL. This spare is used for enterprise high-density Wi-Fi7 access and multi-gig edge aggregation network upgrade & replacement.

DiagnosticSwitch no power: Check AC input voltage, power supply seating and power cable integrity. PoE port no power: Check remaining PoE budget, PoE enable status and Cat6a+ copper cable quality. Multi-gig port negotiation failure: Verify Cat6a or better cable, inspect connector and auto-negotiation setting. QSFP28 port link down: Check transceiver compatibility, fiber cleanliness and DDM optical power readings. VIM module undetected: Confirm fully seated VIM card and compatible firmware version. MACsec negotiation fail: Ensure matching security key configured on peer network device. Stacking abnormal: Confirm consistent firmware version for all stack members and stacking cable integrity.

Product Brief5720-48MW is Extreme 1U 48-port 5G multi-gig PoE++ universal switch with QSFP28 stacking and VIM expansion slot,classic spare for high-power Wi-Fi 6/Wi-Fi7 access and enterprise edge aggregation.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
