Extreme Networks 71K11L4-24 7124 10G/40G Data Center Switch

Technical SpecificationsModel：71K11L4-24 (7124) Brand：Extreme Networks Product Type：1RU rack-mount wire-speed data center top-of-rack switch

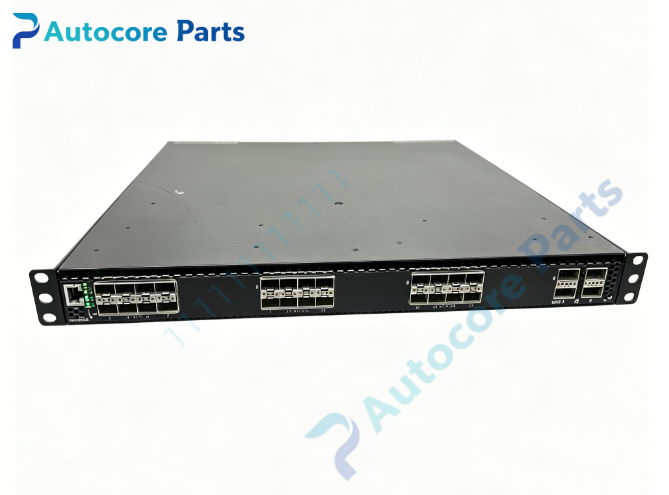

Front Ports:

• 24 × 1/10G SFP+ ports, support 1G and 10G optical transceivers / DAC cables

• 4 × 40G QSFP+ uplink ports, 40G native or breakout 4×10G

• 1 × RJ45 serial console port

• 1 × 10/100/1000BASE-T out-of-band management port

Switch Fabric: 640 Gbps Forwarding Rate: 480 Mpps Max Jumbo Frame: 9216 bytes VLAN Quantity: Up to 4094 VLANs MAC Address Table: 128K MAC entries Routing: Full IPv4 / IPv6 L3 routing, BGP, OSPF, VRRP, M-LAG QoS: 8 hardware priority queues per port Fan: 2 reversible hot-swappable fan modules included Power Supply: PSU sold separately, dual PSU slots for redundancy Software OS: ExtremeXOS Operating temperature：0℃ ~ +40℃ Mounting: Standard 19-inch 1RU rack mount, two-post rack kit included Weight: 5.3 kg Status LED: System, fan, power, port link/activity indicators

System compatibility

71K11L4-24 belongs to Extreme 7100 data center switch family. Compatible with Extreme certified SFP+, QSFP+ transceivers and DAC/AOC cables. Support M-LAG multi-chassis link aggregation, can work with other 7100 series switches for leaf-spine fabric. It supports full L2/L3 protocol stack for data center TOR networking.

Function

71K11L4-24 (7124) is 1RU top-of-rack leaf switch for enterprise and cloud data center. 24 SFP+ 10G ports connect servers and storage devices. Four QSFP+ 40G ports provide high-bandwidth uplink to spine core switch, also support breakout into 4×10G. It runs ExtremeXOS with rich data center features including M-LAG, VXLAN, dynamic routing and hardware ACL. Hot-swappable fans improve maintainability. Widely used for server rack access, virtualization cluster and medium data center leaf-spine architecture.

Installation

Mount the switch to standard 19-inch rack. Install hot-swappable fans and power supplies. Connect console cable for initial ExtremeXOS configuration. Insert SFP+/QSFP+ transceivers or DAC/AOC cables. Configure VLAN, M-LAG, routing and QoS policies. Verify port link, fan and power health after power on.

Interface24×SFP+ cages,4×QSFP+ cages,RJ45 serial console,OOB management port,dual PSU slots,hot swap fan bays and LED indicators for Extreme Networks 71K11L4-24.

FeatureOriginal Extreme Networks 71K11L4-24 data center switch,24×1/10G SFP+ +4×40G QSFP+ ports,wire-speed forwarding,M-LAG and VXLAN support,hot-swappable fan modules,ExtremeXOS L2/L3 feature set. This spare is used for data center top of rack server access and leaf-spine network deployment.

DiagnosticSwitch no power: Check PSU installation, AC input voltage and power cable. SFP+ / QSFP+ port link down: Verify optical module compatibility, fiber cleanliness and DDM optical power. M-LAG negotiation fail: Confirm peer device matching configuration and same ExtremeXOS firmware version. Fan fault alarm: Check fan seating and rack airflow. High latency: Verify jumbo frame configuration and congestion QoS queue settings. Port flapping: Inspect cable integrity, connector and transceiver condition.

Product Brief71K11L4-24 is Extreme 7100 series 1RU 24-port 10G SFP+ switch with four 40G QSFP+ uplink ports,classic spare for data center top-of-rack leaf networking.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
