Extreme Networks 7720-32C-AC-R Universal 100G Aggregation / Core Switch

Subtitle: 7720-32C-AC-R 1RU Non-Blocking Wire-Speed Switch,32 QSFP28 40G/100G Ports,Redundant AC Power,Back-To-Front Airflow

Keywords:7720-32C-AC-R, Extreme Networks,7720 series,100G QSFP28 switch,data center spine switch

Technical SpecificationsModel：7720-32C-AC-R Brand：Extreme Networks Product Type：1U rack mount universal hardware high-speed core / aggregation switch

Front Ports:

• 32 × QSFP28 ports, support 40G /100G native operation; most ports support port partitioning: breakout to 4×25G or 4×10G (Port 28 fixed 40/100G only)

• 1 × RJ45 serial console port

• 1 × USB Type‑A port for firmware and file storage

• Dual 10/100/1000BASE-T out-of-band management ports (MGMT1 / MGMT2)

Switch Fabric: 3.2 Tbps non-blocking Forwarding Rate: 2400 Mpps Max Jumbo Frame: 9216 bytes VLAN Quantity: Up to 4094 VLANs MAC Address Table: 512K MAC entries Supported Routing: Full IPv4/IPv6 L3 routing, BGP, OSPF, VRRP, EVPN, VXLAN QoS: 8 hardware priority queues per port Power Supply: Dual hot-swappable AC power supplies (included) Fans: 6 hot-swappable fan modules, back-to-front airflow (R = reverse airflow)Software OS: Dual persona universal hardware, support Fabric Engine or Switch Engine Stacking: Up to 8 units stacking under Switch Engine; stacking not available on Fabric Engine Operating temperature：0℃ ~ +40℃ Mounting: Standard 19-inch 1U rack mount Weight: 9.6 kg Status LED: System, fan, power supply, per-port link/activity indicators

System compatibility

7720-32C-AC-R belongs to Extreme 7720 universal hardware series. Compatible with Extreme certified QSFP28 optical transceivers, 100G DAC and AOC cables. Works for leaf-spine fabric core/spine or large campus aggregation. Supports integrated Application Hosting (IAH) for virtual network services.

Function

7720-32C-AC-R is high-density 100G universal switch designed for data center spine and enterprise core aggregation. 32 QSFP28 ports run at 40G or 100G, and can be breakout into multiple lower-speed 25G/10G links to connect leaf switches and servers. Back-to-front airflow fits hot-aisle cold-aisle data center layout. Dual redundant AC power and six hot-swappable fans enhance reliability. It supports EVPN/VXLAN, dynamic routing, hardware ACL and advanced security policies. Integrated application hosting allows running virtual network tools directly on the switch. Widely used for medium & large data center spine layer, cloud cluster and large campus core network.

Installation

Mount switch into standard 19-inch rack. Confirm back-to-front airflow direction matches cabinet design. Install dual AC power supplies and fan modules. Connect console port for initial OS selection and configuration. Insert QSFP28 transceivers or DAC/AOC cables. Configure port partitioning, VXLAN/EVPN, routing and stacking as required. Verify port link, fan and PSU health after power on.

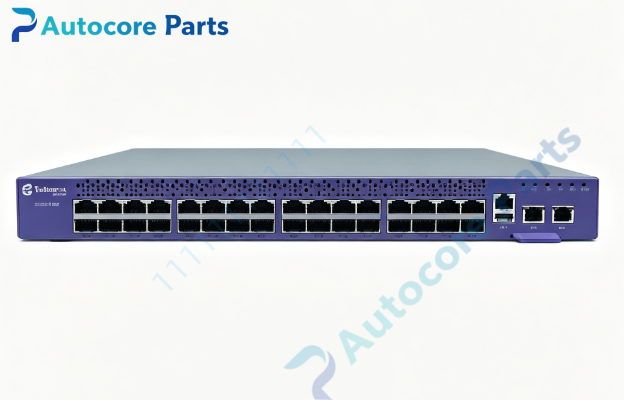

Interface32×QSFP28 cages, RJ45 serial console, dual OOB management ports, USB-A port, dual AC PSU bays, six hot-swap fan slots and LED indicators for Extreme Networks 7720-32C-AC-R.

FeatureOriginal Extreme Networks 7720-32C-AC-R universal switch,32×40/100G QSFP28 ports,non-blocking wire-speed,dual hot-swap AC PSU,back-to-front airflow,dual operating system,EVPN/VXLAN support,IAH integrated application hosting. This spare is used for data center spine and enterprise high-speed core aggregation network upgrade & replacement.

DiagnosticSwitch no power: Check AC input voltage, PSU seating and power cable integrity. QSFP28 port link down: Verify transceiver compatibility, fiber cleanliness and DDM optical readings. Port partition failure: Confirm correct breakout configuration, port 28 cannot be split. Fan fault alarm: Check fan module seating and airflow direction matching cabinet. Stacking negotiation fail: Stack function only works on Switch Engine, confirm same firmware version for stack members. High temperature alarm: Check fan status and rack air circulation.

Product Brief7720-32C-AC-R is Extreme 7720 1U 32-port 100G QSFP28 universal switch with redundant AC power and reverse back-to-front airflow,classic spare for data center spine and enterprise core aggregation.
