Extreme Networks 5520-VIM Versatile Interface Module

Technical SpecificationsModel：5520-VIM (Series, sub-models below) Brand：Extreme Networks Product Type: Hot-pluggable versatile interface expansion module for 5520 switch platform

Available sub variants:

• 5520-VIM-4X: 4 × 1/10G SFP+ ports, non-MACsec

• 5520-VIM-4XE: 4 × 1/10G SFP+ ports, LRM & MACsec capable

• 5520-VIM-4YE: 4 ×10/25G SFP28 ports, MACsec capable

Installation: Hot pluggable, install into dedicated VIM slot on front panel of 5520 switch Max Jumbo Frame: 9216 bytes Software OS: Fabric Engine / Switch Engine Operating temperature：0℃ ~ +50℃ Weight: Approx 0.17kg (5520-VIM-4X) Status LED: Port link, module health indicator

System compatibility

5520-VIM is dedicated expansion module for all Extreme 5520 series switches, each 5520 chassis carries one VIM slot. Compatible models include 5520-48W,5520-12MW-36W,5520-48T and other 5520 platforms. Works with Extreme certified SFP+, SFP28 transceivers and DAC cables. Supports uplink and inter-switch stacking, MACsec encryption available on 4XE and 4YE versions.

Function

5520-VIM is optional high-speed expansion card for 5520 universal edge switches, used to add extra uplink or stacking ports. Users can select different VIM variants according to bandwidth requirement: 10G SFP+ for medium speed uplink or 25G SFP28 for higher bandwidth aggregation. MACsec enabled models provide hardware layer 2 encryption for secure data transmission. It expands network uplink capacity, flexible for enterprise wiring closet, campus aggregation and data center edge interconnection.

Installation

Power on 5520 switch. Use ESD protection, slide VIM module fully into VIM slot, tighten retaining screws. Insert SFP/SFP28 transceiver or DAC cable. Verify module identification and port status via ExtremeXOS CLI, configure port speed, stacking or MACsec policy as needed.

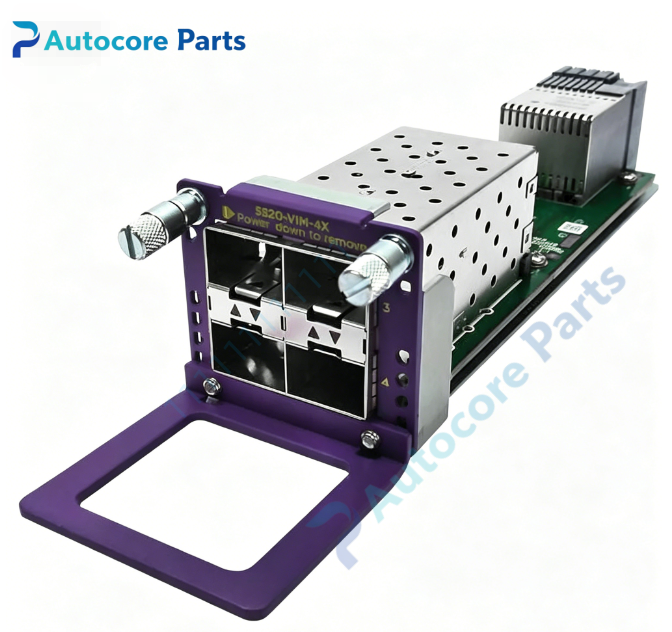

InterfaceFront panel optical slots, module status LED, edge connector to switch backplane, captive retaining screws for Extreme Networks 5520-VIM.

FeatureOriginal Extreme Networks 5520-VIM versatile interface module,hot-pluggable design,multiple port speed options,MACsec optional on selected variants,expand uplink/stack ports for 5520 series switches. This spare module is used for enterprise switch uplink expansion and network upgrade.

DiagnosticModule not detected: Confirm fully seated module, check screw tightness and firmware compatibility. Port link down: Verify transceiver/DAC compatibility, inspect fiber cleanliness and DDM optical readings. MACsec negotiation failure: Ensure matching security key configured on peer device. Port speed setting error: Run correct speed configuration command in Fabric Engine / Switch Engine. Overheat alarm: Check chassis internal airflow and fan working status.

Product Brief5520-VIM is Extreme hot-swappable versatile interface expansion module for 5520 switches,available in 10G SFP+ and 25G SFP28 versions,classic spare for uplink port expansion.
