Extreme Networks AA1404001-E6 40GBASE-LR4 QSFP+ Transceiver

Technical SpecificationsModel：AA1404001-E6 Brand：Extreme Networks (Avaya legacy part) Product Type: Hot-pluggable QSFP+ optical transceiver

Standard: 40GBASE-LR4 Wavelength: 1270/1290/1310/1330nm CWDM four lanes Fiber Type: Single-mode fiber (SMF) Max Reach: 10 km Connector: LC duplex Data Rate: 41.25 Gbps aggregate, each lane 10.3125 Gbps DDM/DOM: Digital Diagnostic Monitoring supported Power Consumption: <3.5W Operating temperature：0℃ ~ +70℃ Weight: Approx 0.04 kg Compliance: QSFP+ MSA, IEEE802.3ba

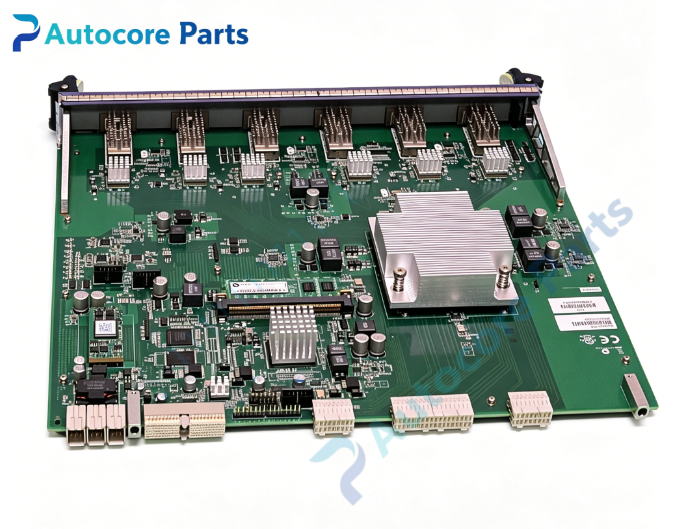

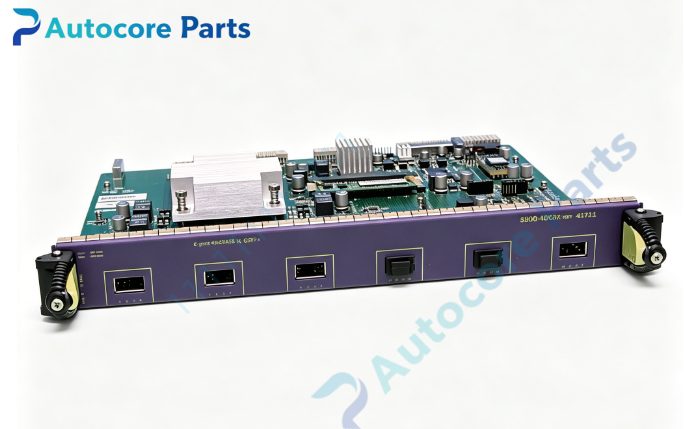

System compatibility

AA1404001-E6 is Extreme original 40G LR4 QSFP+ transceiver. Compatible with Extreme / Avaya platforms with QSFP+ slots: BlackDiamond 8900, VSP series,7100,7720 and other data center switches. Also works with MSA compliant third-party network hardware. Used for long-distance 40G single-mode fiber uplink between buildings or data center core/leaf interconnection.

Function

AA1404001-E6 long-range 40G QSFP+ optical transceiver. It converts 4-lane electrical signal from switch QSFP+ port to optical signal over single-mode fiber for 40G Ethernet transmission. Four CWDM wavelengths are integrated inside for bidirectional data transmission. DDM function can monitor real-time module temperature, transmit optical power, receive optical power and supply voltage. Widely applied for cross-building 40G uplink, medium & large data center long-distance leaf-spine interconnection.

InstallationTake ESD protection. Insert the QSFP+ module firmly into QSFP+ slot of network switch. Plug LC duplex single-mode fiber patch cord. Verify module identification and link status via switch CLI. Check optical power value by DDM command.

InterfaceLC duplex fiber port, gold edge contact pin, module status indicator for Extreme Networks AA1404001-E6.

FeatureOriginal Extreme Networks AA1404001-E6 40GBASE-LR4 QSFP+ transceiver,quad CWDM lanes,10km single-mode transmission,DDM diagnostic function,hot pluggable,MSA standard. This spare module is used for long-distance 40G single-mode fiber interconnection.

DiagnosticModule undetected: Confirm QSFP+ slot support, re-seat transceiver, check firmware compatibility. Link down: Check fiber continuity, LC connector cleaning, use single-mode fiber only. Abnormal optical power: Read DDM data, inspect laser aging and fiber attenuation. High temperature warning: Check ambient temperature of equipment cabinet.

Product BriefAA1404001-E6 is Extreme 40GBASE-LR4 QSFP+ single-mode optical transceiver,classic spare for long range 40G fiber uplink in data center and campus network.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
