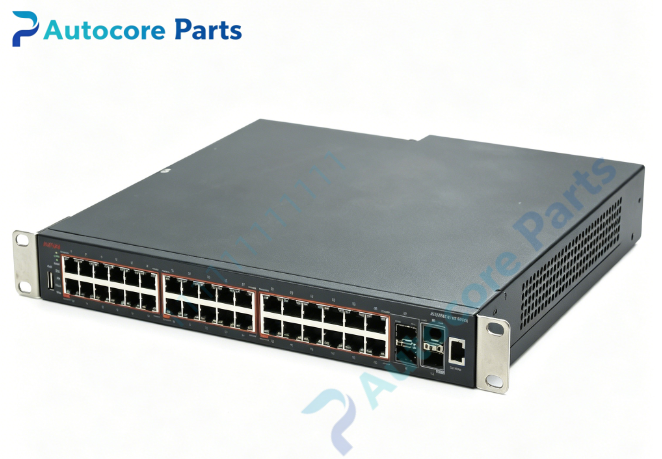

Extreme Networks AL4900A04-E6 ERS 4950GTS-PWR+ Stackable PoE Gigabit Switch

Technical SpecificationsModel：AL4900A04-E6 (ERS4950GTS-PWR+) Brand：Extreme Networks (Legacy Avaya) Product Type：1U rack mount managed Layer3 stackable PoE+ gigabit access switch

Front Ports:

• 48 × 10/100/1000BASE-T RJ45 PoE+ ports (IEEE802.3at, max 30W per port)

• 2 × 1/10G SFP+ uplink ports

• 1 × RJ45 serial console port

• 1 × USB port for firmware upgrade and file transfer

Switch Fabric: 184 Gbps Forwarding Rate: 130 Mpps Max Jumbo Frame: 9216 bytes VLAN Quantity: Up to 4094 VLANs MAC Address Table: 32K MAC entries PoE Budget: 1025W with single PSU; support dual hot-swappable AC PSU for power redundancy Power Supply: Dual modular hot-swappable PSU slots, 100-240V AC Cooling: Fixed built-in fans Software OS: ERS firmware, stackable up to 8 ERS4900 series switches Operating temperature：0℃ ~ +40℃ Mounting: Standard 19-inch 1U rack mount Weight: 6.9 kg Status LED: System, PoE power, stack ID, per-port link/activity indicators

System compatibility

AL4900A04-E6 belongs to Extreme ERS4900 series stackable access switch family. It can stack with other ERS4900 models. Compatible with Extreme/Avaya certified 10G SFP+ transceivers and DAC cables. Supports Layer2 switching and Layer3 static/dynamic routing protocols. Suitable for campus, office building PoE AP and IP camera access deployment.

Function

AL4900A04-E6 is ERS4950GTS-PWR+ high-density PoE+ gigabit access switch. 48 PoE+ ports transmit data and supply up to 30W power for wireless APs, VoIP phones and IP surveillance cameras. Two SFP+ multi-speed ports provide 1G or 10G fiber uplink to aggregation switches. It supports stack technology to combine multiple switches under unified management. Built-in rich enterprise network features including VLAN, RSTP, 802.1X authentication, LLDP and ACL. Widely used for enterprise wiring closet, hotel and campus edge PoE access networks.

Installation

Mount the switch into standard 19-inch rack. Install hot-swappable AC power supplies and connect power cords. Use console port for initial CLI configuration. Insert SFP+ transceivers or DAC cables for uplink connection. Configure stacking group, PoE power allocation, VLAN and security policies. Verify port link, PoE output and stack health after power on.

Interface48 PoE+ RJ45 gigabit ports,2 SFP+ 1/10G uplink slots,RJ45 serial console,USB port,dual PSU bays and LED indicators for Extreme Networks AL4900A04-E6.

FeatureOriginal Extreme Networks AL4900A04-E6 ERS4950GTS-PWR+ PoE+ switch,48×30W PoE+ RJ45 ports,184Gbps switching capacity,modular hot-swap PSU,stackable up to 8 units,hardware ACL and full L3 routing. This spare is used for enterprise wiring closet PoE access network maintenance and replacement.

DiagnosticSwitch no power: Check AC input voltage, PSU seating and power cable integrity. PoE port no power: Check remaining PoE budget, PoE enable status and RJ45 cable quality. SFP+ uplink link down: Verify transceiver compatibility, inspect fiber end cleanliness and DDM optical power readings. Stacking abnormal: Confirm consistent firmware version for all stack members and stacking cable integrity. Port link flapping: Inspect copper cable, connector damage and auto-negotiation configuration.

Product BriefAL4900A04-E6 is Extreme 1U ERS4900 series 48-port PoE+ stackable gigabit switch with two 10G SFP+ uplink ports,classic spare for enterprise wiring closet PoE access network.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
