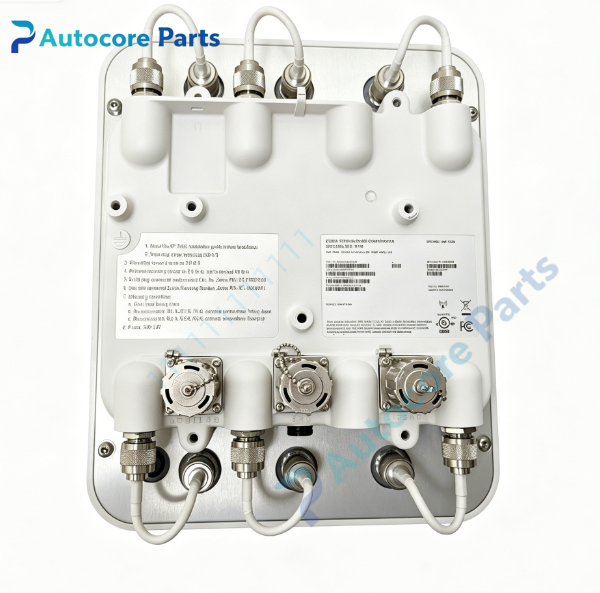

Extreme Networks AP-7562-670042-US Outdoor Wireless Access Point

Technical SpecificationsModel：AP-7562-670042-US Brand：Extreme Networks Product Type: IP67 rated outdoor dual radio wireless access point

Radio & WLAN Standard:

• 2.4GHz: 802.11n, 3×3 MIMO

• 5GHz: 802.11ac, 3×3 MIMO Total radio: 3x3:3 MIMO Antenna: Factory integrated built-in antenna (no external antenna port) Enclosure: Die-cast aluminum, IP67 weatherproof rating Ethernet Ports: 2 × 10/100/1000BASE-T GE ports PoE: GE1 supports IEEE802.3at PoE+ Management: Outdoor rated RJ45 console port Software OS: WiNG operating system, support mesh networking Security: WIPS wireless intrusion prevention, 802.1X, WPA2/WPA3 Mesh: MeshConnex dual-radio mesh support Operating temperature：-40℃ ~ +65℃ Mounting: Wall / pole mounting bracket compatible Weight: Approx 2.7 kg Regulatory: US radio frequency domain

System compatibility

AP-7562-670042-US belongs to Extreme WiNG AP7562 outdoor access point family. Managed by WiNG virtual controller or ExtremeCloud IQ. Can mesh with other WiNG series access points. Works with PoE+ network switches supporting 802.3at.

Function

AP-7562-670042-US is rugged outdoor Wi-Fi access point with factory pre-installed integrated antenna, eliminating extra antenna purchasing and assembly work. Dual radio 3x3 MIMO delivers stable 802.11ac wireless service for open-air scenarios. Dual gigabit Ethernet ports provide data uplink and redundancy. MeshConnex enables wireless mesh backhaul for sites without wired network. IP67 aluminium housing resists rain, snow, dust and extreme temperature. Widely used for parking lots, factory yards, logistics warehouses and outdoor campus wireless coverage.

InstallationComplete ESD protection. Mount AP on wall or pole with mounting hardware. Ground the device properly for lightning protection. Connect CAT5e/CAT6 cable to GE1 port and supply PoE+ power. Complete AP adoption via WiNG controller or ExtremeCloud IQ, configure WLAN, mesh and RF profile. Verify wireless signal and client access after power-up.

Interface2×GE RJ45 ports, outdoor grade RJ45 console port, ground terminal, LED status indicator for Extreme Networks AP-7562-670042-US.

FeatureOriginal Extreme Networks AP-7562-670042-US outdoor access point,IP67 die cast aluminium housing,integrated antenna,3x3:3 dual radio 802.11ac,PoE+ powered,dual gigabit ports,WiNG mesh and WIPS security. This spare AP is used for outdoor parking lot, yard and industrial site wireless coverage deployment & replacement.

DiagnosticAP fails to boot: Check PoE+ power supply, cable integrity and ground connection. No wireless SSID: Confirm AP adopted by controller, enable WLAN profile on radio. Weak signal: Verify RF transmit power and channel planning, check enclosure seal. Mesh link unstable: Reduce RF interference, adjust antenna coverage angle, check firmware consistency. High temperature alarm: Check mounting ventilation, inspect enclosure for clogging.

Product BriefAP-7562-670042-US is Extreme WiNG IP67 outdoor 3x3 MIMO 802.11ac access point with built-in antenna,classic spare for outdoor parking lot and industrial yard wireless coverage.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
