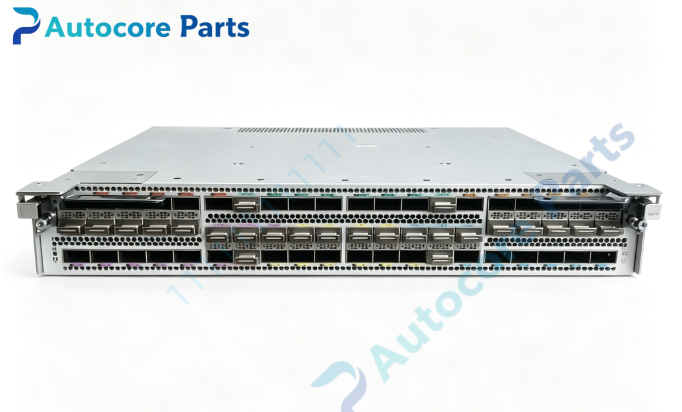

Extreme Networks BR-SLX9850-100Gx36CQ-M Interface Line Card

Technical SpecificationsModel：BR-SLX9850-100Gx36CQ-M Brand：Extreme Networks (Former Brocade) Product Type：Hot-swappable modular routing line card for SLX 9850 chassis

Port Configuration: 36 × QSFP28 flex-speed ports

• 36 ×100GbE (QSFP28 transceiver)

• 60 ×40GbE (QSFP+ transceiver, port grouping)

• 240 ×10GbE via 40G-to-10G breakout cable Front panel status LED for each port High-speed backplane connector for chassis fabric

Switch Performance: Packet buffer: 36GB per line card MAC address table: up to 750,000 MAC entries Routing table: 256,000 IPv4 routes,64,000 IPv6 routes Hardware MPLS forwarding

Software: SLX-OS, support advanced routing, EVPN, VXLAN, PTP, segment routing Hot swap: Support online insertion and removal without chassis shutdown Operating temperature：0℃ ~ +40℃ Dimension: 411mm(H) ×376mm(W) ×64mm(D) Weight: 10.02kg

System compatibility

BR-SLX9850-100Gx36CQ-M is dedicated interface line card for Extreme SLX9850-4 (4-slot) and SLX9850-8 (8-slot) modular routing chassis. QSFP28 slots compatible with 100G SR4/LR4,40G SR4/LR4 optical transceivers and breakout cables. Managed through SLX chassis management module, works with other SLX9850 line cards in the same chassis.

Function

BR-SLX9850-100Gx36CQ-M is high density flexible speed 100G line card for SLX9850 core router. 36 QSFP28 ports can be configured as 100G,40G or split into multiple 10G ports via breakout cables. It provides high-bandwidth connection for data center spine-leaf architecture, cloud interconnection and high-performance computing network. Hardware supports IPv4/IPv6, MPLS, EVPN/VXLAN to realize large-scale layer2/layer3 virtualization. Large 36GB packet buffer absorbs burst traffic and reduces packet loss.

Installation

Power on SLX9850 chassis, insert line card into empty slot, push fully until locking latch clicks. Tighten captive screws. Insert QSFP28/QSFP+ transceiver and fiber/breakout cable. Verify module detection and port status via SLX-OS CLI. Configure port speed and breakout mode according to deployment requirement.

InterfaceQSFP28 port,port status LED,chassis backplane gold finger connector for Extreme Networks BR-SLX9850-100Gx36CQ-M.

FeatureOriginal Extreme BR-SLX9850-100Gx36CQ-M hot-swappable flex-speed line card for SLX9850 chassis,36 QSFP28 ports,support 100G/40G/10G breakout,36GB large packet buffer,hardware MPLS/EVPN/VXLAN,SLX-OS operating system. This spare is used for data center high-density 100G core routing chassis port expansion.

DiagnosticModule undetected: Re-seat line card, check slot backplane connector and captive screws, verify SLX-OS firmware compatibility. QSFP28 port no link: Confirm compatible optical module/breakout cable, check fiber polarity and optical power. Breakout configuration fail: Enable breakout mode on corresponding port group, use qualified breakout cables. Buffer congestion alarm: Check traffic burst and adjust QoS scheduling. Over-temperature alarm: Inspect chassis fan tray and airflow, clean dust on line card heat sink.

Product BriefBR-SLX9850-100Gx36CQ-M is Extreme Networks hot-swappable 36-port QSFP28 flex-speed line card for SLX9850 modular router,support 100G/40G/10G breakout,classic spare for cloud and HPC data center core network expansion.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
