Extreme Networks Summit X430-24T Gigabit Ethernet Switch

Technical SpecificationsModel：X430-24T Brand：Extreme Networks Product Type：1U Rack Mount Gigabit Ethernet Switch

Front Ports:

• 24 × 10/100/1000BASE-T auto-negotiation RJ45 copper ports

• 4 × 1000BASE-X SFP uplink fiber ports

• 1 × RJ45 serial console port for local CLI management

• 1 × 10/100BASE-T out-of-band management port

Switch Fabric: 56 Gbps Forwarding Rate: 41.7 Mpps Max Jumbo Frame: 9216 bytes VLAN Quantity: Up to 4094 VLANs MAC Address Table: 16K MAC entries ACL: 512 ingress ACL rules QoS: 8 hardware priority queues per port CPU: 500MHz single core Memory: 256MB DRAM + 256MB compact flash Power Supply: Built-in fixed AC 100~240V universal input, max consumption 28.7W Redundant Power: Not supported Software OS: ExtremeXOS, minimum firmware 16.3.1, up to 16.x Operating temperature：0℃ ~ +45℃ Mounting: Standard 19-inch 1U rack mount Weight: 2.72 kg Status LED: System power, fan, per-port link/activity indicators

System compatibility

Summit X430-24T supports Extreme original 1G SFP optical transceivers for uplink slots. It supports Layer2 switching and basic static Layer3 routing. Designed for enterprise access layer deployment, can uplink to Summit X450/X460 aggregation switches. This model does not support SummitStack-V stacking.

Function

Summit X430-24T is 1U rack-mount entry-level gigabit access switch. 24 RJ45 gigabit ports connect PC, wireless AP and IP terminal devices. Four independent 1G SFP uplink ports connect to aggregation switch via fiber links. It supports VLAN segmentation, QoS traffic priority, ACL security filtering, DHCP snooping and storm control. Suitable for small office, branch network and campus access deployment.

Installation

Mount the switch into standard 19-inch rack. Connect AC power cable. Use console cable for initial CLI configuration. Insert 1G SFP transceivers into front SFP uplink ports and connect fiber patch cords. Configure VLAN, ACL and uplink parameters via ExtremeXOS CLI.

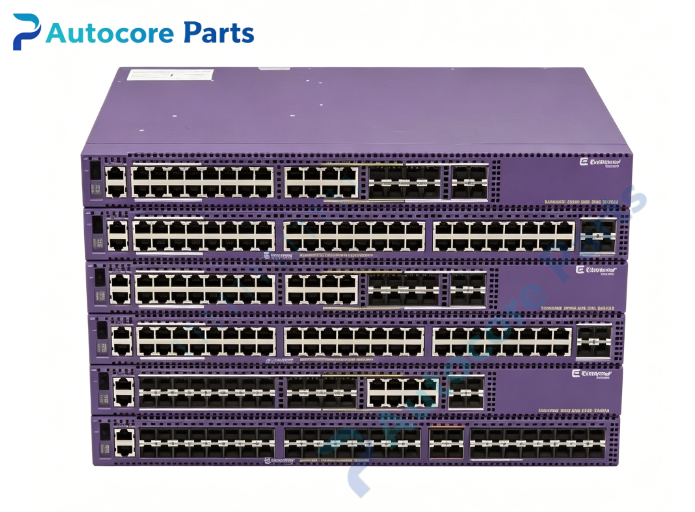

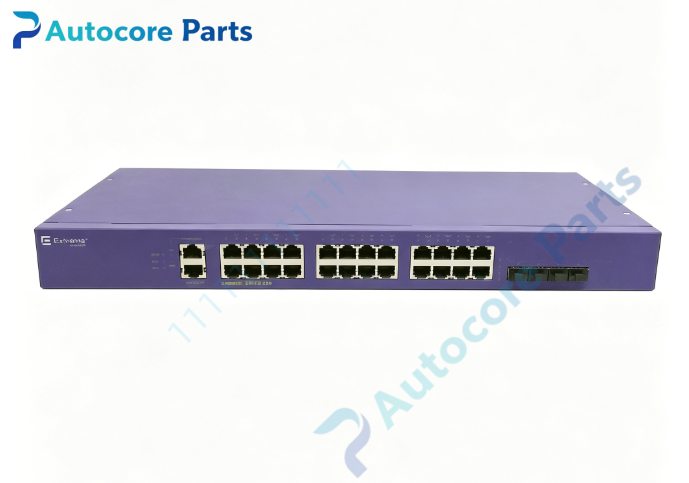

Interface24pcs RJ45 gigabit ports,4 SFP 1G uplink slots,serial console port,out-of-band management port,AC power inlet and status LED indicators for Extreme Networks X430-24T.

FeatureOriginal Extreme Networks Summit X430-24T 24-port gigabit copper switch with four 1G SFP uplink ports,L2 switching and static L3 routing,jumbo frame,QoS and ACL security control. This spare is used for enterprise branch and campus access network replacement and upgrade.

DiagnosticSwitch no power: Check AC power cable and wall socket voltage. Port link down: Verify RJ45 cable quality, auto-negotiation and peer device status. SFP uplink no link: Check SFP module recognition, fiber end face cleanliness and fiber attenuation. High CPU alarm: Check broadcast storm, review ACL and port security configuration. Temperature warning: Inspect fan running status and cabinet air ventilation.

Product BriefSummit X430-24T is Extreme Networks 24-port gigabit RJ45 switch with 4 SFP uplink ports,classic spare for enterprise branch and campus access network deployment.
