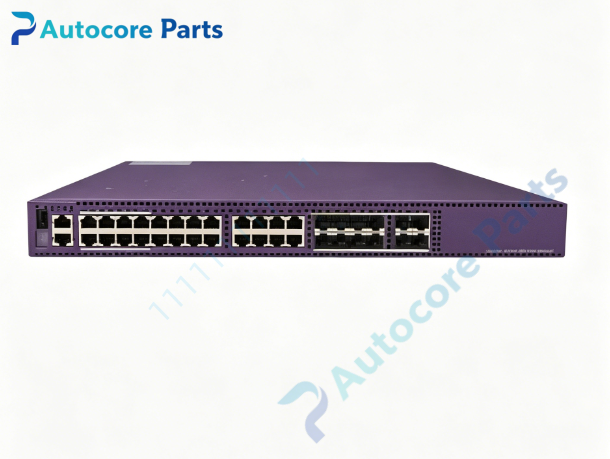

Extreme Networks Summit X460-G2-24p-10 Gigabit PoE+ Ethernet Switch

Technical SpecificationsModel：X460-G2-24p-10 Brand：Extreme Networks Product Type：1U Rack Mount Gigabit Ethernet Switch

Front Ports:

• 24 × 10/100/1000BASE-T PoE+ RJ45 copper ports (IEEE802.3af/at)

• 4 × 10GBASE-X SFP+ high-speed uplink ports (10G native, backward compatible 1G)

• 1 × RJ45 serial console port for local CLI management

• 1 × 10/100/1000BASE-T out-of-band management port

• 1 × USB 2.0 port for firmware upgrade & configuration backup

Rear Panel:

• 1 × VIM versatile interface expansion slot for additional uplink/stacking modules

• 1 × TM-CLK timing slot for SyncE / PTP clock function

• Dual modular PSU bays, hot swappable

• Hot-swappable fan tray, front-to-back or back-to-front airflow

Switch Fabric: 296 Gbps Forwarding Rate: 220.2 Mpps Max Jumbo Frame: 9216 bytes VLAN Quantity: Up to 4094 VLANs MAC Address Table: 32K MAC entries ACL: 4096 ingress ACL rules QoS: 8 hardware priority queues per port PoE Budget: Single PSU 715W; dual PSU up to 1440W full PoE+ load Software OS: ExtremeXOS Operating temperature：0℃ ~ +50℃ Mounting: Standard 19-inch 1U rack mount Status LED: System power, fan, stack ID, per-port link/activity & PoE status indicators

System compatibility

X460-G2-24p-10 belongs to Extreme X460-G2 series. Supports SummitStack-V stacking, up to 8 switch members in one stack. Compatible with Extreme original 1G SFP,10G SFP+ transceivers and DAC twinax cables. Rear VIM slot supports VIM2 series interface modules. Supports Layer2 switching and full Layer3 IP routing, OSPF, VRRP, PIM-SM multicast routing. Supports SyncE and IEEE1588 PTP timing when fitted with timing module.

Function

X460-G2-24p-10 is a 1U rack-mount high-performance PoE+ switch for enterprise access or aggregation layer. 24 PoE+ RJ45 ports supply data and power for wireless AP, IP camera and VoIP phones. Four native 10G SFP+ ports provide high-bandwidth uplink to core network and can be used as SummitStack-V stacking links. The rear VIM slot can expand extra 10G or 40G ports. It supports advanced QoS, VLAN segmentation, ACL security filtering, Fabric Attach automated device authentication and broadcast storm control, widely deployed for campus wireless, IP monitoring and medium enterprise network.

Installation

Mount the switch into standard 19-inch equipment rack. Install power supplies and fan tray. Connect AC power cable. Use console cable for initial CLI configuration. Insert SFP/SFP+ transceivers into front SFP+ slots and connect fiber or DAC cables. Install VIM module on rear VIM slot after power-off if extra uplink ports are required. Configure SummitStack-V stacking parameters when multiple switches form stack cluster.

Interface24 PoE+ RJ45 gigabit ports,4 SFP+ 10G slots,serial console port,out-of-band management port,USB port,rear VIM expansion slot,TM-CLK timing slot,dual PSU bays,fan tray and status LED indicators for Extreme Networks X460-G2-24p-10.

FeatureOriginal Extreme Networks X460-G2-24p-10 24-port PoE+ gigabit switch,4 native 10G SFP+ uplink ports,rear VIM expansion slot,hot-swappable power supply and fan tray,SummitStack-V stacking,L2/L3 forwarding,jumbo frame,PoE+ power management,SyncE and PTP timing support,ACL and QoS policy control. This spare is used for enterprise wireless access and aggregation network replacement and upgrade.

DiagnosticSwitch no power: Check AC input power cable and voltage, inspect PSU seating and LED status. PoE port no power: Check PoE power budget, port priority configuration and cable quality. SFP+ port link down: Verify SFP+ module compatibility, fiber cleanliness and optical attenuation. Stacking failure: Confirm stacking port SummitStack-V mode, stacking cable integrity and stack member ID. High temperature alarm: Inspect fan tray running status, dust buildup and cabinet airflow condition.

Product BriefX460-G2-24p-10 is Extreme Networks 24-port PoE+ gigabit stackable switch with 4×10G SFP+ uplink and rear VIM expansion slot,classic spare for enterprise wireless and IP camera access & aggregation network.
