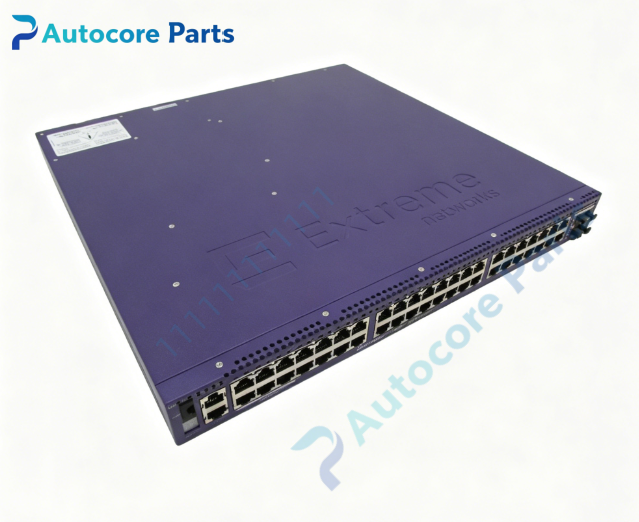

Extreme Networks Summit X460-G2-48t-GE Gigabit Ethernet Switch

Technical SpecificationsModel：X460-G2-48t-GE Brand：Extreme Networks Product Type：1U Rack Mount Gigabit Ethernet Switch

Front Ports:

• 48 × 10/100/1000BASE-T auto-sensing RJ45 copper ports

• 4 × 1000BASE-X SFP fiber uplink ports

• 1 × RJ45 serial console port for local CLI management

• 1 × 10/100/1000BASE-T out-of-band management port

• 1 × USB 2.0 port for firmware upgrade & configuration backup

Rear Panel:

• 1 × VIM versatile interface expansion slot for additional uplink/stacking modules

• 1 × TM-CLK timing slot for SyncE / IEEE1588 PTP clock synchronization

• Dual modular PSU bays, hot swappable

• Hot-swappable fan tray, support front-to-back or back-to-front airflow

Switch Fabric: 296 Gbps Forwarding Rate: 220.2 Mpps Max Jumbo Frame: 9216 bytes VLAN Quantity: Up to 4094 VLANs MAC Address Table: 32K MAC entries ACL: 4096 ingress ACL rules QoS: 8 hardware priority queues per port CPU & Memory: 1GHz 64-bit MIPS,1GB ECC DDR3,4GB eMMC Flash Power Input: 100~264VAC universal input,50/60Hz Redundant Power: Dual hot-swappable PSU for HA redundant operation Software OS: ExtremeXOS Operating temperature：0℃ ~ +50℃ Mounting: Standard 19-inch 1U rack mount Status LED: System power, fan, stack ID, per-port link/activity indicators

System compatibility

X460-G2-48t-GE belongs to Extreme X460-G2 series. Supports SummitStack-V virtual stacking, up to 8 switch members in one stack. Compatible with Extreme original 1G SFP transceivers for front uplink slots, rear VIM slot supports VIM2 series interface modules. Supports Layer2 switching and full Layer3 IPv4/IPv6 routing, OSPF, VRRP and multicast routing. SyncE and PTP timing function available when timing module is installed.

Function

X460-G2-48t-GE is a 1U rack-mounted high-density gigabit switch for enterprise access or aggregation layer. 48 auto-sensing gigabit RJ45 ports connect PCs, servers and wireless access points. Four fixed 1G SFP uplink ports connect to core switch via fiber links. The rear VIM slot can expand extra 10G/40G high-speed ports. It supports VLAN segmentation, advanced QoS, ACL security filtering, Fabric Attach automated device authentication and broadcast storm control, widely deployed for campus network, branch office and medium enterprise wired aggregation.

Installation

Mount the switch into standard 19-inch equipment rack. Install power supplies and fan tray. Connect AC power cable. Use console cable for initial CLI configuration. Insert 1G SFP transceivers into front SFP slots and connect fiber patch cords. Power off chassis before installing rear VIM expansion module, wear ESD anti-static wrist strap and tighten captive screws. Configure SummitStack-V stacking parameters for multi-switch cluster.

Interface48pcs RJ45 gigabit ports,4 SFP 1G uplink slots,serial console port,out-of-band management port,USB port,rear VIM expansion slot,TM-CLK timing slot,dual PSU bays,fan tray and status LED indicators for Extreme Networks X460-G2-48t-GE.

FeatureOriginal Extreme Networks X460-G2-48t-GE 48-port gigabit copper switch,4×1G SFP uplink ports,rear VIM expansion slot,hot-swappable power supply and fan tray,SummitStack-V stacking,L2/L3 forwarding,jumbo frame,SyncE and PTP timing support,ACL and QoS policy control. This spare is used for enterprise campus high-density access and aggregation network replacement & upgrade.

DiagnosticSwitch no power: Check AC input power cable and voltage, inspect PSU seating and LED status. Port link down: Verify RJ45 cable quality, auto-negotiation setting and peer device state. SFP uplink no link: Check SFP module compatibility, fiber end face cleanliness and optical attenuation. Stacking failure: Confirm stacking port SummitStack-V working mode, stacking cable integrity and stack member ID. High temperature alarm: Check fan tray operation, dust accumulation and cabinet airflow condition.

Product BriefX460-G2-48t-GE is Extreme Networks 1U stackable 48-port gigabit RJ45 switch with 4×1G SFP uplink and rear VIM expansion slot,classic spare for enterprise high-density access & aggregation network.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
