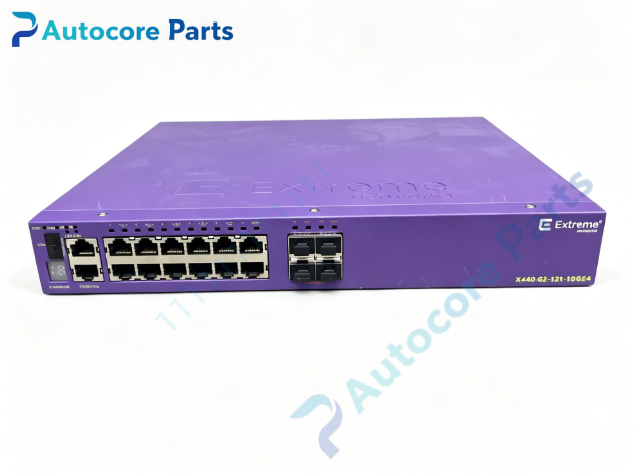

Extreme Networks X440-G2-12t-10GE4 Gigabit Managed Switch

Technical SpecificationsModel：X440-G2-12t-10GE4 Brand：Extreme Networks Product Type：1U rackmount / desktop Layer2/Layer3 managed switch

Ports:

• 12 ×10/100/1000BASE-T auto-sensing RJ45 copper ports

• 4 ×SFP+ multi-rate slots (default 1G, software license unlock 10G capability; transceivers sold separately)

• 1 ×10/100/1000BASE-T out-of-band management port

• 1 ×RJ45 serial console port

• 1 ×USB 2.0 management port

• Rear redundant power supply connector, compatible with RPS-90

Switching capacity：68Gbps Forwarding rate：50Mpps MAC address table：16000 entries IPv4 LPM：480 entries IPv6 LPM：240 entries Jumbo frame：9216 bytes OS：ExtremeXOS Stacking：Supports stacking within X440-G2 family; two of the SFP+ ports can be assigned as stacking ports

Power & fan：Built-in 90W AC power supply, variable speed smart fans, front-to-back airflow Operating temperature：0℃ ~ +50℃ Storage temperature：-40℃ ~ +70℃ Relative humidity：10%~95%, non-condensing Weight：3.1kg

System compatibility

X440-G2-12t-10GE4 belongs to Extreme X440-G2 enterprise edge switch family. Compatible with Extreme validated 1G SFP and 10G SFP+ optical transceivers. Managed via local CLI / web GUI and ExtremeCloud IQ. Widely used for branch office, small wiring closet, factory workshop access network spare replacement.

Function

X440-G2-12t-10GE4 is compact non-PoE Layer3 stackable access switch. 12 gigabit RJ45 ports connect local network terminals. Four rear SFP+ ports work as 1G fiber uplink by default, and can be upgraded to 10G after activating license; two ports can be configured for stacking. It supports static & dynamic routing, VLAN, STP/RSTP/MSTP, Fabric Connect, LACP link aggregation, ACL, QoS and multicast protocols. It monitors port link state, optical DDM parameters, system temperature and fan health, and generates hardware fault alarms. Used for small branch office edge networks.

Installation

Mount the switch on standard 19-inch 1U rack or deploy on desktop. Connect AC power cord. Insert SFP/SFP+ transceivers and fiber patch cords. Connect console port for initial configuration, license activation and stacking setup. Verify boot,port link and routing function before commissioning.

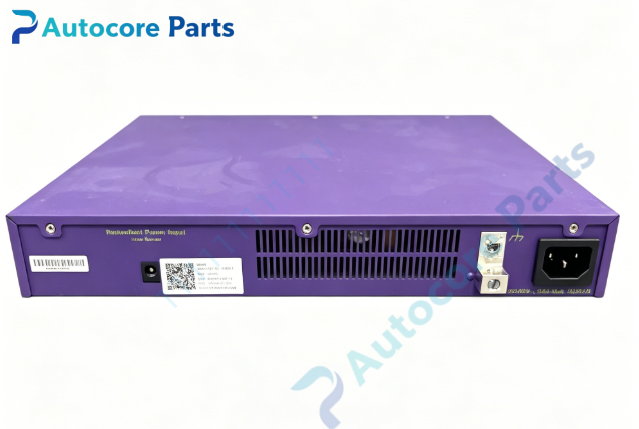

Interface12×1G RJ45 copper ports,4×SFP+ 1G/10G upgradable slots,out-of-band management port,RJ45 serial console,USB management port,port status LEDs,stack ID indicator,reset button,RPS connector,AC power inlet,ground terminal,rack mounting ears for Extreme Networks X440-G2-12t-10GE4.

FeatureOriginal X440-G2 compact 1U rackmount Layer3 stackable non-PoE switch,12×1G copper ports plus 4×license-upgradable 10G SFP+ uplink slots,ExtremeXOS OS,support Fabric Connect,external redundant power supply option,smart fan cooling,built-in optical DDM diagnostic function. This spare fits small branch and workshop network maintenance and upgrade.

DiagnosticSwitch fails to boot: Check AC power input and power supply health. Copper port link down: Inspect RJ45 cable quality and auto-negotiation settings. SFP+ port no link: Verify optical transceiver,fiber cable and peer device configuration. Low optical power alarm: Dirty fiber endfaces or damaged fiber cables. Transceiver undetected: Confirm Extreme compatible optical module and correct insertion. 10G port disabled: Check valid 10G port license activation status. Over-temperature alarm: Check fan operation and cabinet ventilation,clean dust buildup. Stack group split: Verify stacking cable and matched ExtremeXOS firmware version.

Product BriefX440-G2-12t-10GE4 is Extreme Networks X440-G2 series 1U rackmount Layer3 stackable managed switch with 12×10/100/1000BASE-T ports and 4×SFP+ uplink ports (10G licensed),classic spare part for small enterprise branch edge network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
