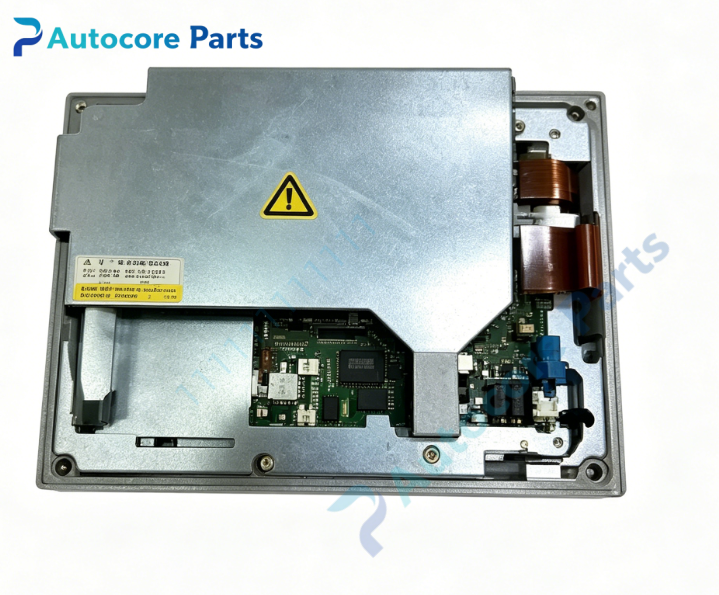

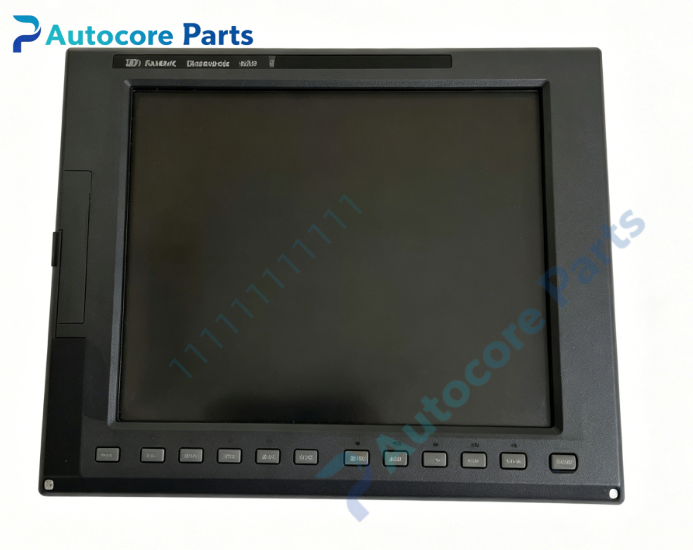

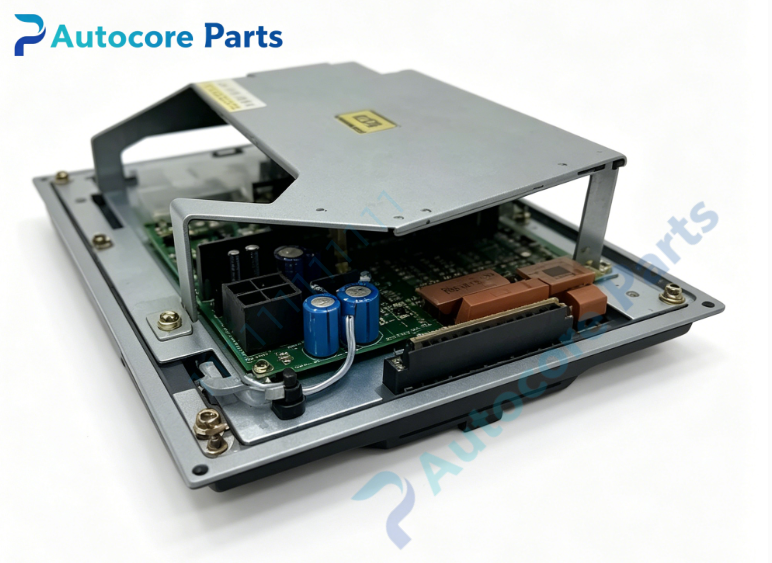

FANUC 10.4 Inch Color LCD Display Unit P/N A02B-0265-C071

Technical Specifications

Model:A02B-0265-C071

Brand:FANUC

System compatibility:10.4-inch color TFT LCD display unit for FANUC Series16i-M CNC system. Installed on machine operating console,communicates with CNC main controller via dedicated signal cable. Widely used on machining centers and CNC lathes equipped with 16i-M CNC.

Function:Independent color LCD display panel with integrated soft function keys. Color TFT screen displays axis coordinates,NC programs,system parameters and alarm information. Front soft keys for menu selection and function operation. Separate display design,MDI keypad needs to be matched separately. Connects to CNC main unit by dedicated CNC signal cable.

Installation:Embedded panel cut-out mounting on machine operator console,dedicated rear signal connector for wiring.

Interface:

‑Dedicated CNC communication port for CNC main unit

‑Front panel soft function keys

‑LCD driving signal terminals

‑24VDC power connector

‑Front LED working status indicators

Circuit feature:Color LCD drive circuit,soft key matrix scanning circuit,signal surge protection,non-volatile memory for panel configuration.

Feature:Legacy discontinued FANUC 16i-M display unit. This panel only includes color display and soft keys,without MDI keyboard. Common faults:backlight aging,dark screen,soft key contact failure. Confirm CNC host model version before replacement.

Diagnostic:Screen shows CNC boot screen and alarm codes when powered. Backlight damage will lead to dark display;soft key failure causes abnormal menu operation.

Power supply:24VDC

Protection class:IP65 front panel;IP20 rear terminal area

Horizontal operating temperature:0℃ ~ +55℃

Storage temperature:-20℃ ~ +80℃

Relative humidity:5%‑90% non‑condensing

Vibration:Complies with machine tool industrial environmental requirement

Weight:2.13kg

Dimensions:285mm ×210mm ×60mm

Certification:CE

Built‑in function

A02B-0265-C071 10.4-inch color LCD unit acts as HMI display for FANUC Series16i-M CNC system. Operators monitor real-time axis status,view NC programs and read system alarm messages. Widely used for CNC machine tool operator cabinet spare‑part replacement.

Product Brief

A02B-0265-C071 belongs to FANUC 16i-M series spare parts family,10.4 inch color TFT LCD panel with soft keys. This unit does not contain MDI keypad. Verify CNC system model before ordering. Check signal cable and 24V power supply during commissioning. Widely applied for CNC equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
