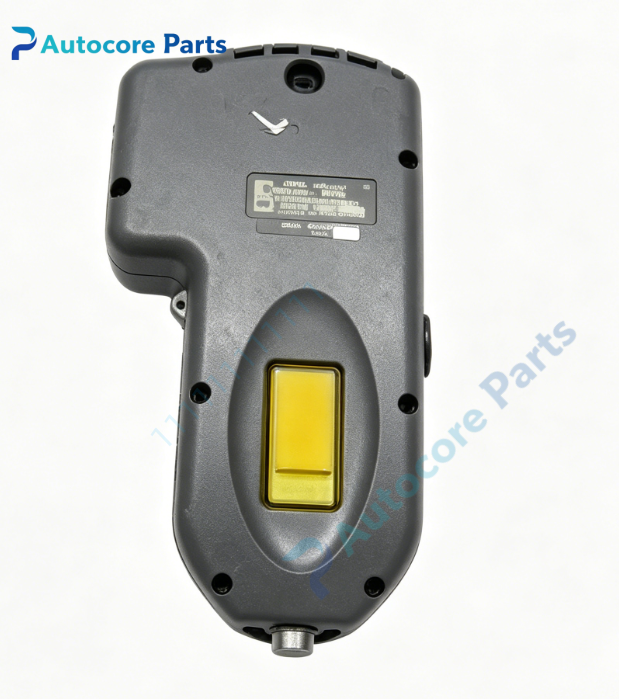

FANUC Handy Handheld Operator Panel P/N A02B-0259-C221#A

Technical Specifications

Model:A02B-0259-C221#A

Brand:FANUC

System compatibility:Handheld handy operator pendant for FANUC CNC systems. Equipped with manual pulse generator(MPG handwheel),used for manual jog,axis positioning and on-site teaching on machining centers,CNC lathes. #A is hardware variant code,confirm CNC system compatibility before replacement.

Function:Portable handheld teaching operator unit. Built-in manual pulse generator for fine axis movement,keypad for function selection,red emergency stop pushbutton,enable deadman switch. Operators move each axis manually during workpiece setup and tool alignment. Communicates with CNC controller via dedicated cable.

Installation:Hand-held portable design,connect to CNC main unit by dedicated signal cable.

Interface:

‑Dedicated CNC signal cable connector

‑Manual pulse generator(MPG handwheel)

‑Enable deadman switch

‑Emergency stop button

‑Function keys and axis selection switch

‑LED working status indicators

Circuit feature:MPG pulse encoding circuit,deadman safety control circuit,E-stop hardwired safety signal,surge signal protection.

Feature:Legacy FANUC handheld pendant. Common faults:MPG encoder wear,cable breakage,deadman switch failure or emergency stop malfunction. Different suffix variants have different internal hardware configurations.

Diagnostic:CNC HMI will show alarm when enable switch or E-stop is faulty;MPG damage causes no axis jog movement when rotating handwheel.

Power supply:24VDC

Protection class:IP54

Horizontal operating temperature:0℃ ~ +55℃

Storage temperature:-20℃ ~ +80℃

Relative humidity:5%‑90% non‑condensing

Vibration:Complies with machine tool industrial environmental requirement

Weight:0.65kg

Dimensions:220mm ×130mm ×60mm

Certification:CE

Built‑in function

A02B-0259-C221#A handy handheld operator panel is used for manual jogging and teaching operation of FANUC CNC machine tools. Operators adjust workpiece position and perform tool setting by rotating MPG handwheel. Widely used for CNC machine tool spare‑part replacement.

Product Brief

A02B-0259-C221#A belongs to FANUC handheld teaching pendant family,with MPG handwheel and emergency stop. #A suffix defines hardware variant,verify CNC host model before ordering. Inspect handwheel cable,enable switch and E-stop function during commissioning. Widely applied for CNC equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
