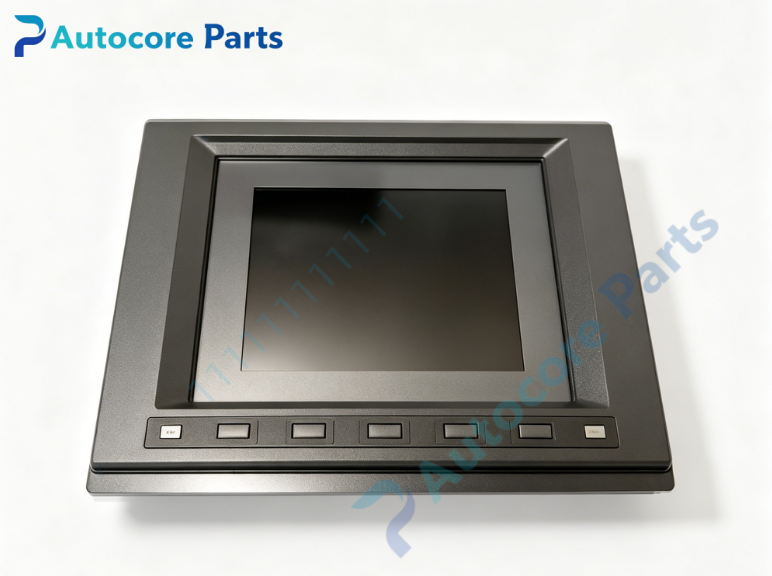

FANUC 9.5 Inch Mono Separate Type LCD Unit P/N A02B-0200-C115

Technical Specifications

Model:A02B-0200-C115

Brand:FANUC

System compatibility:9.5-inch monochrome separate LCD display unit for FANUC Series16,Series18,Series21 and Power Mate i CNC systems. Installed on machine operation console,connects to CNC main controller via dedicated signal cable. Applied to old machining centers and CNC lathes equipped with above CNC systems.

Function:Independent LCD display unit with built-in soft function keys. Monochrome LCD screen displays axis coordinates,NC part programs,system parameters and alarm codes. Soft keys for menu selection and function switching. It is separate design,MDI keypad needs to be purchased separately. Communicates with CNC mainboard by dedicated CNC signal cable.

Installation:Embedded panel cut-out mounting on machine operator console,20-pin dedicated signal connector for wiring.

Interface:

‑Dedicated CNC communication port for CNC main unit

‑Front panel soft function keys

‑LCD driving signal terminals

‑20 pin Honda signal connector

‑24VDC power connector

‑Front LED status indicators

Circuit feature:LCD drive circuit,soft key scanning matrix,signal surge protection,non-volatile memory for panel configuration.

Feature:Discontinued legacy FANUC display unit. This is only display with soft keys,without MDI keypad. Common faults:backlight aging,dark screen,soft key malfunction. Verify CNC system version before replacement.

Diagnostic:Screen shows CNC boot information and alarm codes when powered. Backlight failure causes no image on screen;soft key damage results in menu operation failure.

Power supply:24VDC

Protection class:IP65 front panel;IP20 rear terminal area

Horizontal operating temperature:0℃ ~ +50℃

Storage temperature:-20℃ ~ +70℃

Relative humidity:5%‑90% non‑condensing

Vibration:Complies with machine tool industrial environmental requirement

Weight:1.73kg

Dimensions:240mm ×190mm ×55mm

Certification:CE,UL

Built‑in function

A02B-0200-C115 9.5-inch monochrome LCD unit acts as independent HMI display for FANUC Series16/18/21 CNC system. Operators monitor machine axis status,check NC programs and read system alarm messages. Widely used for CNC machine tool operator cabinet spare‑part replacement.

Product Brief

A02B-0200-C115 belongs to FANUC A02B-0200 series spare parts family,9.5 inch separate monochrome LCD panel with soft keys. This unit does not include MDI keyboard. Confirm CNC host model before ordering. Check 20pin signal connector and 24V power wiring during commissioning. Widely applied for CNC equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
