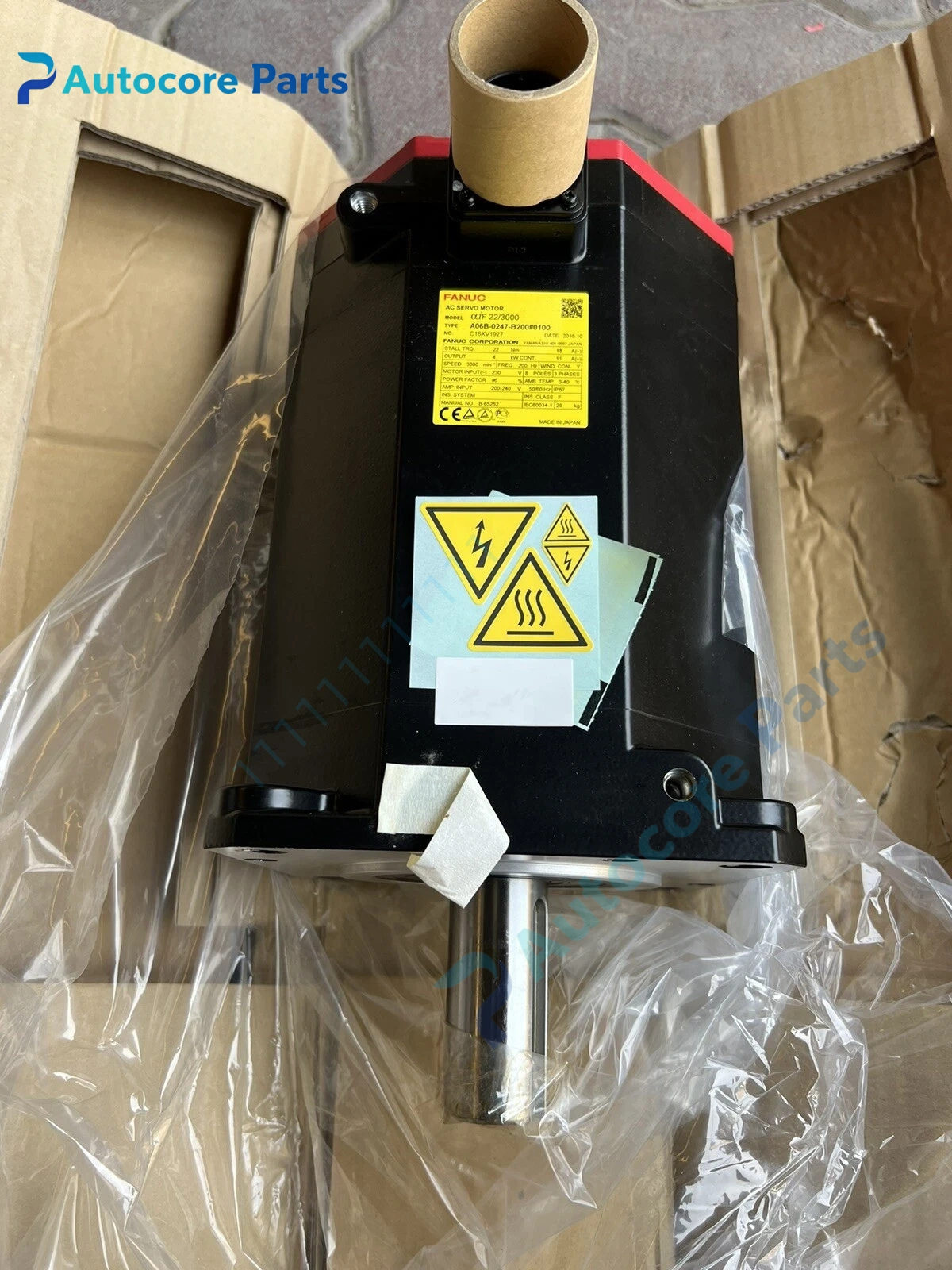

FANUC A06B-0247-B200#0100 αiF22/3000 Servo Motor Unit

Module Feature

A06B-0247-B200#0100 belongs to FANUC αi-B series medium inertia servo motor, model αiF22/3000.

It adopts keyed straight shaft structure, sealed housing design, suitable for machine tool workshop with coolant splash and dust environment. Integrated high-resolution serial pulse encoder, supports high precision position and speed closed-loop control. Good acceleration performance, stable low-speed running, overload capacity for cutting impact load. It needs to be used together with FANUC αi series servo amplifier, widely stocked as maintenance spare for machining center, lathe and grinding machine feed axis.

Working principle

The servo amplifier outputs three-phase sine current to the motor stator winding.

Permanent magnet rotor rotates under magnetic field coupling, the built-in encoder feeds back rotor position and speed signal to amplifier in real time. The drive adjusts output current and voltage continuously according to position command, to realize rapid positioning, constant speed and follow control. Built-in temperature sensor monitors winding temperature, trigger overload alarm when temperature exceeds threshold.

Onboard components

Permanent magnet rotor, stator winding, high resolution serial pulse coder, temperature thermal sensor, keyed output shaft, front oil seal, power connector, encoder signal connector and aluminum motor housing.

LED indicators

No indicator on motor body; alarm information and speed/position data are displayed on servo amplifier HMI.

Hardware self‑diagnosis

Temperature detection inside motor; encoder signal fault, overload, overheat and wiring fault diagnosis are completed by matched FANUC servo amplifier. Parameter tuning and alarm diagnosis are completed by FANUC LADDER-III / SERVO GUIDE software.

Programming softwareSERVO GUIDE, used for motor parameter auto identification, vibration filter tuning, gain adjustment and alarm record analysis.

Electrical & Process Parameters

Model:A06B-0247-B200#0100 Brand:FANUC Device type:αiF22/3000 medium inertia AC servo motor Function:Precision position and speed control for CNC machine tool feed axis

Mechanical & Structure

Mounting:Flange mounting Protection class:IP67 (sealed version) Housing:Aluminum alloy motor housing

Environmental

Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing

Certification:CE Status:Original FANUC CNC servo spare

Installation

Cut off servo drive power before replacement. Align flange mounting hole, connect power cable and encoder cable correctly, run motor auto identification, test JOG operation and positioning accuracy after commissioning.

Interface

Servo power connector, encoder feedback connector.

Diagnostic

Overheat alarm: Long time overload, cooling deterioration. Encoder alarm: Encoder cable break, encoder damage. Vibration abnormal: Gain mismatch, mechanical resonance, coupling loose.

Product BriefA06B-0247-B200#0100 motor, FANUC αiF22 3000RPM medium inertia servo spare for CNC machine feed axis replacement.
