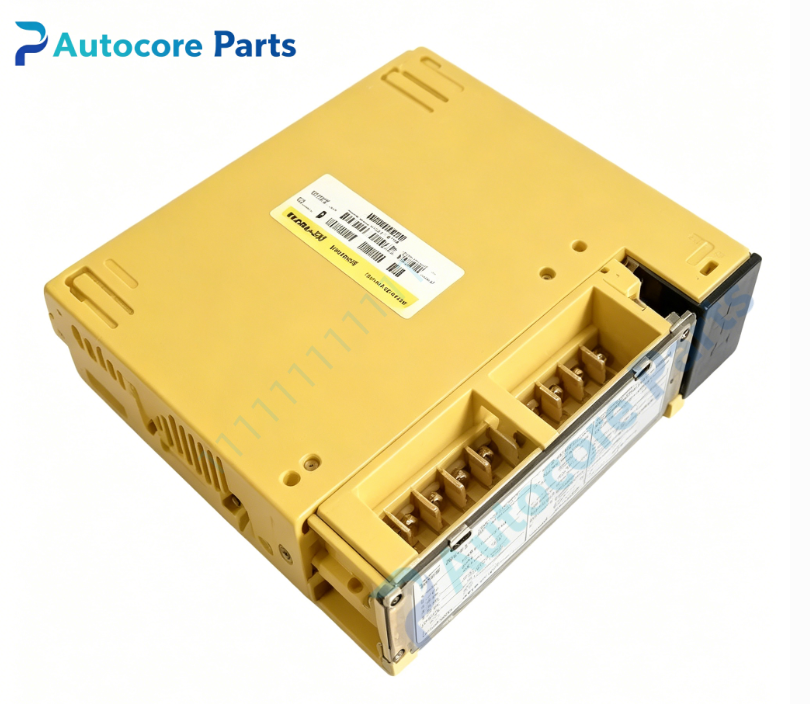

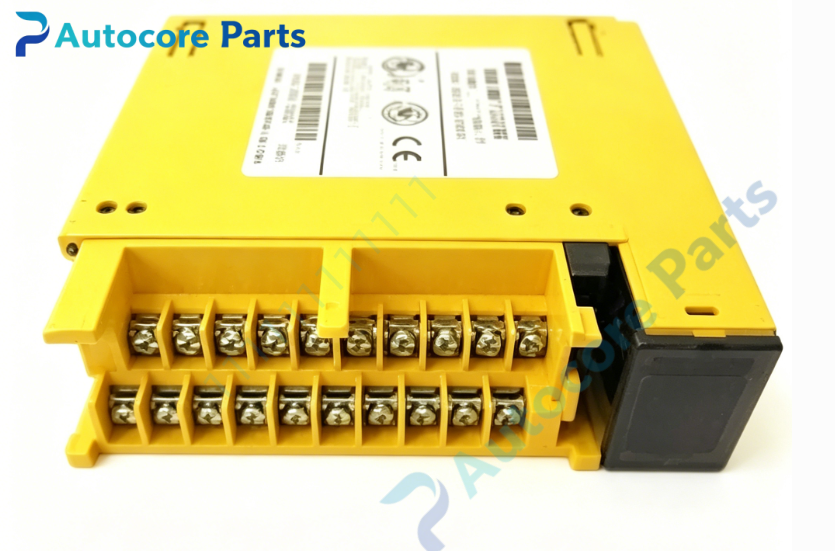

FANUC AOD08D 8PT DC Digital Output Module P/N A03B-0807-C152#D

Technical Specifications

Model:A03B-0807-C152#D

Brand:FANUC

System compatibility:AOD08D 8-point DC digital output module for FANUC Series16i,Series18i,Series21i CNC systems. Installed on A03B-0807 series I/O base rack. Widely used on CNC lathes and vertical machining centers.

Function:8-channel negative digital output module. Output 24VDC control signals to drive external actuators,solenoid valves,relays and indicator lamps. Transmits CNC control commands from main controller to machine peripheral components. #D is hardware variant suffix defining internal circuit configuration.

Installation:Plug-in module for FANUC I/O base rack,terminal block for field wiring.

Interface:

‑CNC backplane bus connector

‑8 channels 24VDC negative output terminals

‑LED status indicator for each channel

‑Terminal block for field wiring

Circuit feature:Output drive circuit,over-current protection per channel,signal surge suppression,short-circuit protection.

Feature:Discontinued legacy FANUC I/O module. Negative (sink) output type. Common faults:output channel burnout,terminal corrosion,intermittent output failure. Must confirm suffix #D and base rack model before replacement.

Diagnostic:LED indicators show each channel status;short circuit or over-load will trigger channel protection alarm in CNC system.

Power supply:12‑24VDC,max total output current 2A

Protection class:IP20

Horizontal operating temperature:0℃ ~ +55℃

Storage temperature:-20℃ ~ +80℃

Relative humidity:5%‑90% non‑condensing

Vibration:Complies with machine tool industrial environmental requirement

Weight:0.37kg

Dimensions:130mm ×85mm ×30mm

Certification:CE,UL

Built‑in function

A03B-0807-C152#D AOD08D 8-point DC output module receives CNC logic commands and outputs 24VDC sink signals to control machine peripheral actuators. Widely used for CNC machine control cabinet spare‑part replacement.

Product Brief

A03B-0807-C152#D belongs to FANUC A03B series I/O spare parts family,AOD08D 8-channel negative DC output module. Verify I/O base rack and CNC system before ordering. Check terminal wiring and short-circuit condition during commissioning. Widely applied for CNC equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
