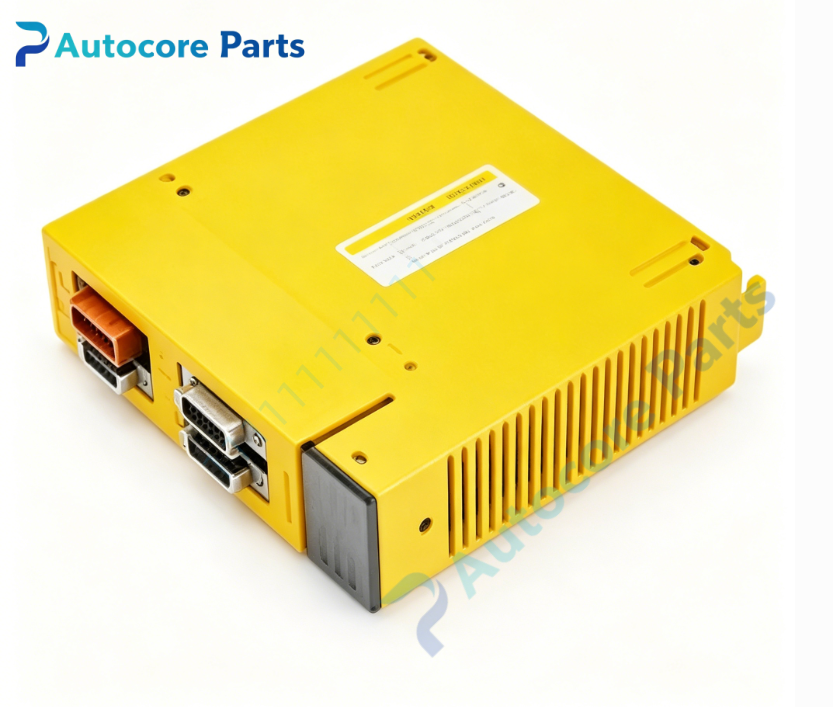

FANUC I/O Interface Module P/N A03B-0807-C011

Technical Specifications

Model:A03B-0807-C011

Brand:FANUC

System compatibility:2-slot I/O base interface module for FANUC Series16i,Series18i,Series21i CNC systems. Installed inside CNC electrical cabinet,used for mounting various I/O expansion cards. Widely applied on CNC lathes,vertical machining centers.

Function:I/O base rack unit. Provides hardware slot and signal bus for FANUC digital input/output expansion boards. Realizes signal exchange between CNC main controller and machine peripheral switches,sensors and solenoid valves. Supports external 24VDC I/O signal collection and output driving.

Installation:DIN rail mounting inside electric cabinet,screw terminal block for field wiring.

Interface:

‑CNC bus communication connector

‑2 expansion slots for I/O card installation

‑24VDC power terminal block

‑Digital signal wiring terminals

‑LED channel status indicators

Circuit feature:Internal bus transmission circuit,signal surge protection,over-current protection for each I/O channel.

Feature:Legacy FANUC I/O base rack,only the base unit without I/O cards. Before replacement,confirm CNC system model and matched I/O card types. Common faults:bus contact failure,power supply burnout.

Diagnostic:CNC system shows I/O communication alarm when fault occurs;LED indicators show channel working condition.

Power supply:24VDC

Protection class:IP20

Horizontal operating temperature:0℃ ~ +55℃

Storage temperature:-20℃ ~ +80℃

Relative humidity:5%‑90% non‑condensing

Vibration:Complies with machine tool industrial environmental requirement

Weight:0.62kg

Dimensions:150mm ×95mm ×42mm

Certification:CE,UL

Built‑in function

A03B-0807-C011 I/O base module serves as signal interface between FANUC CNC host and machine field components. It carries I/O expansion boards to collect sensor signals and output control signals to actuators. Widely used for CNC machine control cabinet spare‑part replacement.

Product Brief

A03B-0807-C011 belongs to FANUC A03B series I/O spare parts family,2-slot I/O base rack unit. This base does not include input/output cards. Verify CNC system and matching I/O modules before ordering. Check bus connector and 24VDC wiring during commissioning. Widely applied for CNC equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
